| Quantity: | |
|---|---|
Isuzu
CD-Z25KVA/20KW

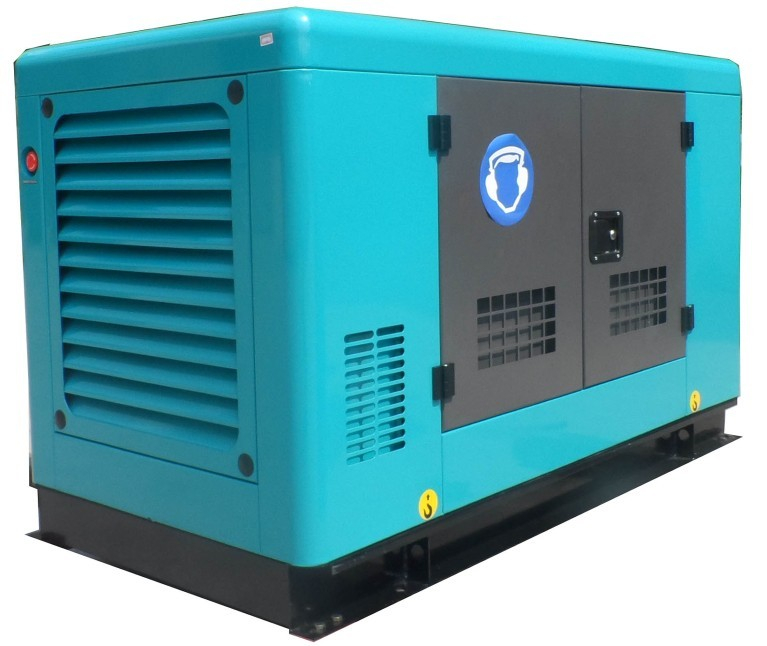

| Generator Set Model | CDZ-20kw/25kva |
| Generator Set Power | 20kw/25kva |
Generator Powered by ISUZU Engine | |
Diesel Engine Model | 4JB1 |
Engine Characters | Water-cooled, in line, 4-cycle, direct injection, 1800rpm |
| Bore x Stroke (mm) | 93x102 |
| Rated Output | 28kw/35kva |
| Fuel Consumption (g/kw.hr) | ﹤262 |
| Lube Consumption (g/kw.hr) | ﹤2.72 |
| Compression Ratio | 2.771L |
| Starting | Electric (12V) |
| ALTERNATOR MODEL | Stamford copy 184E(three phase),184G(single phase) |
| Rated Power | 20kw/25kva |
| Voltage (V) | 220/380,220, 240 |
| Current (A) | 12.1 |
| Frequency (Hz) | 60 |
| Power Factor (cos￠) | 0.8/1 |
| Brush/Brushless | Brushless |
| Dimensions (LxWxH) mm | S: 1700x960x1060 |
| Gross Weight (KGS) | 600 |
| 20FT | 12 PCS |
| Generator Set Model | CDZ-20kw/25kva |
| Generator Set Power | 20kw/25kva |
Generator Powered by ISUZU Engine | |
Diesel Engine Model | 4JB1 |
Engine Characters | Water-cooled, in line, 4-cycle, direct injection, 1800rpm |
| Bore x Stroke (mm) | 93x102 |
| Rated Output | 28kw/35kva |
| Fuel Consumption (g/kw.hr) | ﹤262 |
| Lube Consumption (g/kw.hr) | ﹤2.72 |
| Compression Ratio | 2.771L |
| Starting | Electric (12V) |
| ALTERNATOR MODEL | Stamford copy 184E(three phase),184G(single phase) |
| Rated Power | 20kw/25kva |
| Voltage (V) | 220/380,220, 240 |
| Current (A) | 12.1 |
| Frequency (Hz) | 60 |
| Power Factor (cos￠) | 0.8/1 |
| Brush/Brushless | Brushless |
| Dimensions (LxWxH) mm | S: 1700x960x1060 |
| Gross Weight (KGS) | 600 |
| 20FT | 12 PCS |
