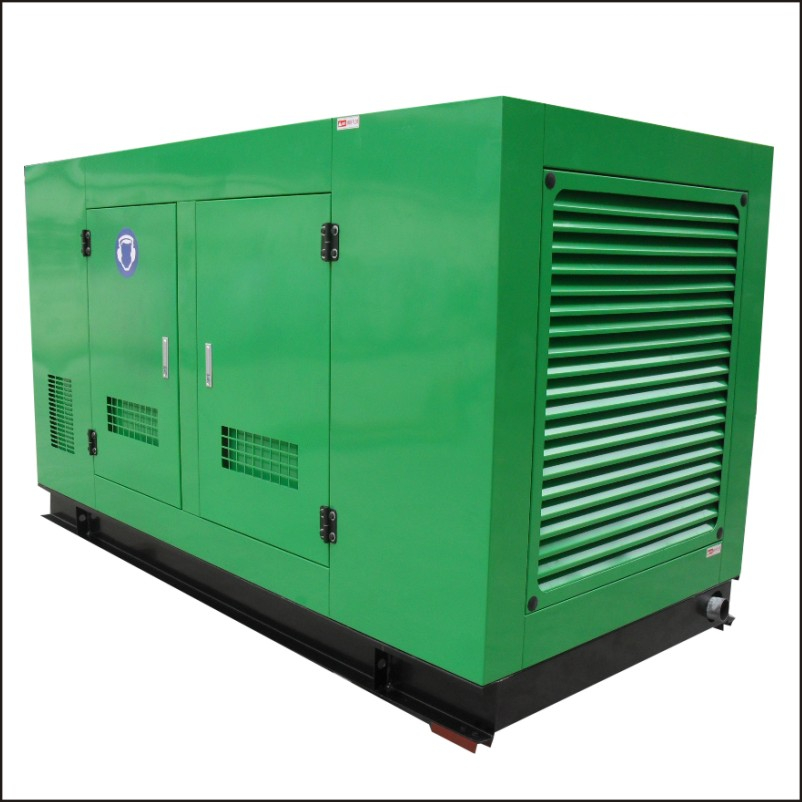

MODEL | CD-C105kw/131KVA |
Powered by Cummins Engine | |
Prime Power (60HZ) | 105kw/131KVA |
Standby Power (60HZ) | 115kw/145kva |
Power Factor | 0.8 (Lagging) |
Phase Wires | 3-phases 4-Wires |
Start Model | Electric |
Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
Engine Model | Cummins 6BTA5.9-G2 |
Cylinders | 6 |
Cylinder Arrangement | L |
Bore x Stroke(mm) | 102X 120 |
Compression Ratio | 17.5:1 |
Speed | 1800rpm |
Cooling Method | Water – cooled |
Starting Method | 24V DC electrical start |
25% Full Load Diesel Consumption (L/H) | 7.3 |
50% Full Load Diesel Consumption (L/H) | 12.5 |
75% Full Load Diesel Consumption (L/H) | 18.2 |
100% Full Load Diesel Consumption (L/H) | 28 |
Engine Displacement (L) | 5.9 |
Inspiration (L) | Natural |
Lube Volume (L) | 14.3 |
Coolant Volume (L) | 25 |
Noise (Db) | ≤ 80 |
Alternator Model | Stamford Type Leateck LTG 274FA |
Alternator Power | 105kw/131KVA Brushless with AVR |
Voltage | 230/400 V 220/127v |
Protection | IP23 |
Voltage Regulation | ±4% |
Insulation Class | H |
Voltage Control | AVR |
Net Weigh (KGS) | 1400 |
Dimensions (L x W x H) mm | 2600*1000*1700 |
Optional | ATS (auto transfer switch) |
| Battery Charger |
| Base fuel tank (for open type) |
