88KW Telecom Standby — Perkins 1104C-44TAG2 for BTS and ICT Infrastructure Emergency Power

The CDP110KVA is Jiuan Generator's 110KVA Perkins diesel generator for telecom and ICT infrastructure emergency standby — delivering 88KW/110KVA ISO8528 ESP for cellular BTS sites, telecom switching centres, campus server rooms, and edge data facilities where grid failure must be bridged once UPS battery autonomy is exhausted. The integrated 260L fuel tank and DSE7320 or ComAp AMF25 controller enable automatic start and ATS transfer within 15 seconds of mains failure detection.

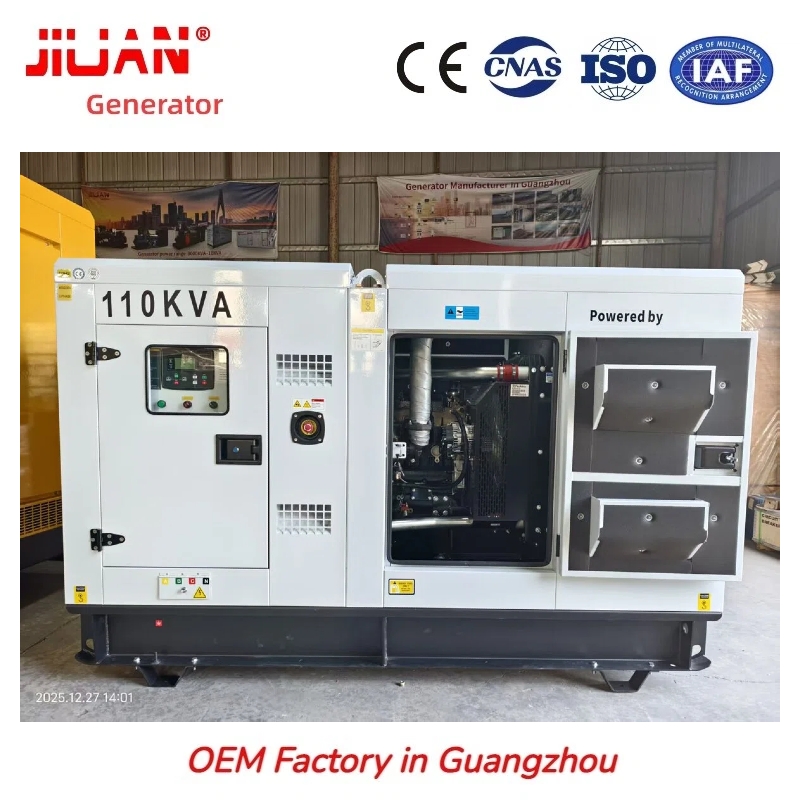

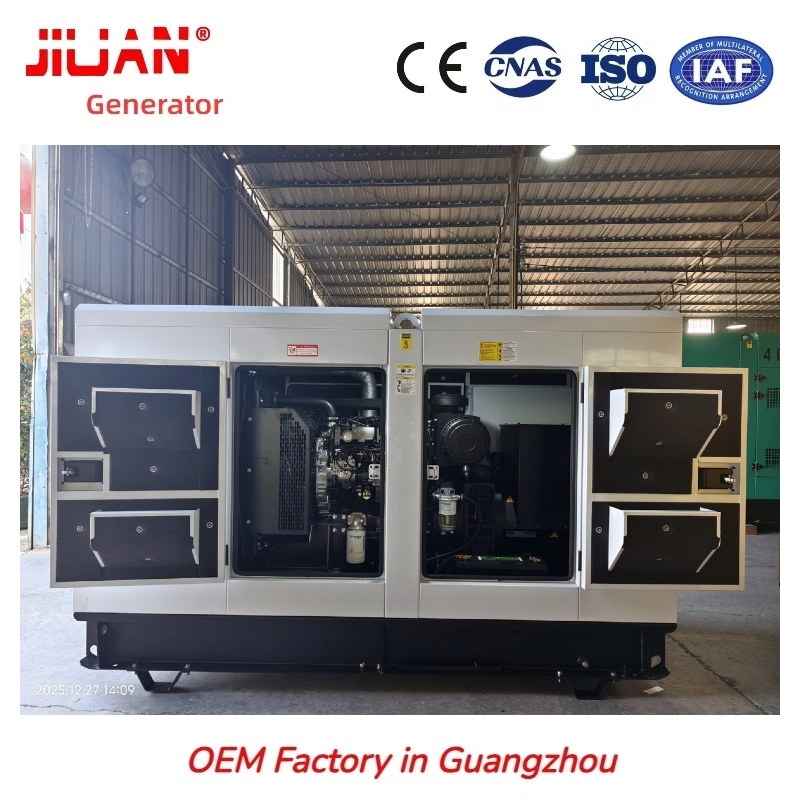

The Perkins 1104C-44TAG2 diesel genset engine is a four-cylinder, 4.4L turbocharged and air-to-air intercooled diesel with 105mm × 127mm bore and stroke and 18.2:1 compression ratio. Air-to-air aftercooling increases combustion air density for stable rated output at lower exhaust temperatures. Fuel consumption across the prime load band: 26.9 L/h at full prime, 20.2 L/h at 75% prime, 14.1 L/h at 50% prime — supporting 8-10 hours on the 260L tank. EU Stage II / EPA Tier 2 certified for global telecom infrastructure export.

In telecom deployments, the 88KW emergency standby generator CDP110KVA operates in ISO8528 ESP mode — engaging only when mains grid supply fails beyond UPS battery autonomy. The AMF controller cranks and loads the generator within 15 seconds of mains loss. THD below 5% across all loads protects SMPS rectifiers, DC bus converters, and BTS power modules from harmonic distortion. The brushless synchronous alternator holds ±1% voltage regulation at 400V/50Hz for stable DC bus charging throughout the standby event.

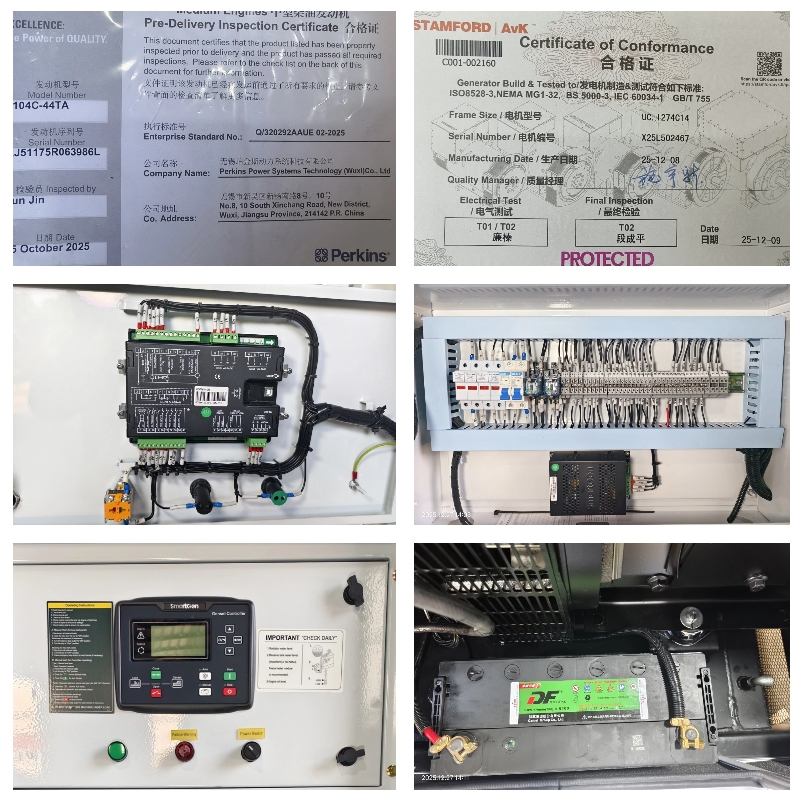

The 110KVA telecom backup power CDP110KVA DSE7320 or ComAp AMF25 controller supports RS-485 / MODBUS RTU — enabling direct integration with telecom SCADA, network operations centre dashboards, and building management systems. An optional 4G IoT module delivers real-time alarm notifications, run-hour logging, and fuel-level alerts at unmanned BTS tower and remote data room sites. A dedicated ATS transfer switch cabinet coordinates mains-to-generator changeover with full return-to-mains logic and engine cool-down cycle management.

The Perkins 1104 four-cylinder genset CDP110KVA 1104C-44TAG2 engine follows a 500-hour planned maintenance schedule for oil and filter service — aligned with annual maintenance cycles that telecom tower operators schedule at remote sites. Compact dimensions of 2600×1100×1600mm and 1700kg weight fit standard plant rooms without floor reinforcement. Genuine Perkins 1104C parts are available at authorized service centres globally. Jiuan Generator provides an 18-month or 2,000-hour warranty on all CDP110KVA units.

Technical Specifications

5 Core Competitive Advantages

1. AMF Auto-Start — ATS Transfer Within 15 Seconds of Mains Failure
The 88KW emergency standby generator CDP110KVA AMF controller detects grid failure and cranks to rated frequency and voltage within 15 seconds — completing ATS transfer ahead of battery UPS depletion and maintaining continuous DC supply to BTS equipment racks and telecom switching nodes without service interruption.

2. THD <5% and ±1% Voltage Regulation for Telecom Rectifiers
The 110KVA Perkins diesel generator CDP110KVA air-to-air intercooled 1104C-44TAG2 and brushless synchronous alternator maintain THD below 5% and voltage regulation within ±1%, protecting SMPS rectifiers and DC bus converters from harmonic distortion that increases heat loading and reduces efficiency at BTS and switching centre power systems.

3. RS-485 MODBUS Integration with SCADA and NOC
The Perkins 1104C-44TAG2 diesel genset CDP110KVA DSE7320 or AMF25 controller supports RS-485 / MODBUS RTU for direct SCADA and NOC integration. The optional 4G IoT module delivers alarm notifications, run-hour logs, and fuel-level monitoring at unmanned remote BTS tower sites and distributed telecom locations.

4. 260L Tank — Up to 10 Hours Grid-Off Autonomy at Telecom Sites
The 110KVA telecom backup power CDP110KVA 260L integrated tank supports 8-10 hours of standby operation at full prime load — a full business-day buffer at BTS tower sites and edge data rooms. Extended fuel tank options are available for high-outage-frequency grid regions in Africa, South Asia, and Southeast Asia.

5. 1700kg Compact Footprint — Retrofit Without Floor Reinforcement
The Perkins 1104 four-cylinder genset CDP110KVA weighs 1700kg with 2600×1100mm base footprint — fitting standard plant rooms at telecom buildings, campus ICT suites, and mid-rise commercial facilities without floor-loading upgrades. Anti-vibration mounts fitted as standard reduce structural transmission during standby engine run cycles.

Application Scenarios

The CDP110KVA 88KW emergency standby generator serves the following telecom and ICT infrastructure standby applications:

• Cellular BTS / 4G / 5G base stations — standby for radio equipment, baseband units, and site cooling
• Telecom switching centres — emergency backup for PSTN/IP switching and transmission nodes
• Campus IT and network equipment rooms — standby for servers, storage, and core switches
• Edge computing and co-location micro-racks — grid backup beyond UPS battery autonomy
• Healthcare diagnostic imaging — standby for MRI, CT, and digital X-ray equipment
• Pharmaceutical cold chain — emergency power for refrigerated storage and processing lines

OEM Customization Service

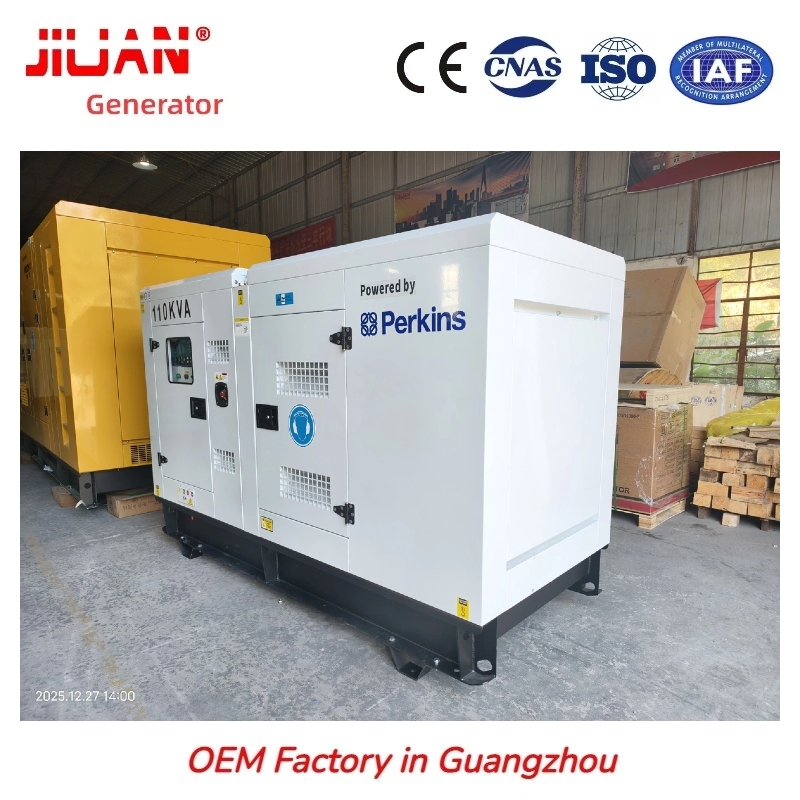

Jiuan Generator provides OEM configuration for the CDP110KVA Perkins 1104C-44TAG2 diesel genset. Options include super silent canopy in custom RAL color, DSE7320 or AMF25 with RS-485 / MODBUS, 4G IoT monitoring module, ATS cabinet, and extended fuel tank for sites in high-outage-frequency grid regions. All units use genuine Perkins 1104C parts and pass a full-load factory burn-in test before dispatch.

FAQ

Q: How does the CDP110KVA integrate with a telecom ATS system?
A: The 110KVA Perkins diesel generator CDP110KVA uses DSE7320 or ComAp AMF25 with a dedicated ATS transfer switch cabinet. On mains failure, the AMF starts the engine and commands ATS changeover once the genset reaches rated frequency and voltage — typically within 15 seconds, ahead of UPS battery depletion at BTS and data room sites.

Q: What is the fuel autonomy of CDP110KVA at a typical telecom BTS site?
A: The 110KVA telecom backup power CDP110KVA consumes 26.9 L/h at full prime load with a 260L tank, providing approximately 9.5 hours autonomy. At a typical BTS site load of 60-70% prime, autonomy extends to 12-13 hours — sufficient to cover most overnight grid outage scenarios without fuel replenishment.

Q: What remote monitoring capabilities does CDP110KVA offer for unmanned sites?
A: The Perkins 1104 four-cylinder genset CDP110KVA DSE7320 or AMF25 supports RS-485 / MODBUS RTU for SCADA integration. The optional 4G IoT module provides real-time alarm push notifications, run-hour logs, fuel-level alerts, and remote start/stop commands via mobile app or NOC API — enabling centralized management of multiple unmanned BTS tower sites.
