160KW Hotel, Campus, and Civic Building ATS Standby — HPCR ≤198g/kWh, ESN-Traceable, PICC-Insured

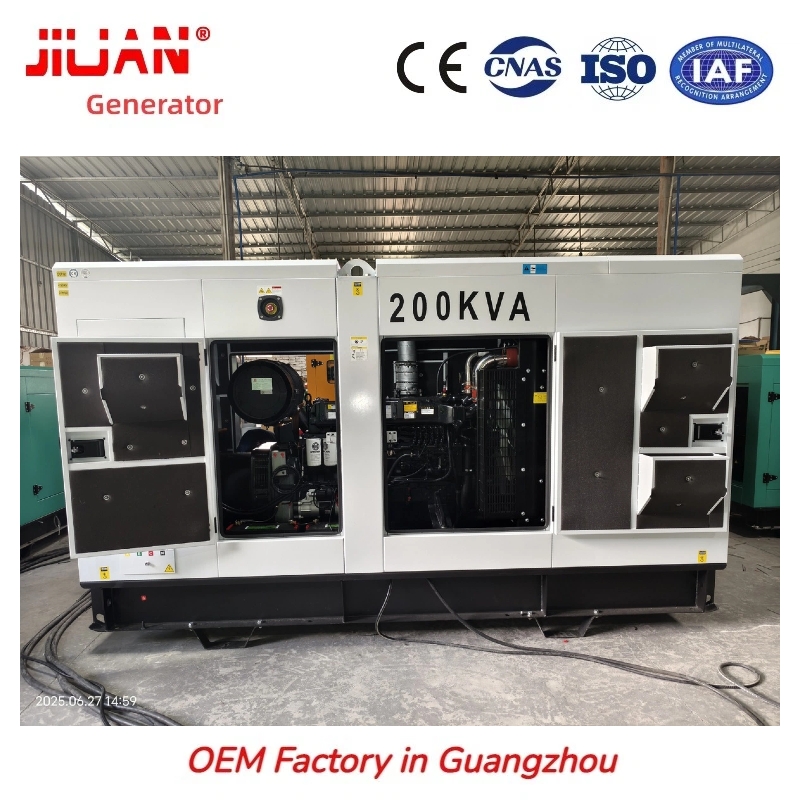

The CDW200KVA is Jiuan Generator's 200KVA Weichai diesel generator for hotel, university campus, and civic building ATS emergency standby — applications where municipal grid provides normal supply and the generator exists to cover outage events. The Weichai WP10D200E200 six-cylinder high-pressure common rail diesel delivers 160KW/200KVA ISO8528 PRP prime and 176KW/220KVA standby, with ATS auto-start within 3-5 seconds restoring lifts, HVAC, and emergency lighting without manual intervention.

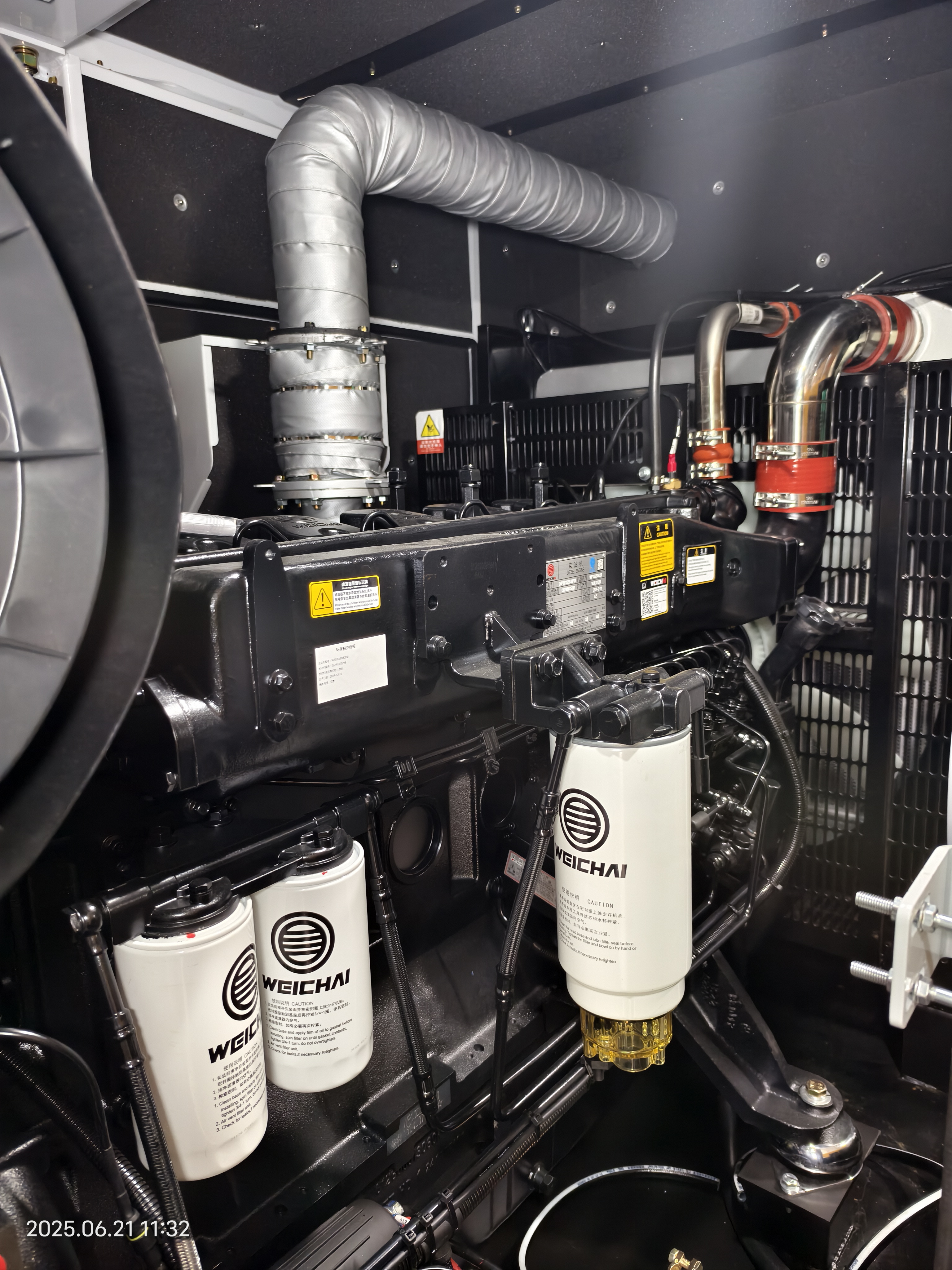

The Weichai WP10D200E200 genset engine is an inline six-cylinder turbocharged and intercooled diesel with 9.726L displacement, 126×130mm bore and stroke, 17:1 compression ratio, and high-pressure common rail injection with ECU speed control. Specific fuel consumption is ≤198g/kWh at full prime load — reducing fuel cost per standby event for hotel and campus facilities where the generator accumulates dozens of annual running hours across grid outage incidents.

The 160KW standby power generator CDW200KVA all-copper brushless synchronous alternator is H-class insulated with ±1% steady-state and ±15% transient voltage regulation, protecting hotel HVAC compressors, hospital imaging equipment, and campus server rooms from switching transients during ATS transfer. The SmartGen or DSE ATS controller detects grid failure within seconds and restores full building supply before elevator safety systems trigger an emergency halt.

The 200KVA hotel backup generator CDW200KVA canopy is fabricated from 3.0mm cold-rolled steel with 60mm flame-retardant sound insulation and eight high-damping rubber shock absorbers, achieving ≤72dB(A) at 7m — within EU residential noise limits for hotel-adjacent and urban campus installations. Each CDW200KVA carries warranty coverage underwritten by PICC (People's Insurance Company of China), with air-freight warranty parts delivered worldwide in 3-5 days for rapid resolution at active building standby installations.

The Weichai WP10 silent generator CDW200KVA undergoes full pre-shipment verification: each unit carries a unique traceable ESN (Engine Serial Number) and is load-bank tested at staged steps — 0%-25%-50%-75%-full load and 110% overload — with test video and PDF load analysis report delivered with every shipment. Jiuan Generator provides an 18-month or 2,000-hour warranty. The 5-language 150-page maintenance manual and 3D disassembly animation CD reduce installation barriers for facility staff at overseas hotel and campus sites.

Technical Specifications

5 Core Competitive Advantages

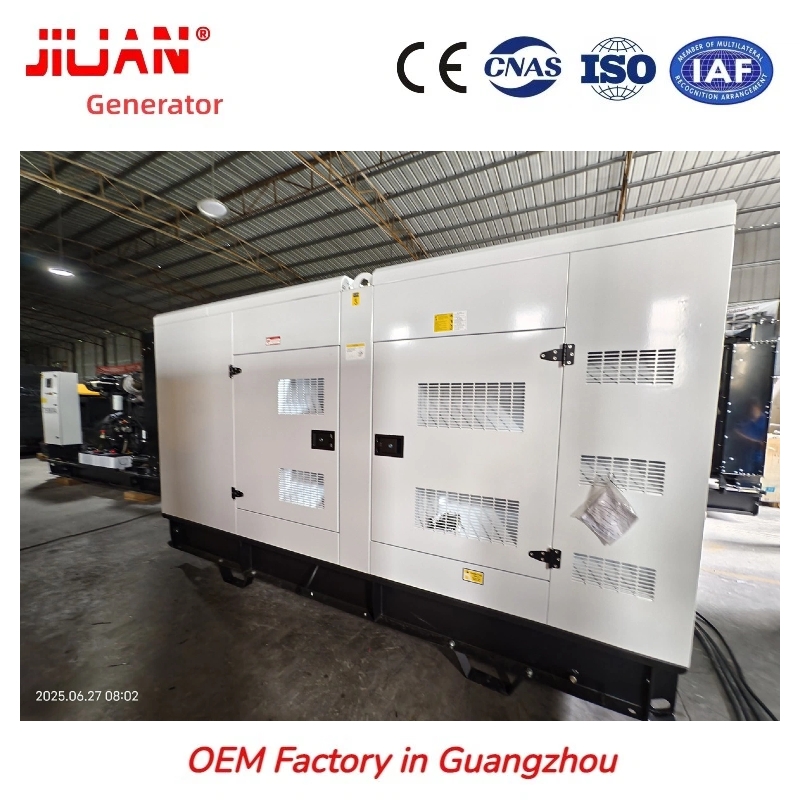

1. HPCR ≤198g/kWh Fuel Economy — Minimising Annual Standby Fuel Cost Over the Generator's Service Life
The Weichai WP10D200E200 genset CDW200KVA high-pressure common rail injection system achieves ≤198g/kWh specific fuel consumption — for hotel and campus facilities accumulating 50-100 annual standby running hours, this translates to meaningful long-term fuel savings versus older mechanical injection alternatives. Over a 10-15 year building service life, HPCR fuel efficiency directly reduces total standby power lifecycle cost.

2. ESN Traceability + PICC Insurance — Verifiable Quality Assurance for Facility Procurement Compliance
Every 160KW standby power generator CDW200KVA carries a unique traceable ESN (Engine Serial Number) and is load-bank tested at staged steps — 0%-25%-50%-75%-full load and 110% overload — before shipment. Test video and PDF load analysis report are delivered with every unit. Warranty is underwritten by PICC (People's Insurance Company of China), with air-freight parts dispatch worldwide in 3-5 days.

3. 3.0mm Steel Canopy + 8 Shock Absorbers — ≤72dB for Hotel Basement and Urban Building Plant Rooms
The 200KVA Weichai diesel generator CDW200KVA 3.0mm cold-rolled steel canopy, 60mm flame-retardant sound insulation, and eight high-damping rubber shock absorbers achieve ≤72dB(A) at 7m. This performance allows installation in hotel basement generator rooms, campus plant rooms, and urban building mechanical floors without exceeding local environmental noise ordinances adjacent to occupied spaces.

4. ATS 3-5 Second Auto-Start — Hotel Lifts and HVAC Restored Before Occupants Notice the Outage
The 200KVA hotel backup generator CDW200KVA SmartGen or DSE ATS controller issues an engine start command within 3-5 seconds of grid failure — restoring supply to hotel lifts, HVAC compressors, emergency lighting, and kitchen refrigeration before occupants reach the stairwell. After grid recovery, the controller executes a cooling delay then shuts down automatically without requiring generator room attendance.

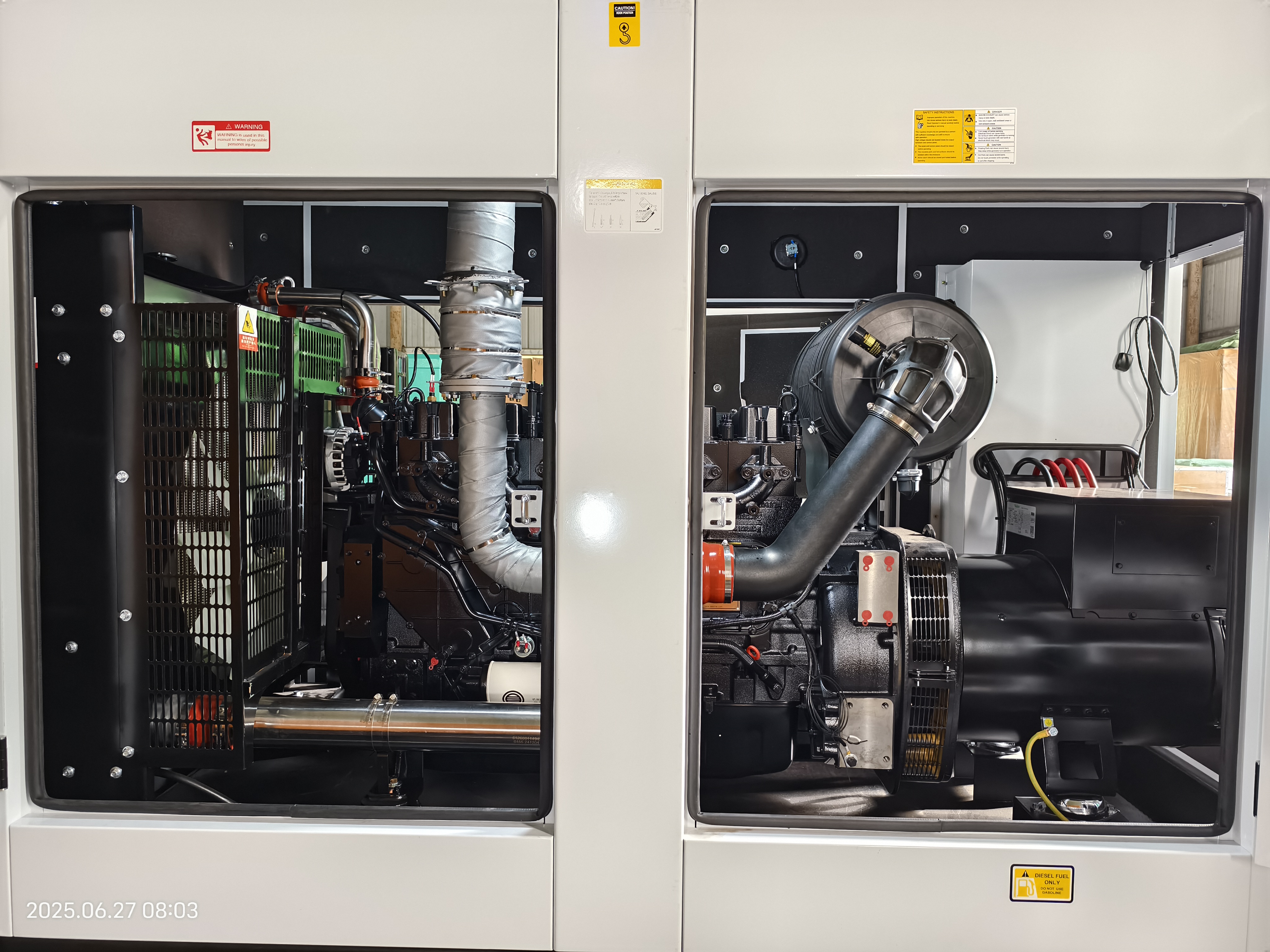

5. 5-Language Manual + 3D Exploded Views — Compliant Documentation for Overseas Facility Management
The Weichai WP10 silent generator CDW200KVA ships with a 150-page maintenance manual in five languages (Chinese, English, Spanish, French, Russian), electrical wiring diagrams, a 3D disassembly animation CD, and 3D rendered exploded views of all spare parts — meeting the documentation requirements of overseas hotel and campus facility management teams and satisfying local authority inspection records.

Application Scenarios

The CDW200KVA 160KW standby power generator serves the following applications:

• Hotel and resort complex ATS standby — 160KW covers lifts, HVAC, emergency lighting, and kitchen refrigeration during grid outage
• University campus and school compound standby — dormitory blocks, laboratories, data centre, and sports facility supply
• District hospital and medical centre standby — operating equipment, ICU, pharmacy refrigerators, and communication systems
• Large shopping mall emergency standby — escalators, security, refrigeration displays, and HVAC
• Municipal water treatment and pump station standby — continuous process supply during grid interruptions

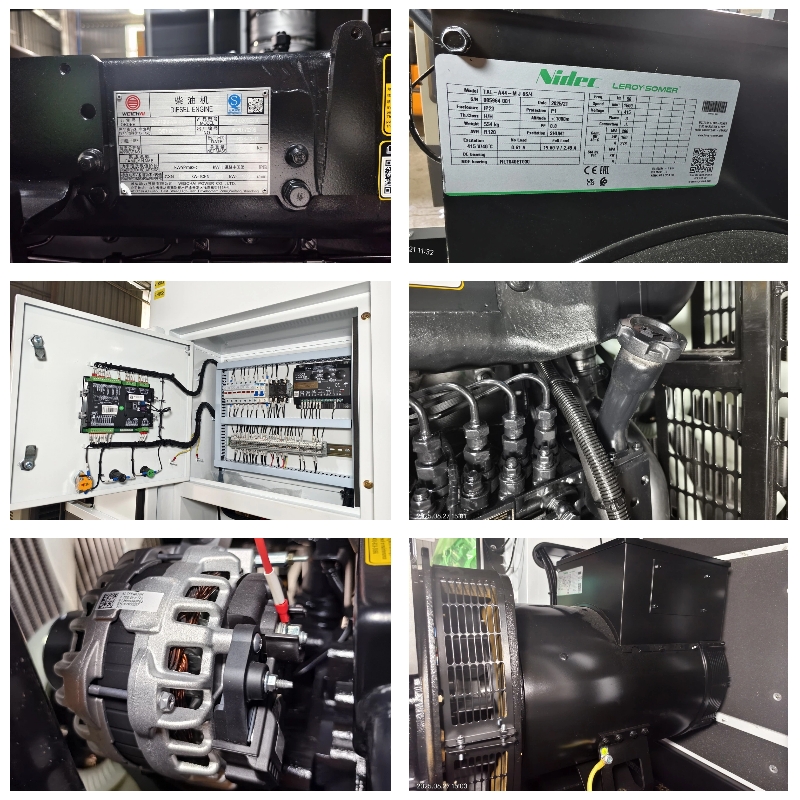

OEM Customization Service

Jiuan Generator provides OEM configuration for the CDW200KVA Weichai WP10D200E200 genset, including ultra-silent canopy (65-68dB@7m), jacket water heater and automatic louver system for Siberia/Northern Europe cold-region deployment, C5-M anti-corrosion painting for coastal installations, 4G IoT remote monitoring, custom RAL canopy color and customer brand labelling, ATS auto-transfer cabinet, and 5-language documentation package. Every unit ships with traceable ESN and full staged load test records.

FAQ

Q: What building loads can the CDW200KVA cover during a grid outage at a hotel?
A: The 200KVA Weichai diesel generator CDW200KVA 160KW prime rated output covers a mid-scale hotel's lifts, HVAC compressor circuits, emergency corridor and exit lighting, kitchen refrigeration, and front desk communications simultaneously. The ATS controller restores supply within 3-5 seconds, maintaining guest and staff safety throughout the grid outage event without manual operation at the generator room.

Q: How does PICC insurance underwriting help facility procurement teams specify the CDW200KVA?
A: The 200KVA hotel backup generator CDW200KVA warranty is underwritten by PICC (People's Insurance Company of China) — a state-backed tier-1 insurer. For hotel and campus facility procurement teams that must satisfy local authority technical specifications and insurance compliance requirements, this provides independent quality underwriting beyond standard manufacturer-only warranty coverage. Air-freight parts reach most countries in 3-5 days.

Q: What ESN traceability and load test documentation is supplied with the CDW200KVA?
A: The Weichai WP10 silent generator CDW200KVA carries a unique factory-registered ESN (Engine Serial Number) linked to the production record. Before shipment, every unit is load-bank tested at 0%-25%-50%-75%-full load and 110% overload, with a complete test video and PDF load analysis report shipped alongside the unit — giving facility engineers auditable technical documentation for each specific unit installed.
