200KW Manufacturing Plant Prime Power — Weichai WP10D264E200 32% Engine Reserve for Industrial Motor Loads

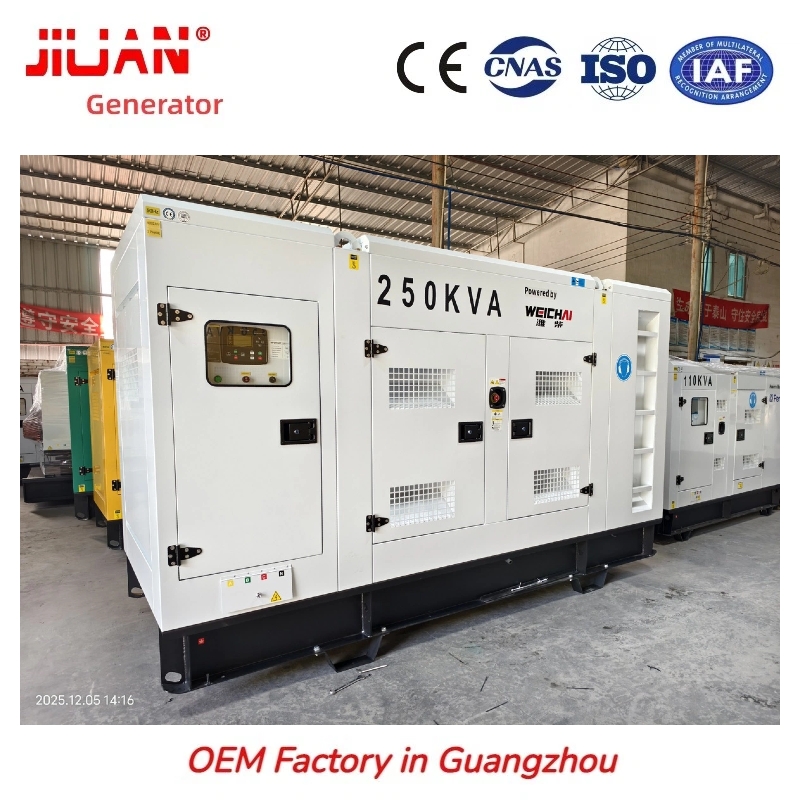

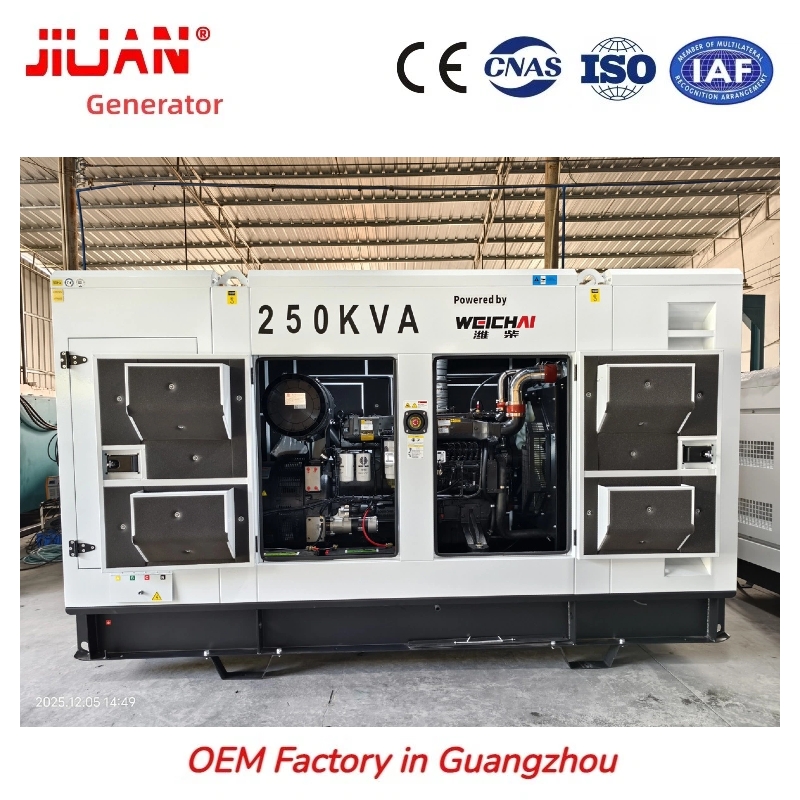

The CDW250KVA is Jiuan Generator's 250KVA Weichai diesel generator for manufacturing plant prime power — metal fabrication shops, plastic injection lines, compressor-driven processing facilities, and industrial parks requiring continuous 200KW three-phase supply with sufficient starting reserve for large inductive motor loads. Powered by the Weichai WP10D264E200 six-cylinder turbocharged diesel, the CDW250KVA delivers 200KW/250KVA ISO8528 PRP prime and 220KW/275KVA standby, in a 3800×1400×2100mm, 2700kg heavy-duty silent canopy.

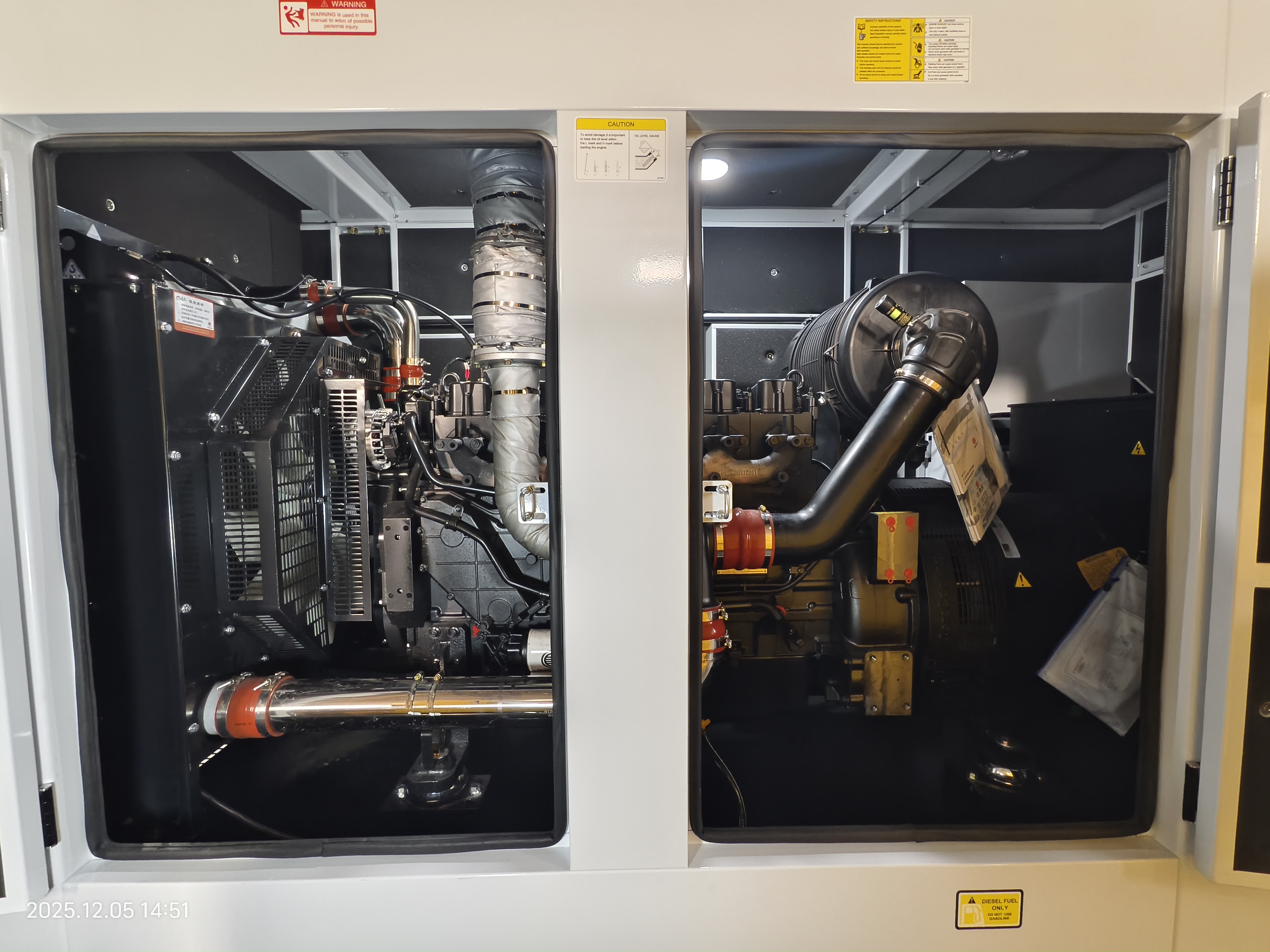

The Weichai WP10D264E200 genset engine is an inline six-cylinder, turbocharged and intercooled water-cooled diesel with 9.726L displacement, 126mm × 130mm bore and stroke, 17:1 compression ratio, and high-pressure common rail (HPCR) electronic injection with ECU speed regulation. Rated gross output is 264kW@1500RPM — 32% above the 200KW prime rating — providing sustained starting reserve for DOL air compressors, CNC spindle drives, and centrifugal pump motors on manufacturing production lines. Specific fuel consumption is ≤197g/kWh.

The 200KW industrial prime generator CDW250KVA all-copper wound brushless synchronous alternator is H-class insulated, IP23 protected, with steady-state voltage regulation within ±1% and transient regulation within ±15%. The DSE7320 or SmartGen controller monitors voltage, frequency, current, coolant temperature, and oil pressure in real time, with auto-shutdown on overspeed, overheat, and low oil pressure. ATS auto-start transfers load within 3-6 seconds of grid failure — keeping CNC programs, PLC systems, and industrial refrigeration running without interruption.

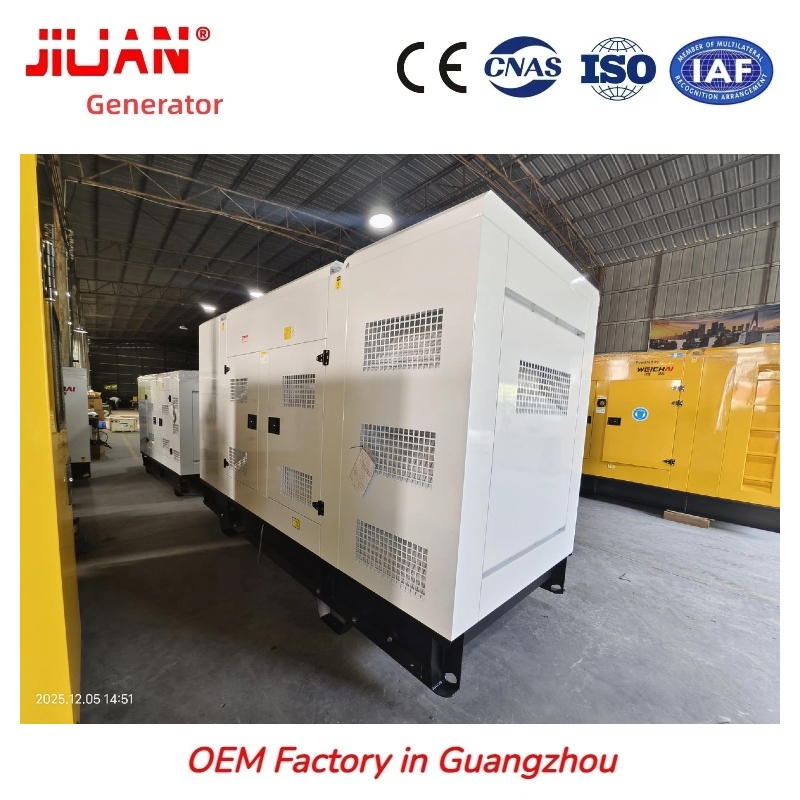

The 250KVA manufacturing power generator CDW250KVA silent canopy uses 3mm cold-rolled steel with four-stage anti-corrosion treatment — pickling, phosphating, electrophoresis, and powder coating — and 60mm flame-retardant acoustic insulation. Eight high-damping rubber shock absorbers isolate the drivetrain from the chassis, achieving ≤72dB(A) at 7m. Multiple removable access panels allow engine oil, filter, and inspection servicing without disassembling the canopy, supporting 24/7 prime power maintenance schedules at production facilities.

The Weichai WP10 silent generator CDW250KVA reduces initial procurement cost by approximately 30% versus equivalent Perkins or Cummins 250KVA units. Weichai WP10 spare parts are available through in-country distributors in Africa, Southeast Asia, and the Middle East — lowering parts cost and reducing maintenance lead times at overseas manufacturing sites. Jiuan Generator provides an 18-month or 2,000-hour global warranty with technical support and parts delivery within 48 hours of fault reporting.

Technical Specifications

5 Core Competitive Advantages

1. 264kW Engine vs 200KW Prime — 32% Motor-Start Reserve for Manufacturing Loads
The 200KW industrial prime generator CDW250KVA WP10D264E200 gross output of 264kW@1500RPM provides 32% continuous power reserve above the 200KW prime operating point. This reserve absorbs the 3-7× rated starting current drawn by DOL air compressors, CNC spindle drives, and centrifugal pump motors — maintaining stable voltage and frequency during sequential machine startup on manufacturing production lines.

2. HPCR ≤197g/kWh — Best-in-Class Fuel Economy for Extended Prime Operation
The Weichai WP10D264E200 genset high-pressure common rail injection system holds ≤197g/kWh specific fuel consumption across the full prime load range. For a manufacturing plant operating the CDW250KVA as primary power during daily load-shedding or grid outage periods, HPCR fuel precision delivers measurable running cost savings versus older mechanically governed units at equivalent prime power ratings.

3. 10% Standby Headroom + ATS 3-6 Seconds — Grid Backup for Critical Industrial Circuits
The 250KVA Weichai diesel generator CDW250KVA 220KW/275KVA standby rating provides 10% power headroom above the 200KW prime. ATS auto-start transfers load within 3-6 seconds of grid loss — covering CNC machine programs, PLC control systems, industrial refrigeration, and lighting circuits at manufacturing facilities without interruption.

4. 3mm Steel + Four-Layer Anti-Corrosion + 24L Oil Sump — Industrial Build for 24/7 Prime Use
The 250KVA manufacturing power generator CDW250KVA canopy four-stage anti-corrosion process — pickling, phosphating, electrophoresis, powder coating — resists tropical humidity and coastal salt spray at overseas plant installations. The 24L oil sump supports extended drain intervals at 500-hour service cycles, reducing maintenance cost and downtime for manufacturing facilities operating the unit as continuous prime power.

5. 30% Lower Procurement Cost — WP10 Parts Network Across Africa, Middle East, SEA
The Weichai WP10 silent generator CDW250KVA costs approximately 30% less to procure than equivalent Perkins or Cummins 250KVA units. In-country WP10 spare parts availability across Africa, the Middle East, and Southeast Asia means planned maintenance and emergency repairs can be completed without waiting for international air freight — a significant operational advantage for manufacturing sites in remote industrial zones.

Application Scenarios

The CDW250KVA 200KW industrial prime generator serves the following prime and standby applications:

• Manufacturing plant prime power — continuous supply for CNC machinery, injection molding, metal fabrication, and compressor-driven processing lines
• Industrial park and export processing zone — prime power for multi-workshop loads and sub-station feeds
• Grade-A hospital standby — covering operating theaters, ICU, lifts, and central HVAC
• Data center edge node — ATS standby for server racks, UPS, and precision cooling
• Infrastructure and construction — temporary prime power for highway, civil, and offshore engineering sites

OEM Customization Service

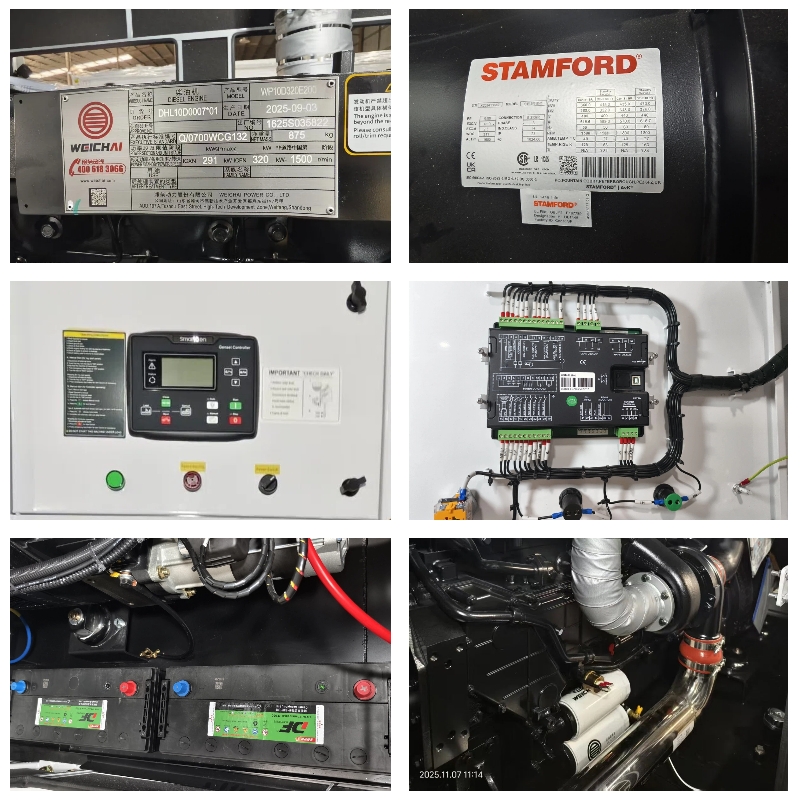

Jiuan Generator provides OEM configuration for the CDW250KVA Weichai WP10D264E200 genset. Available options include ultra-silent canopy (≤65dB@7m), DSE7320 or SmartGen with RS-485/MODBUS, ATS automatic transfer cabinet, 4G IoT remote monitoring module, multi-unit parallel control cabinet, and 1000-3000L external fuel tank. Custom RAL canopy color and customer brand labelling are supported. All CDW250KVA units pass full-load factory burn-in testing before dispatch.

FAQ

Q: Why does the CDW250KVA engine produce 264kW if the prime rating is only 200KW?
A: The 250KVA Weichai diesel generator CDW250KVA WP10D264E200 gross output of 264kW exceeds the 200KW prime by 32%. This margin absorbs the 3-7× rated inductive starting current drawn by DOL air compressors, pumps, and CNC spindle drives — maintaining stable frequency and voltage during sequential motor startup on manufacturing production lines without triggering governor overshoot or voltage dip.

Q: Is the CDW250KVA rated for continuous 24/7 prime power at a manufacturing plant?
A: Yes. The 250KVA manufacturing power generator CDW250KVA is rated 200KW ISO8528 PRP — certified for continuous unrestricted-hour prime operation at up to 70% average load factor. The WP10D264E200 24L oil sump, extended drain intervals, and all-copper alternator windings are designed for sustained daily prime operation at manufacturing facilities and export processing zones in Africa, Southeast Asia, and the Middle East.

Q: What spare parts support is available for the WP10 engine in remote overseas locations?
A: The Weichai WP10 silent generator CDW250KVA is backed by Weichai Power's parts network across Africa, the Middle East, and Southeast Asia. Standard maintenance parts — filters, injector kits, belts, gasket sets — are stocked in-country by authorized distributors, reducing repair lead time to 1-3 days. Jiuan Generator provides 18-month / 2,000-hour warranty with 48-hour technical support response.
