Municipal water pumping stations and wastewater treatment plants demand prime-rated generators that sustain centrifugal pump motors, aeration drives, and UV treatment units through 24-hour continuous duty cycles — grid failure during a flood event leaves a lift station without dewatering capacity within minutes. The JIUAN Power 330KVA Cummins diesel generator — Model CDC330KVA, driven by the Cummins 6LTAA9.5-G1 9.5L engine manufactured at DCEC Dongfeng Cummins' ISO 9001-certified facility — delivers 256KW/320KVA prime and 264KW/330KVA standby for municipal water infrastructure and storm drain management. Every 330KVA silent Cummins genset leaves the factory ISO 8528-verified, with complete pre-shipment test documentation as standard.

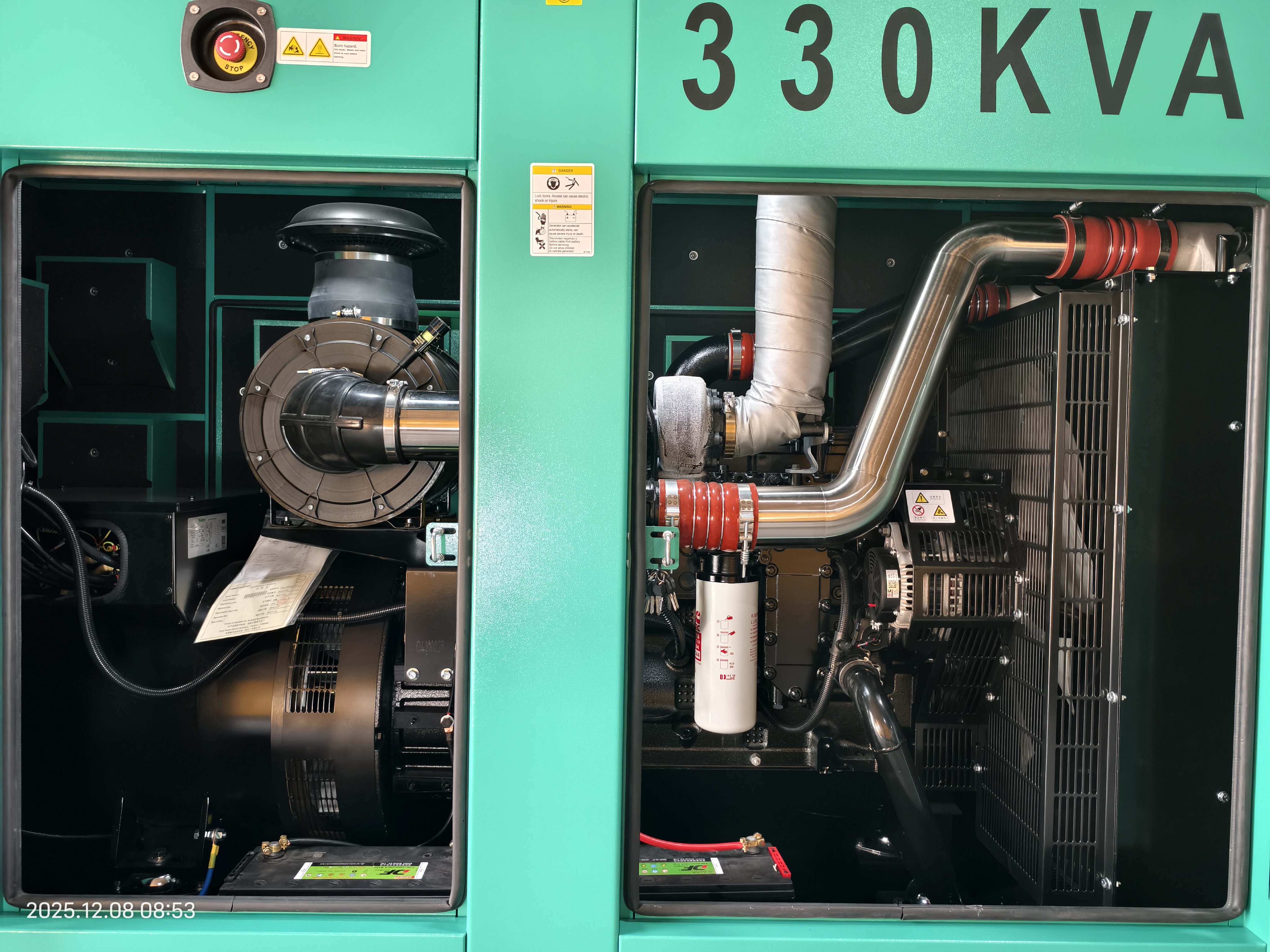

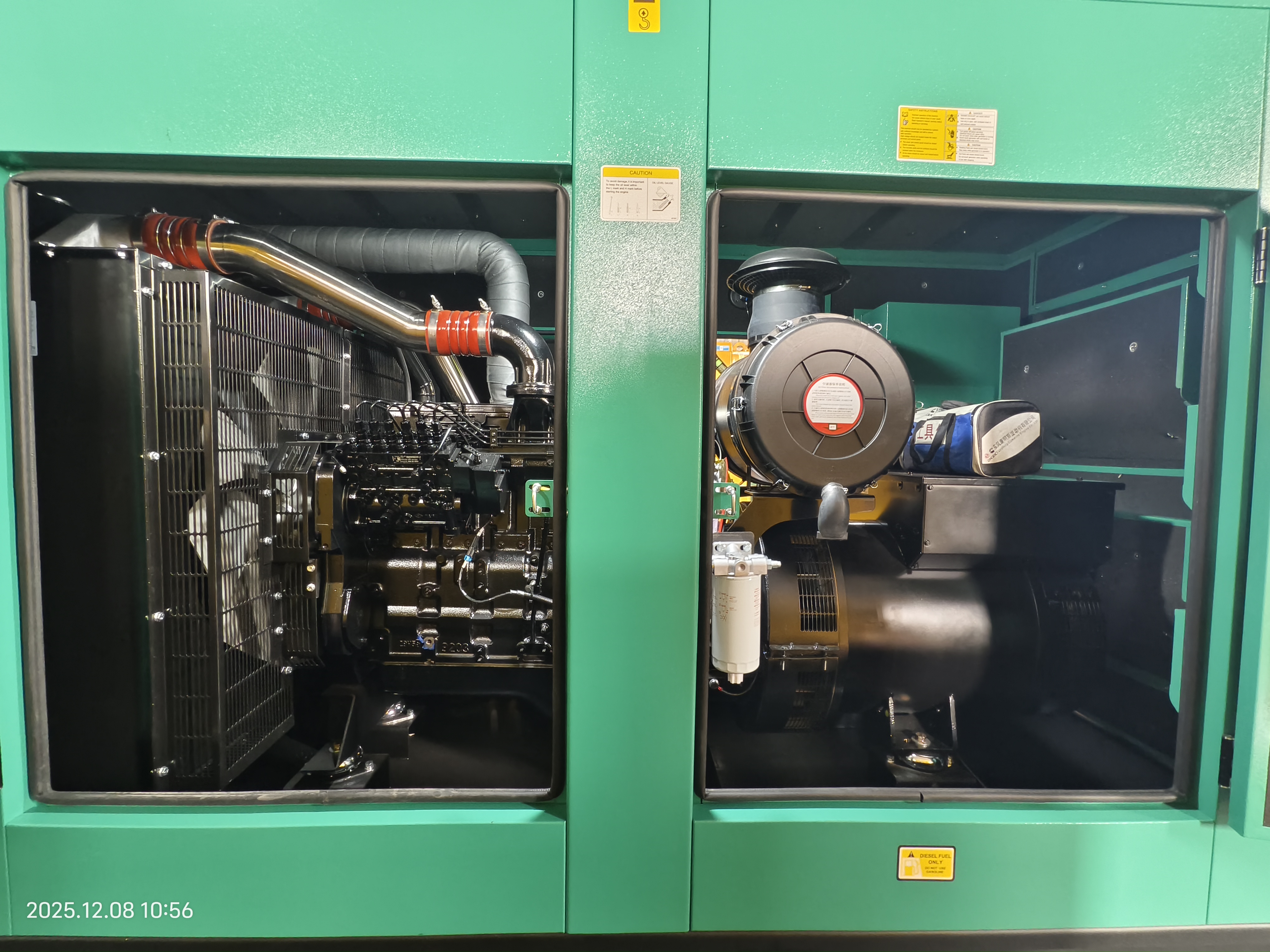

The Cummins 6LTAA9.5-G1 engine at the heart of this soundproof diesel generator is produced at DCEC Dongfeng Cummins' ISO 9001-certified Wuhan facility — an inline six-cylinder, 9.5L platform with a 114mm bore, 145mm stroke, and 16.6:1 compression ratio. A Holset turbocharger with air-to-air intercooler and high-pressure mechanical fuel injection with EFC electronic governor hold frequency deviation within ±3% under step-load pick-up — protecting submersible pump VFDs, SCADA terminal units, and aeration motor soft-starters from supply disturbance. Rated BSFC of 197–207 g/kW·h and a 12,000-hour overhaul interval align with 5–10 year municipal infrastructure budget cycles.

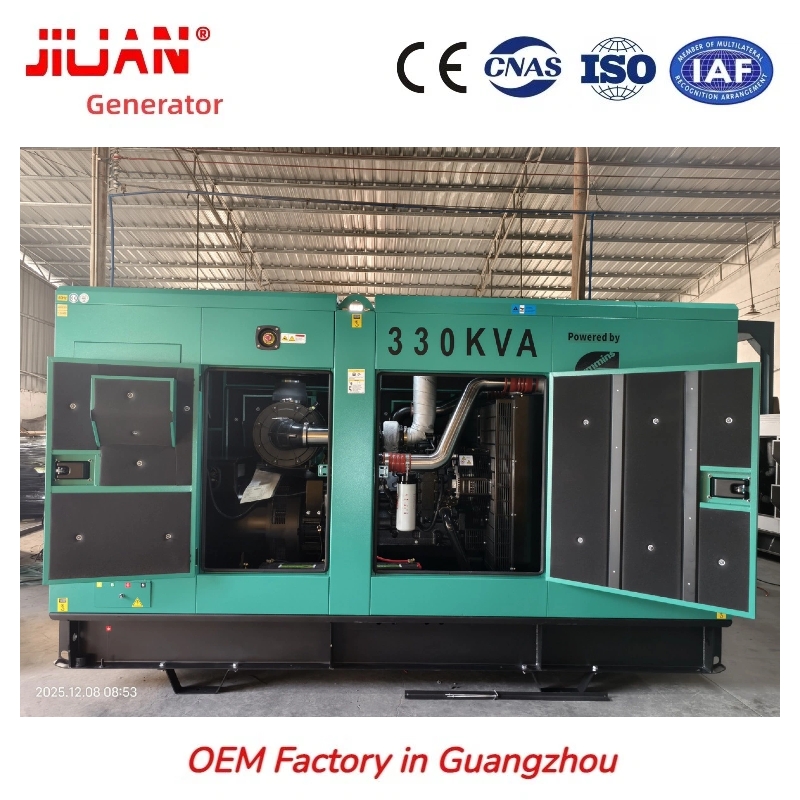

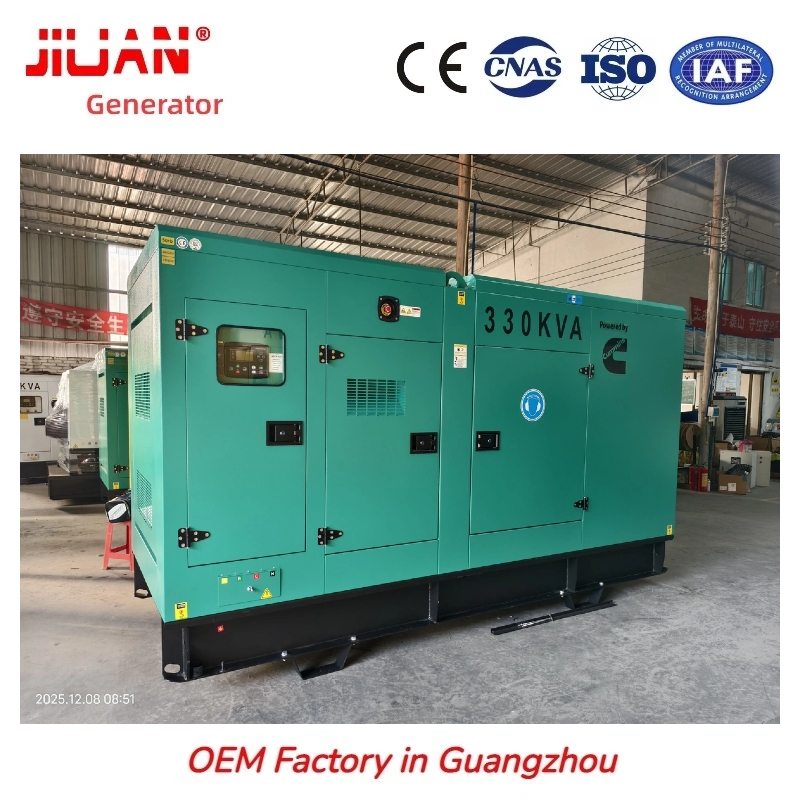

The weatherproof enclosure of this 330KVA Cummins diesel generator is fabricated from ≥2.0mm cold-rolled steel panels, finished with a 120°C electrostatic enamel coat, and insulated with 40 kg/m³ flame-retardant rock wool — measured acoustic output at 7 metres is 65–68 dB(A), compliant with residential-zone noise limits for pump stations adjacent to urban communities. A 650-litre integral skid-frame fuel tank provides over 9 hours of full-load prime operation, covering prolonged grid outages during storm events. Each 330KVA silent Cummins genset is shipped pre-fitted with a DeepSea DSE7320 controller; ATS logic completes mains-to-generator transfer within 3–6 seconds — maintaining continuous pump flow in gravity-fed distribution networks during utility interruption.

JIUAN Power ships every CDC330KVA 330KVA Cummins diesel generator with pre-shipment load bank recordings — six progressive acceptance bands from 0% through 110% — and a PDF report for municipal procurement files. Documentation includes 3D engineering assembly drawings, anti-counterfeiting component photographs, and a PICC insurance-backed 5-year warranty policy recording the Cummins 6LTAA9.5-G1 engine serial number for government infrastructure asset registers. A 150-page operations and service handbook in five language editions (English, Arabic, French, Spanish, Portuguese), electrical schematics, a 3D disassembly animation CD, and service wrenches with testing meters complete the delivery. Panel gauge is confirmed by digital calliper before despatch; warranty components arrive at any major port within 3–5 working days by air freight, valid for the full 5-year warranty period.

6LTAA9.5-G1 Prime Power for 24/7 Centrifugal Pump Duty: 256KW Continuous Rating, 12,000-Hour Overhaul Interval

The Cummins 6LTAA9.5-G1 engine in this 330KVA Cummins diesel generator is rated at 256KW prime — sustaining centrifugal pumps, submersible pump motors, and aeration drives through 24-hour water treatment duty cycles without derating. Holset turbocharging with EFC electronic governing holds output frequency within ±3% through full pump motor starting surges, protecting SCADA terminal units and submersible pump VFDs from supply disturbance. JIUAN Power confirms ISO 8528 compliance across all six graded duty bands in pre-shipment load bank footage before despatch. Rated BSFC of 197–207 g/kW·h and a 12,000-hour overhaul interval align with 5–10 year municipal infrastructure budget cycles and PPP project depreciation schedules.

PICC 5-Year Warranty, ESN Traceability, and Panel Gauge Certification for Municipal Government Procurement

Each CDC330KVA carries a PICC insurance-underwritten 5-year warranty certificate with the Cummins engine serial number issued on the policy — a traceable record for municipal water authority procurement compliance, equipment maintenance registers, and ISO 9001 fixed-asset documentation. JIUAN Power verifies canopy panel gauge by digital calliper and supplies 3D engineering assembly drawings alongside magnified anti-counterfeiting component photographs, giving municipal procurement teams a full visual quality audit of this soundproof diesel generator before order placement. Warranty components are air-freighted to any major port within 3–5 working days.

±1% Voltage for Submersible Pump VFDs, C5-M Corrosion Protection, and Arctic Cold-Start Capability

The Stamford or Leroy-Somer Class H brushless synchronous alternator in this 330KVA silent Cummins genset — IP23-rated, vacuum-impregnated all-copper windings — holds voltage regulation within ±1% and total harmonic distortion below 3%, meeting the clean-power requirement of submersible pump VFDs and municipal SCADA terminal units. C5-M anti-corrosion coating (ISO 12944) is specified for coastal pump stations and tidal zone lift stations subject to salt-mist exposure; cold-region packages — jacket water heaters, fuel preheaters, and arctic lubricant grades — extend reliable cold-start to -30°C for Nordic municipal pump stations and high-altitude water supply projects, keeping the 330KVA Cummins diesel generator ready at every ambient extreme.

The CDC330KVA 330KVA Cummins diesel generator provides prime and standby power for municipal water pumping stations, wastewater treatment plants, storm drainage lift stations, flood control authorities, agricultural irrigation networks, municipal infrastructure projects, hospitals, and industrial facilities across Sub-Saharan Africa, the Middle East, Southeast Asia, and Latin America. JIUAN Power fully pre-assembles every soundproof diesel generator before despatch.

FAQ

Q: How does the 256KW prime rating of this 330KVA Cummins diesel generator benefit water treatment plant operations?
A: The Cummins 6LTAA9.5-G1 engine in the CDC330KVA is rated at 256KW prime — authorised for 24-hour continuous operation, covering centrifugal pumps, aeration drives, and UV treatment units through extended duty cycles. Unlike standby-only units, the prime rating allows sustained loading without derating, making it suitable as the principal power source for remote or off-grid pump stations.

Q: What is the autonomous runtime of this 330KVA silent Cummins genset during a grid outage?
A: The 650-litre integral fuel tank provides over 9 hours of autonomous runtime at prime load. The DeepSea DSE7320 controller provides low-fuel alarm and auto-shutdown protection, supporting unattended pump station operation during extended outages.
