Electrical engineers specifying emergency power for hospitals, surgical centres, and data centres face strict code requirements: automatic transfer within 10 seconds, voltage stability inside ±1%, and continuous runtime without service interruption. The JIUAN Power 350KVA Cummins diesel generator — Model CDC350KVA, driven by the DCEC 6LTAA9.5-G1 9.5L engine — is configured from the factory to meet these criteria, rated at 320KVA prime (256KW) and 350KVA standby (280KW). Supplied as a complete 320KVA silent Cummins genset, it is verified against ISO 8528 before despatch, with factory test documentation included as standard.

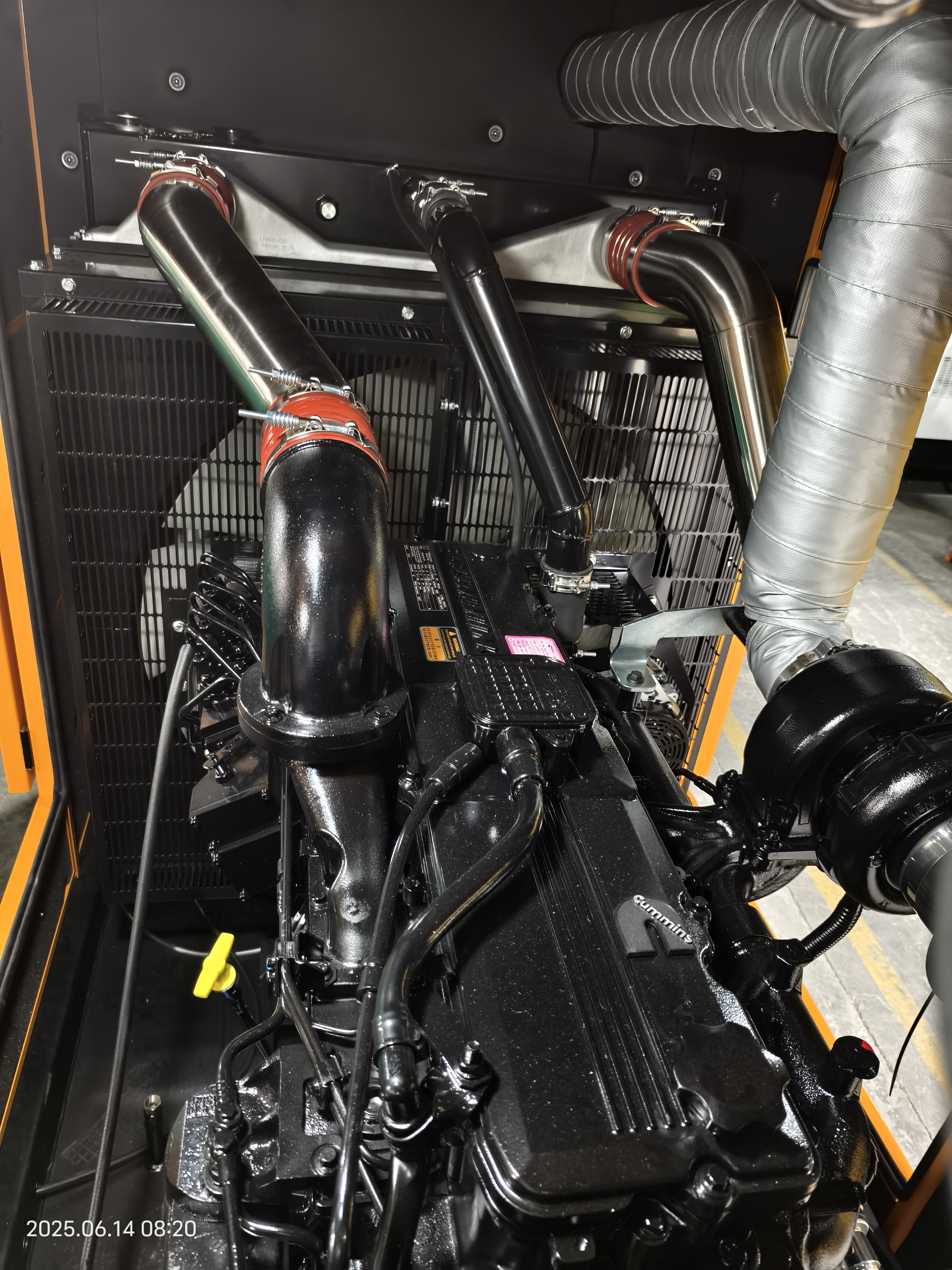

The Cummins 6LTAA9.5-G1 engine at the core of this soundproof diesel generator is produced at DCEC Dongfeng Cummins' ISO 9001-certified Wuhan manufacturing facility. The inline six-cylinder platform — 9.5L displacement, compression ratio 16.6:1 — combines a Holset turbocharger, air-to-air aftercooler, and Bosch P7100 high-pressure mechanical fuel injection with an electronic governor, achieving a rated full-load BSFC of 197 g/kW·h. The Cummins 6LTAA9.5-G1 is rated for a 16,000-hour overhaul interval and accepts staged loads from 0% to 110% of standby rating under the factory protocol JIUAN Power completes before despatch. Cold-start is qualified to -12°C without auxiliary aids; a factory-fitted jacket water heater extends reliable cold-start to -30°C.

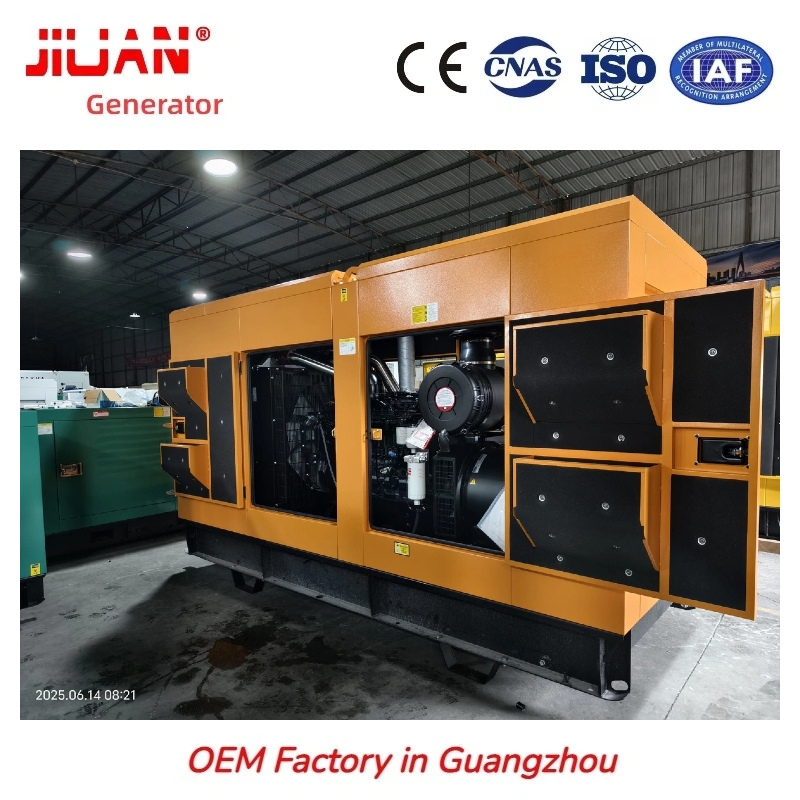

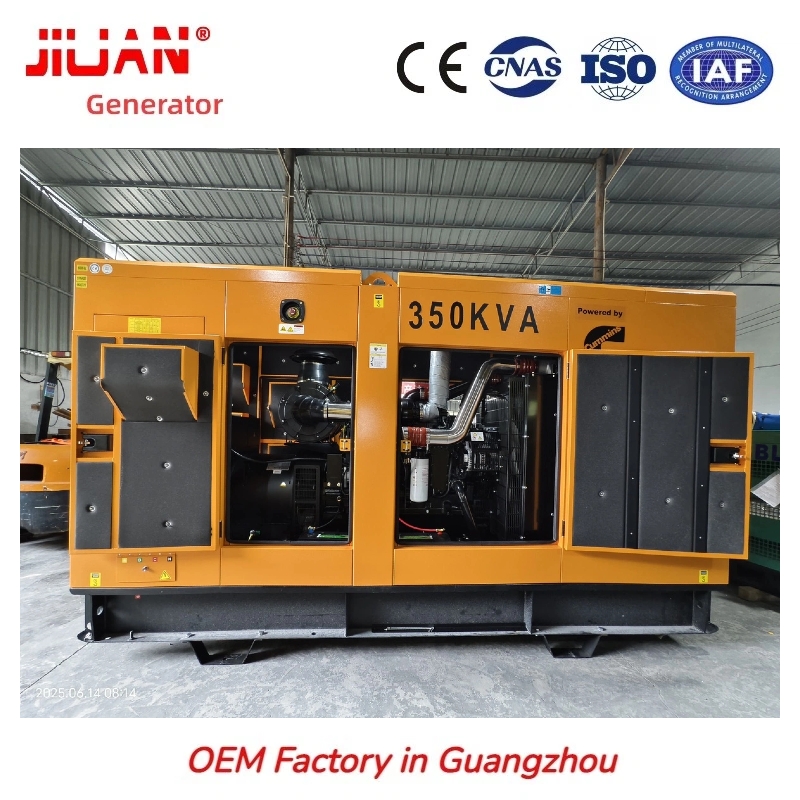

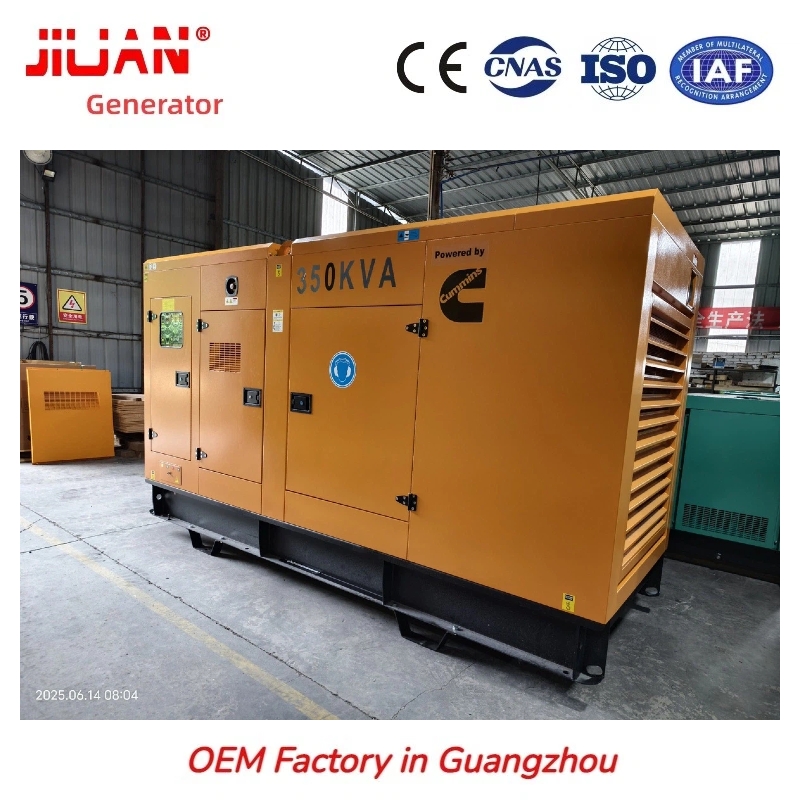

The rigid acoustic enclosure of this 350KVA Cummins diesel generator uses shell panels formed from ≥2.0mm cold-worked steel, kiln-baked with a 120°C electrostatic topcoat, and internally packed with 40 kg/m³ high-density rock wool — independently measured exterior noise at 7 metres registers 65–68 dB(A), within urban hospital and residential-zone acoustic limits. A 650-litre belly tank extends unattended full-load runtime beyond 7 hours. Each 320KVA silent Cummins genset leaves the factory with a DeepSea DSE7320 fitted as standard controller, logging voltage, current, frequency, lube-oil pressure, coolant temperature, and accumulated operating hours; a pre-wired ATS terminal bay transfers the load from grid to generator in under 6 seconds following supply loss.

JIUAN Power ships every CDC350KVA 350KVA Cummins diesel generator with filmed step-load evidence: six acceptance test stages from 0% to 110% on the factory load bank and a PDF performance report confirming ISO 8528 output. Documentation includes 3D engineering diagrams of engine and alternator assemblies, close-up component photography for counterfeit-parts verification, a PICC insurance-backed 5-year warranty policy recording the Cummins 6LTAA9.5-G1 ESN, a 150-page bilingual service handbook in five languages (English, Arabic, French, Spanish, Portuguese), electrical wiring diagrams, a 3D disassembly animation CD, and complimentary service wrenches with testing meters. Shell plate thickness is measured by digital calliper before despatch; warranty spares reach any international port within 3–5 working days, covering the full 5-year warranty period.

6LTAA9.5-G1 P7100 Mechanical Injection: 16,000-Hour TBO for Critical Facility Reliability

The Cummins 6LTAA9.5-G1 engine in this 350KVA Cummins diesel generator relies on Bosch P7100 mechanical high-pressure injection — no electronic control unit in the fuel circuit — maintaining stable combustion across all load points from zero to 110% overload without ECU dependency. JIUAN Power films and supplies a step-load acceptance test video for each unit prior to shipment, confirming ISO 8528 performance. Rated BSFC of 197 g/kW·h and a 16,000-hour overhaul interval make this platform well-suited for continuous 24/7 prime-power duty in healthcare, data centre, and industrial settings.

PICC-Backed 5-Year Warranty, ESN Traceability, and Vernier-Verified Steel Construction

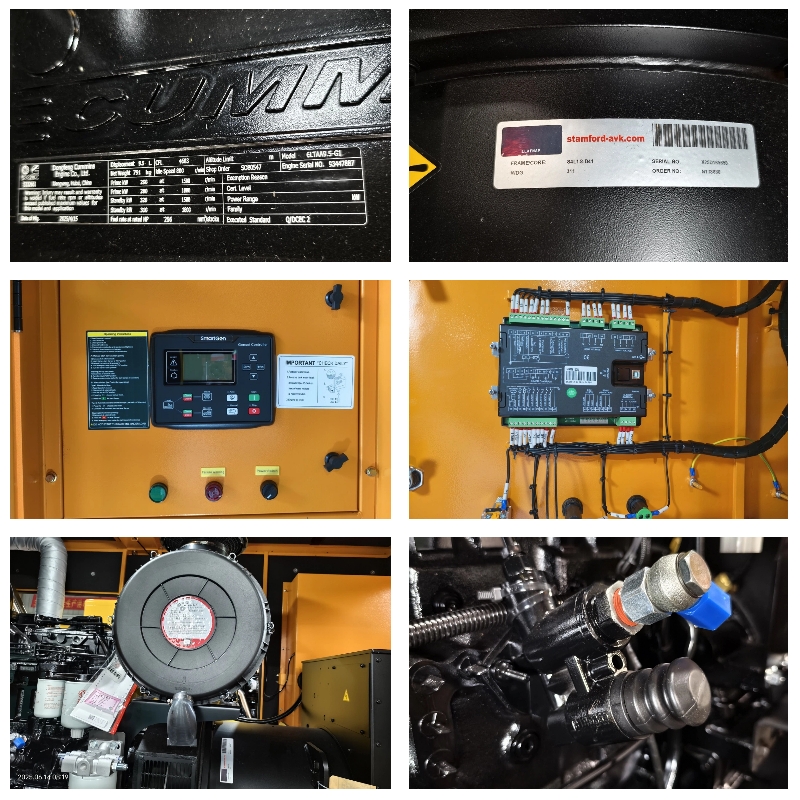

Each CDC350KVA carries a PICC insurance-backed 5-year warranty policy with the Cummins engine serial number registered on the certificate — an auditable entry for the buyer's O&M asset file and project close-out package. Digital calliper measurement of canopy shell plate thickness, 3D engineering exploded-view drawings, and close-up anti-counterfeiting component shots allow technical procurement teams to audit this soundproof diesel generator's material specification remotely. JIUAN Power's authorised Cummins parts network delivers air freight warranty components to any major port within 3–5 working days.

±1% Voltage Stability, C5-M Coastal Protection, and Cold-Climate Extension Kits

The Stamford or Leroy-Somer Class H brushless synchronous alternator in this 320KVA silent Cummins genset — IP23-rated, vacuum-impregnated all-copper windings — holds voltage regulation within ±1% and total harmonic distortion below 3%, satisfying power quality thresholds for medical imaging equipment, UPS systems, and precision PLC controllers. Optional C5-M anti-corrosion coating meets ISO 12944 for coastal deployments; cold-weather kits — jacket water heaters, battery blankets, and arctic lubricant packages — extend the 350KVA Cummins diesel generator's operational range to -30°C for high-latitude facilities.

The CDC350KVA 350KVA Cummins diesel generator provides prime and standby power for Grade A hospitals, surgical centres, Tier 2 data centres, commercial shopping complexes, pharmaceutical manufacturing facilities, and mid-scale industrial parks across Southeast Asia, the Middle East, and Africa. JIUAN Power ships every soundproof diesel generator fully pre-assembled, requiring only diesel connection and power cable termination for on-site commissioning.

FAQ

Q: Does this 350KVA Cummins diesel generator meet IEC 60364-7-710 hospital emergency transfer requirements?
A: Yes. The CDC350KVA transfers to standby within 3–6 seconds of mains failure via the DSE7320 ATS-ready controller. The Stamford or Leroy-Somer alternator maintains ±1% voltage regulation and below 3% THD, satisfying the power-quality thresholds for life-safety equipment under IEC 60364-7-710.

Q: Is this 320KVA silent Cummins genset suitable for continuous prime power operation?
A: Yes. The 256KW prime rating authorises the Cummins 6LTAA9.5-G1 for 24/7 continuous full-load operation. The 9.5L displacement and P7100 mechanical injection system handle sustained 80–100% load without thermal-degradation concerns common to smaller-displacement engines.
