280KW ATS Emergency Standby for Office Towers and Commercial Complexes — Weichai WP10D320E200, CE+ISO8528, PICC-Insured

The CDW350KVA is Jiuan Generator's 350KVA Weichai diesel generator for grade-A office towers, large commercial complexes, and civic buildings requiring ATS emergency standby with strict urban noise compliance. The Weichai WP10D320E200 delivers 250KW/312KVA ISO8528 PRP prime and 280KW/350KVA standby, with CE and ISO8528 certification covering Africa, the Middle East, and Southeast Asian commercial property markets.

The Weichai WP10D320E200 genset is a six-cylinder turbocharged and intercooled inline diesel with 9.726L displacement, 126×130mm bore and stroke, 17:1 compression ratio, and HPCR injection with ECU governing. Engine gross output is 320kW at 1500RPM — providing a 28% power reserve above the 250KW prime rating to handle elevator DOL motor starting, HVAC compressor surges, and full-building load restoration events. Specific fuel consumption is ≤197g/kWh at full prime load.

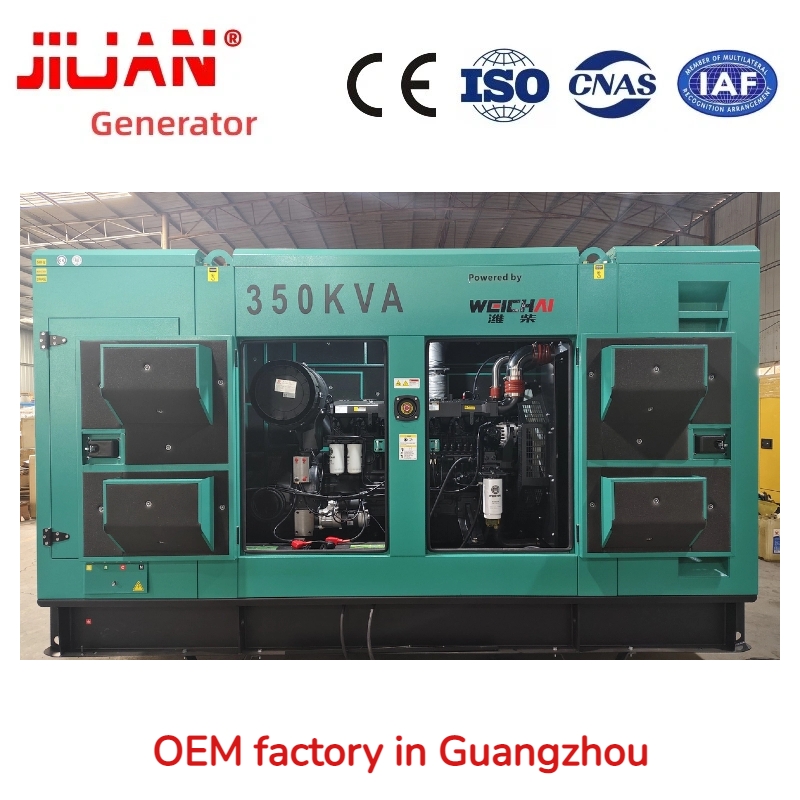

The 280KW standby power generator CDW350KVA canopy is built from 3mm cold-rolled steel with four-layer anti-corrosion treatment — acid descaling, zinc-phosphate conversion, cathodic electrophoresis, and electrostatic powder coating. The 60mm flame-retardant acoustic foam and eight rubber shock absorbers reduce operating noise to ≤72dB(A) at 7m, enabling rooftop and basement plant room installation within CBD commercial zones and residential-adjacent business parks.

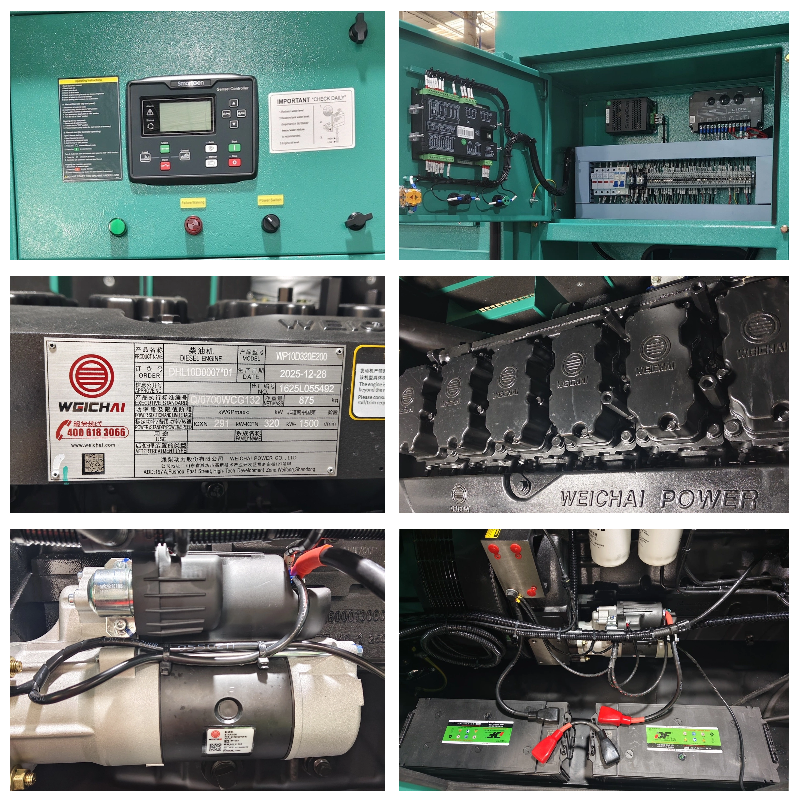

The 350KVA office generator CDW350KVA all-copper brushless H-class alternator delivers ±1% steady-state voltage regulation and ±15% transient protection, guarding building BMS systems, UPS arrays, and precision HVAC drives from voltage disturbances during load switching. The SmartGen or DSE ATS controller provides auto-start within 3-6 seconds of grid failure, with automatic cooling-run shutdown after grid restoration supporting unattended commercial building power management.

The Weichai WP10 silent generator CDW350KVA carries a factory-registered ESN (Engine Serial Number) and is load-bank tested at 0%-25%-50%-75%-full prime load and 110% overload before shipment, with test video and PDF load report shipped with every unit. Warranty is underwritten by PICC (People's Insurance Company of China), with air-freight parts worldwide in 3-5 days. Jiuan Generator's 5-language 150-page maintenance manual, wiring diagrams, and 3D animation CD support overseas commercial building commissioning teams.

Technical Specifications

5 Core Competitive Advantages

1. WP10D320E200 320kW Gross / 28% Power Reserve — Commercial Building Load Surge Capacity for Elevators and HVAC
The Weichai WP10D320E200 genset CDW350KVA 320kW gross engine sustains 250KW prime load at a 28% power reserve — absorbing elevator DOL motor starting surges, HVAC compressor restarts, and full-building load restoration after grid outage without speed droop. Full-load fuel consumption ≤197g/kWh controls operating cost for 24-hour standby duty cycles in high-rise commercial buildings.

2. 3mm Steel + 60mm Foam + 8 Isolators — ≤72dB Urban Commercial Noise for Rooftop and Basement Plant Rooms
The 280KW standby power generator CDW350KVA 3mm cold-rolled steel canopy with 60mm flame-retardant acoustic foam and eight rubber isolators achieves ≤72dB(A) at 7m — meeting EU commercial zone noise limits for CBD rooftop plant rooms and basement generator vaults in office towers and shopping centres. Four-layer anti-corrosion treatment handles coastal and tropical building environments.

3. All-Copper H-Class Alternator — ±15% Transient Protection for BMS, UPS, and Building Safety Systems
The 350KVA office generator CDW350KVA all-copper brushless H-class alternator delivers ±1% steady-state voltage regulation and ±15% transient protection — guarding office BMS servers, UPS rectifiers, fire safety control panels, and HVAC VFD drives from switching transients. The brushless design removes carbon brush maintenance requirements, reducing scheduled downtime for commercial building facilities management teams.

4. ESN Traceability + PICC Insurance + Staged Load Test — Independent Underwriting for Commercial Real Estate Procurement
Every 350KVA Weichai diesel generator CDW350KVA carries a unique factory-registered ESN and is load-bank tested at 0%-25%-50%-75%-full prime load and 110% overload before shipment. Test video and PDF load report are shipped with every unit. Warranty is underwritten by PICC (People's Insurance Company of China), with air-freight core parts in 3-5 days for commercial real estate procurement compliance.

5. 5-Language Manual + Free Service Tools + Extreme Environment Config — Global Commercial Facility Site Support
The Weichai WP10 silent generator CDW350KVA ships with a 150-page maintenance manual in five languages (Chinese, English, Spanish, French, Russian), wiring diagrams, and a 3D disassembly animation CD. Jiuan Generator supplies complimentary service wrenches and testing meters. For cold-region office sites, jacket water heaters and automatic louvers are available; for coastal commercial buildings, C5-M anti-corrosion painting is standard.

Application Scenarios

The CDW350KVA 280KW standby power generator serves commercial, institutional, and industrial ATS standby and prime applications:

• Grade-A office tower and business park ATS — 3-6 second switchover for elevators, BMS, HVAC, and fire safety circuits
• Large shopping centre and retail complex ATS — 280KW covers multi-floor escalators, HVAC, and POS systems
• University campus and civic building prime — 250KW prime for laboratories, HVAC, and administration
• Telecom base station cluster emergency ATS — fast grid-failure switchover for multi-carrier outdoor hub sites
• Manufacturing plant and industrial park emergency standby — 280KW standby covers critical production and safety systems

OEM Customization Service

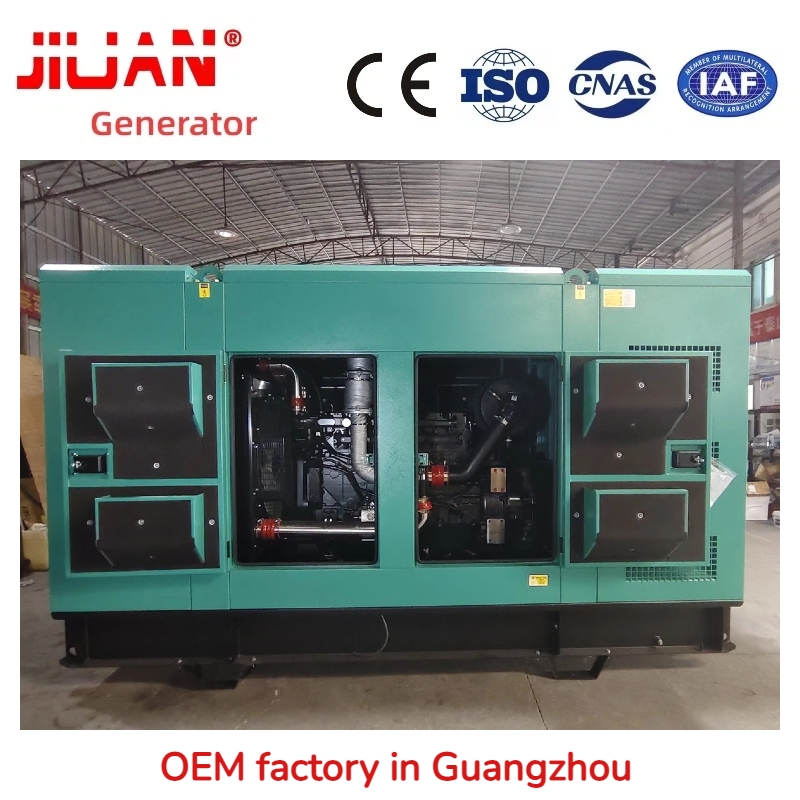

Jiuan Generator offers OEM configuration for the CDW350KVA 350KVA office generator: ATS auto-transfer cabinet (3-6 second switchover), 4G IoT remote monitoring, parallel synchronisation cabinet for multi-unit load sharing, jacket water heater for cold-region deployment, C5-M anti-corrosion painting for coastal commercial environments, custom RAL canopy colour and brand labelling, external fuel tank up to 3,500L for extended autonomy, and non-standard voltage and frequency adaptation for international grid specifications.

FAQ

Q: Why is the CDW350KVA 350KVA Weichai diesel generator suitable for grade-A office ATS emergency standby?
A: The 350KVA Weichai diesel generator CDW350KVA delivers 280KW/350KVA standby with 3-6 second ATS auto-start — covering a 25-30 floor office tower's elevators, HVAC, fire safety, and BMS circuits. The ≤72dB(A) at 7m canopy meets EU commercial zone noise limits for rooftop and basement installation, and CE+ISO8528+GB/T2820 certification satisfies commercial building authority permit submissions.

Q: What makes the CDW350KVA 280KW standby power generator suitable for urban CBD rooftop plant room installation?
A: The 280KW standby power generator CDW350KVA achieves ≤72dB(A) at 7m with 3mm steel canopy, 60mm acoustic foam, and eight rubber isolators — meeting EU commercial urban noise limits for rooftop plant rooms. Compact 3800×1400×2100mm dimensions and 3,500kg weight allow standard freight elevator access, and the four-layer anti-corrosion treatment handles coastal and high-humidity building environments.

Q: What PICC insurance and testing documentation is provided with the CDW350KVA for commercial real estate procurement?
A: The Weichai WP10 silent generator CDW350KVA ships with a factory ESN, a 0%-110% staged load bank test video and PDF report, and PICC (People's Insurance Company of China) warranty insurance documentation for procurement due-diligence records. Air-freight warranty parts reach most countries in 3-5 days. CE and ISO8528 certificates are provided for local authority permit submissions and building compliance files.
