250KW Port Cold Chain Prime Power — WP10D320E200 320kW Gross, 28% Reserve for Reefer Compressor Start

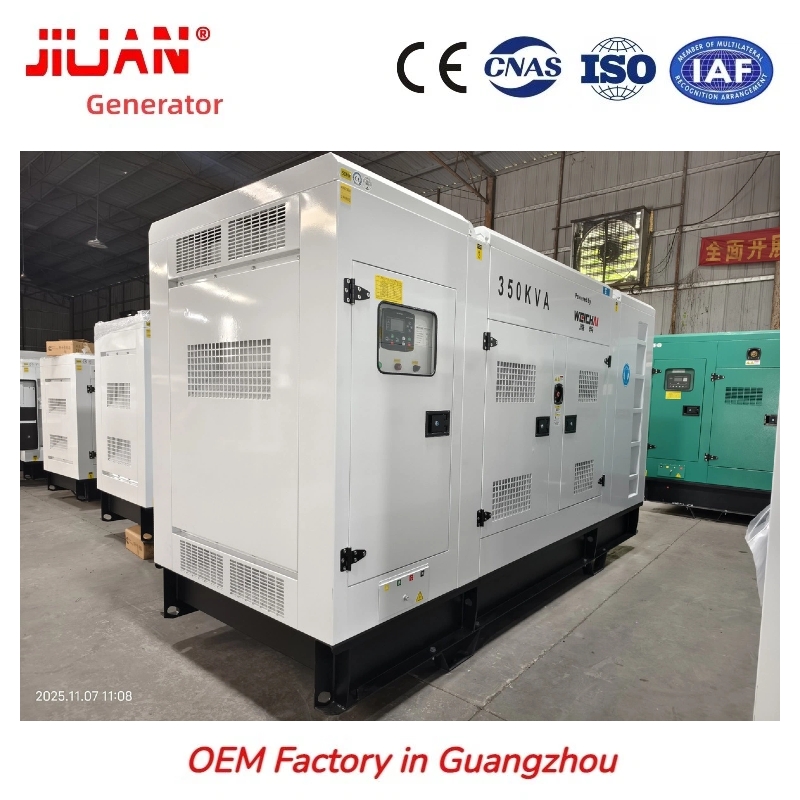

The CDW350KVA is Jiuan Generator's 350KVA Weichai diesel generator for port terminal cold chain and refrigerated container reefer power supply — dockside container yards, cold logistics hubs, and export processing facilities running 50 or more reefer sockets on round-the-clock prime power. The Weichai WP10D320E200 six-cylinder turbocharged intercooled diesel delivers 320kW gross output — 28% above the 250KW/312KVA ISO8528 PRP prime rating — absorbing compressor motor direct-on-line start currents without bus voltage dip. 3500kg; 3800×1400×2100mm.

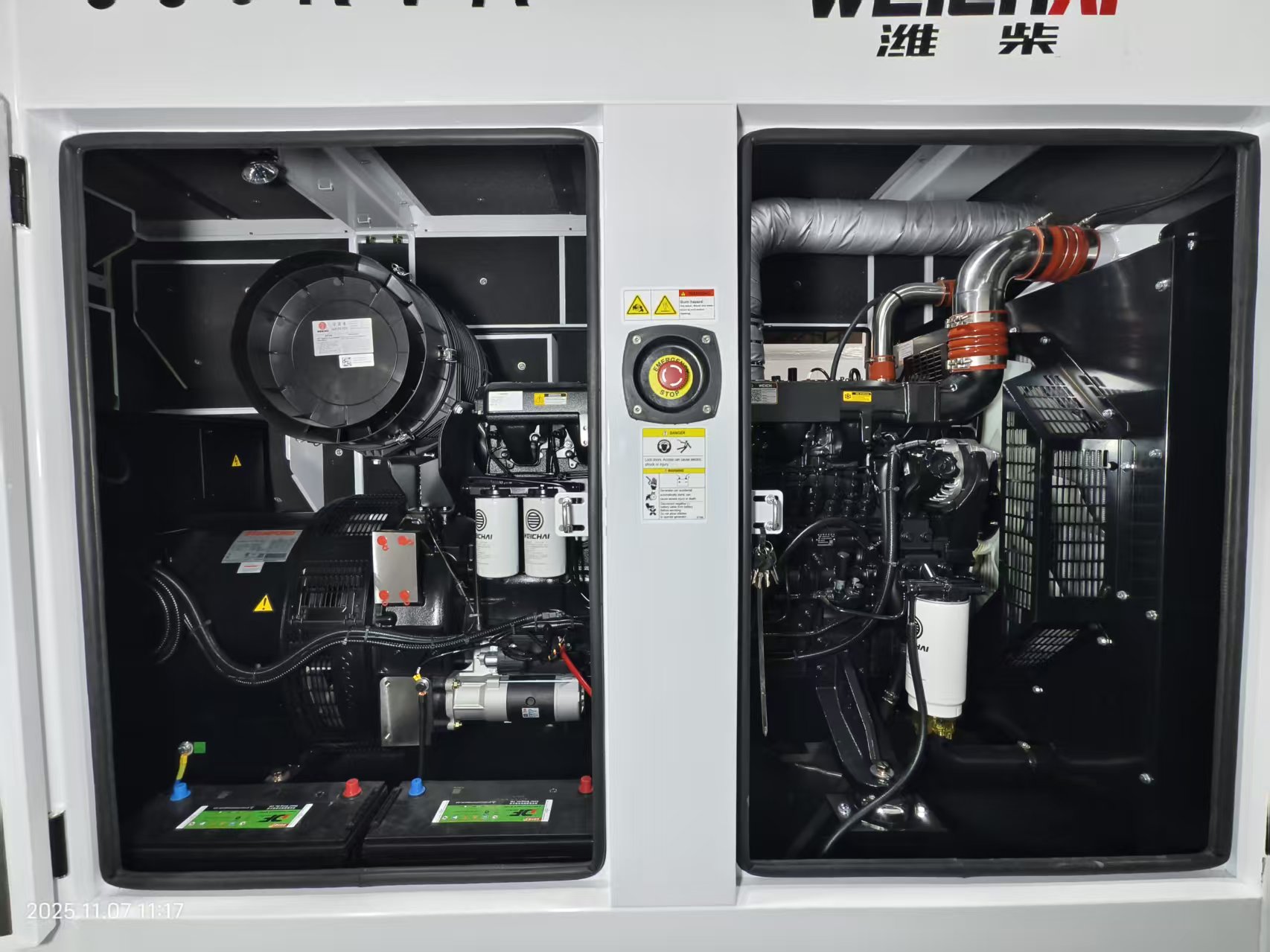

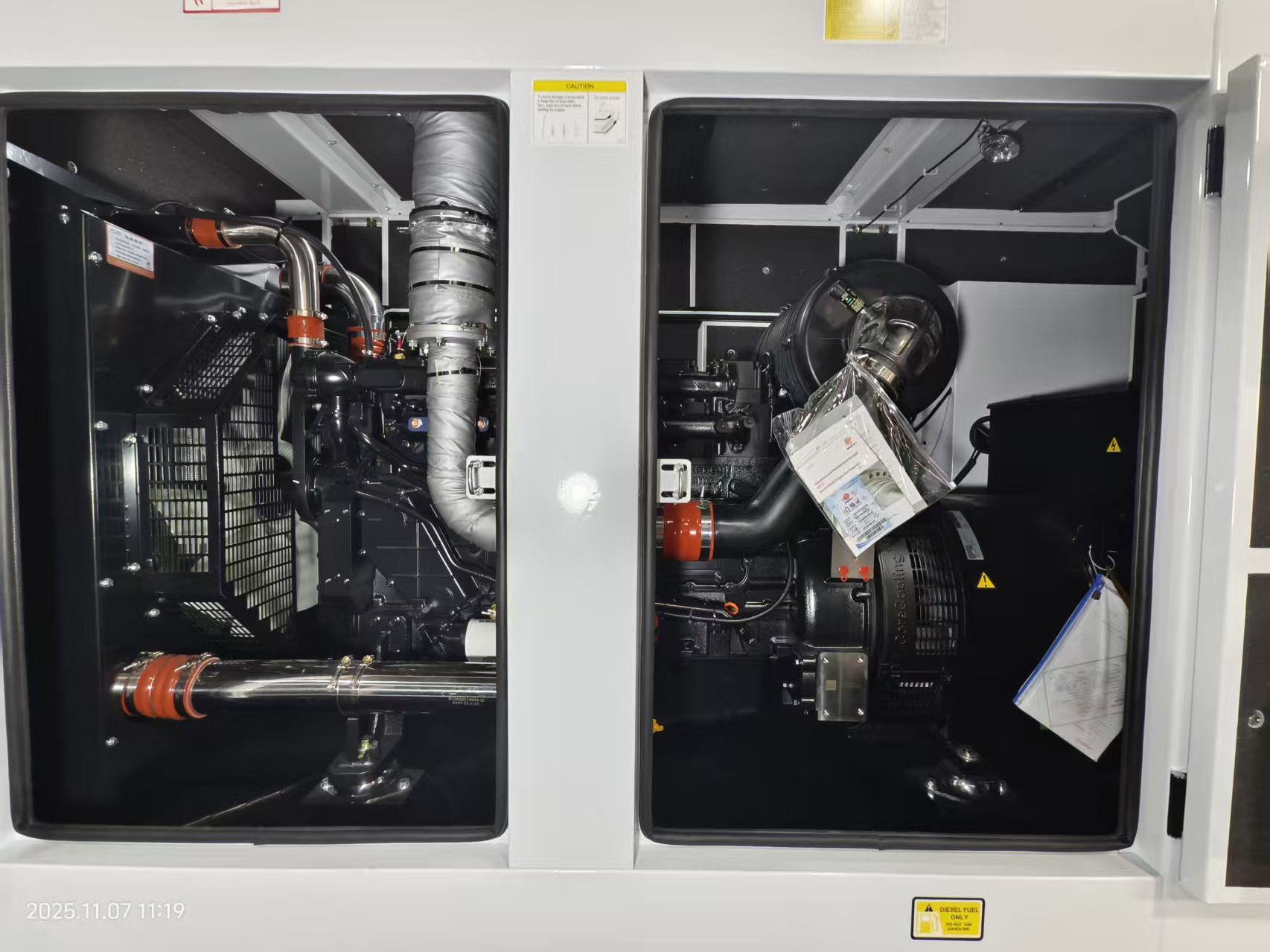

The Weichai WP10D320E200 genset engine is an inline six-cylinder, turbocharged and charge-air-cooled diesel with 9.726L displacement, 126mm × 130mm bore and stroke, and 17:1 compression ratio. High-Pressure Common Rail injection with ECU speed control holds fuel consumption at ≤197g/kWh across full and partial-load port cycles. The 24L oil sump and 500-hour service intervals reduce scheduled maintenance stoppages at port terminals operating around the clock.

The 312KVA prime power generator CDW350KVA all-copper brushless synchronous alternator is H-class insulated, delivering stable 400V/50Hz three-phase supply with ±1% steady-state and ±15% transient voltage regulation at reefer load switching events. The DSE7320 or SmartGen controller provides ATS auto-start within 3-6 seconds — delivering continuous prime supply to dockside reefer distribution panels, cold store loading docks, container crane auxiliaries, and port authority office buildings simultaneously.

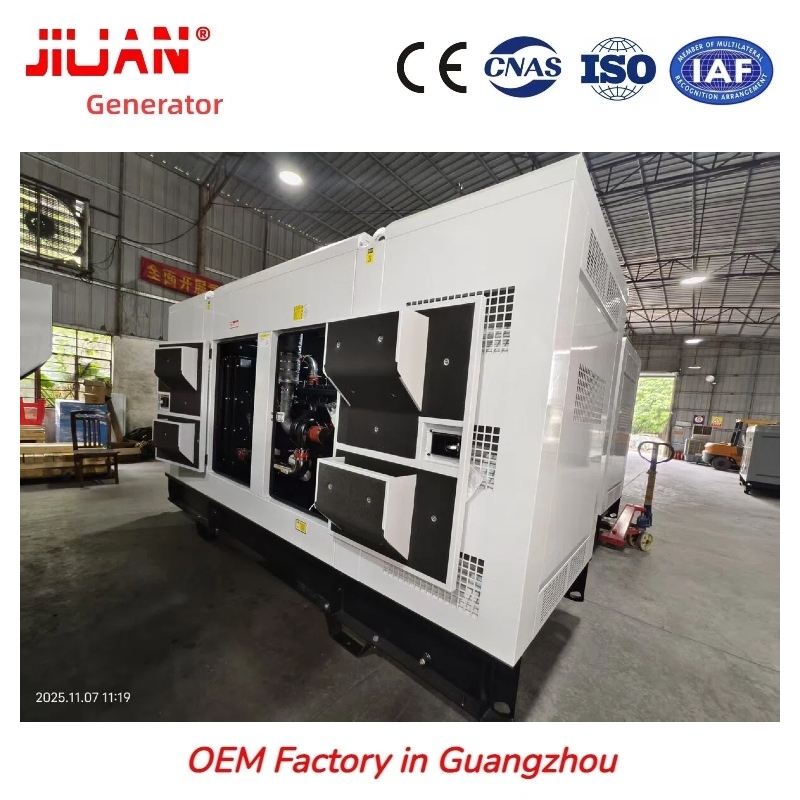

The 350KVA reefer power generator CDW350KVA silent canopy is fabricated from 3mm cold-rolled steel treated with pickling, phosphating, electrophoresis, and electrostatic powder coating — four-layer anti-corrosion for sustained resistance to salt air, coastal humidity, and dockside chemical exposure. The 60mm flame-retardant acoustic insulation and eight high-damping rubber shock absorbers control running noise to ≤72dB(A) at 7m, meeting port zone noise compliance at coastal industrial facilities.

The Weichai 350KVA silent genset CDW350KVA carries approximately 28-30% lower initial procurement cost versus equivalent Perkins or Cummins 350KVA units. Weichai WP10D320E200 parts are available at distributor hubs in Singapore, Dubai, Mombasa, and Santos — covering the key port city corridors where CDW350KVA installations are concentrated. Jiuan Generator provides an 18-month or 2,000-hour warranty with technical support and parts dispatch within 48 hours.

Technical Specifications

5 Core Competitive Advantages

1. 320kW Gross / 250KW Prime — 28% Reserve for Reefer Compressor DOL Starting
The 312KVA prime power generator CDW350KVA WP10D320E200 produces 320kW gross at 1500RPM — 70kW above prime rated load. This 28% reserve continuously absorbs the 3-7× rated current drawn by reefer container compressor motors during direct-on-line start, maintaining stable bus voltage across all active reefer sockets at a container terminal simultaneously.

2. ≤197g/kWh HPCR + 24L Sump — Lowest TCO for Round-the-Clock Port Prime Operation
The Weichai WP10D320E200 genset HPCR injection maintains ≤197g/kWh across both full-load and partial-load overnight port cycles. The 24L oil sump with 500-hour service intervals cuts scheduled maintenance frequency to twice yearly — reducing planned downtime and service cost at port terminals that cannot afford extended generator outages.

3. 4-Stage Anti-Corrosion Canopy — Salt Air and Dockside Environment Durability
The 350KVA Weichai diesel generator CDW350KVA canopy undergoes pickling, phosphating, electrophoresis, and electrostatic powder coating on 3mm cold-rolled steel. This four-stage process resists salt fog, coastal humidity, and dockside chemical exposure — maintaining structural integrity and surface finish through multi-year outdoor deployment at container terminals and coastal industrial parks.

4. ATS 3-6 Second Auto-Start — Cold Chain Protection During Grid Dip at Peak Reefer Load
The 350KVA reefer power generator CDW350KVA ATS controller detects grid failure and starts the engine within 3-6 seconds. This fast switchover covers the UPS battery gap during peak reefer load switching — protecting temperature-sensitive pharmaceutical cargo and high-value frozen food shipments from cold chain interruptions at port logistics yards.

5. 28-30% Procurement Cost Advantage + Weichai WP10 Port City Parts Network
The Weichai 350KVA silent genset CDW350KVA costs approximately 28-30% less than equivalent Perkins or Cummins units. WP10D320E200 parts are stocked at distributor hubs in Singapore, Dubai, Mombasa, Lagos, and Santos — keeping parts lead time under 48 hours at active port projects across Africa, the Middle East, and Southeast Asia.

Application Scenarios

The CDW350KVA 312KVA prime power generator serves the following prime and standby applications:

• Port container terminal reefer power — 24/7 prime supply for refrigerated container sockets at dockside yards and cold logistics hubs
• Export processing zone and blast freezer facility — prime for industrial cold store compressor arrays and loading dock distribution
• Off-grid mining camp and hard-rock site — WP10 handles high dust, altitude, and heat at remote open-pit operations
• Grade-A hospital emergency standby — 250KW covers surgery block, ICU, radiology, and critical care loads
• Data centre and commercial complex standby — fast ATS auto-start for tenant power continuity and SLA compliance

OEM Customization Service

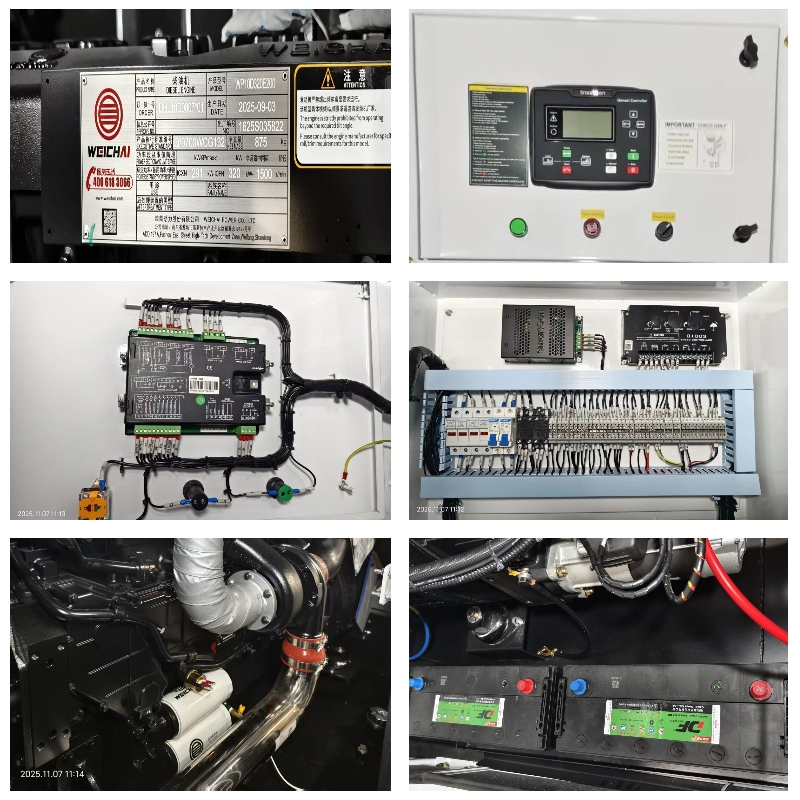

Jiuan Generator provides OEM configuration for the CDW350KVA Weichai WP10D320E200 genset, including ultra-silent canopy (≤65dB@7m), DSE/SmartGen with RS-485/MODBUS, 4G IoT remote monitoring, multi-unit parallel control cabinet, 1200-3500L external fuel tank for 72h+ autonomy, and custom RAL canopy color with customer brand labelling. All CDW350KVA units pass full-load factory burn-in and SGS performance inspection before dispatch.

FAQ

Q: How many refrigerated containers can the CDW350KVA power simultaneously?
A: The 350KVA Weichai diesel generator CDW350KVA delivers 250KW ISO8528 PRP prime — enough for approximately 50 × 40-foot reefer containers at 5KW each. The WP10D320E200 320kW gross output provides 28% reserve to absorb compressor startup peaks, maintaining stable bus voltage across all active reefer sockets without tripping the main distribution breaker.

Q: What makes the CDW350KVA suitable for long-term deployment at coastal port installations?
A: The 350KVA reefer power generator CDW350KVA canopy is treated with four-layer anti-corrosion coating — pickling, phosphating, electrophoresis, and electrostatic powder coat. This treatment resists the salt fog, coastal humidity, and dockside chemical exposure encountered at container terminals, maintaining structural integrity and weathertight sealing through multi-year outdoor deployment at port facilities.

Q: How does HPCR injection reduce total operating cost for 24/7 port prime use?
A: The Weichai 350KVA silent genset CDW350KVA WP10D320E200 HPCR system adjusts injection pressure electronically at every load point, holding ≤197g/kWh whether the terminal is running at full reefer capacity or reduced overnight load. For a port running prime power 20+ hours daily, this efficiency translates directly to lower annual diesel cost versus conventional mechanical-injection gensets of equivalent output.
