320KW Food Processing Park and Cold-Chain Logistics Prime Power — Cummins 6ZTAA13-G2, 192g/kWh, PICC-Insured
The CDC450KVA is Jiuan Generator's 450KVA Cummins diesel generator for large food processing industrial parks, cold-chain logistics hubs, and regional distribution centers requiring 24-hour continuous prime power. Powered by the genuine DCEC Dongfeng Cummins 6ZTAA13-G2 engine, the unit delivers 320KW/400KVA ISO8528 PRP prime and 360KW/450KVA standby, with CE and ISO8528 certification for global food industry procurement and export compliance.

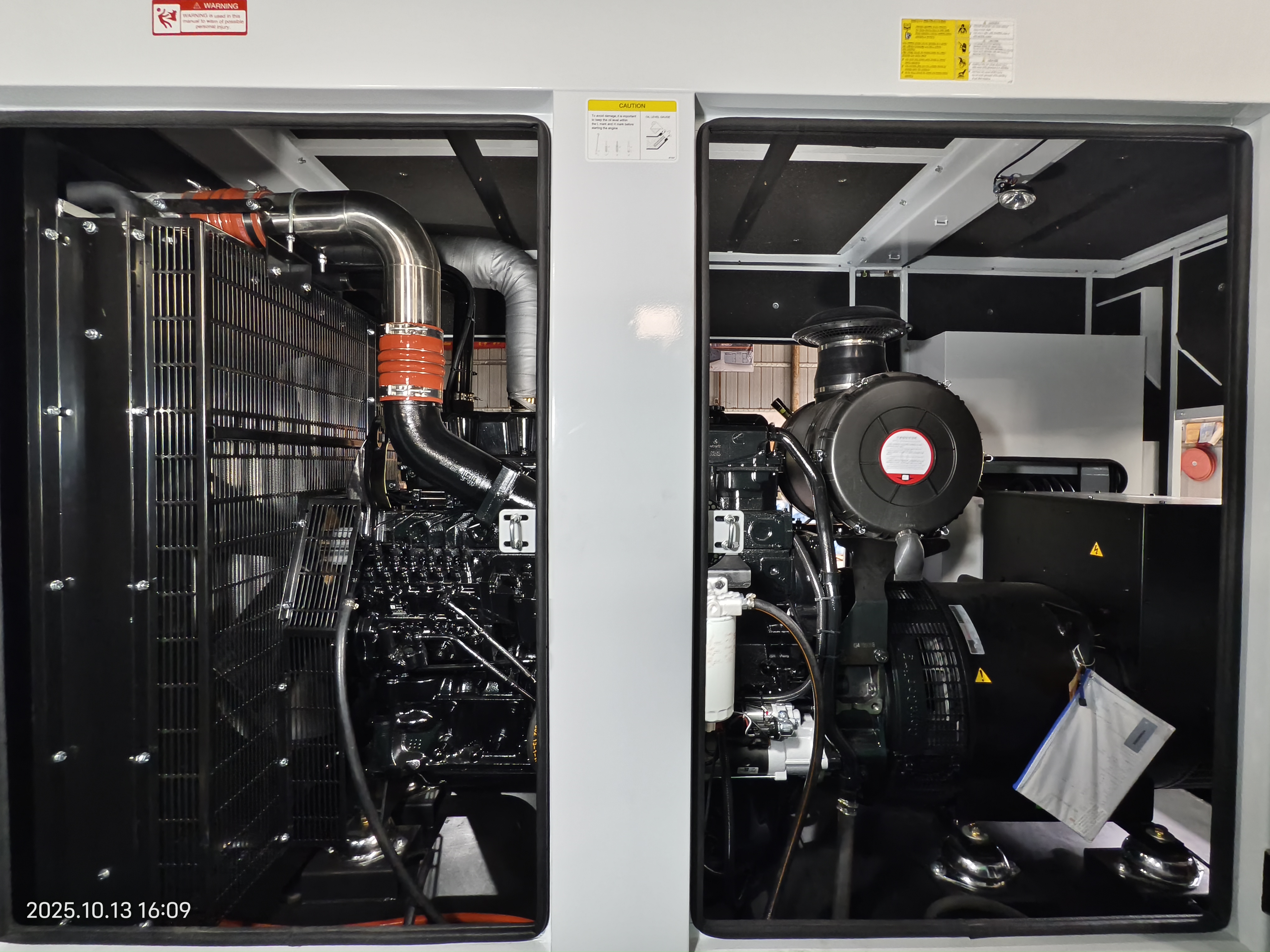

The Cummins 6ZTAA13-G2 genset is an inline six-cylinder turbocharged and intercooled diesel with 13L displacement, 130×163mm bore and stroke, 17:1 compression ratio, Holset turbocharger, and PD high-pressure mechanical fuel pump with GAC electronic governing at 1500RPM. Engine certified standby output reaches 365KW. With a full-load specific fuel consumption of 192-194g/kWh, the 6ZTAA13-G2 achieves class-leading fuel economy for 24-hour food plant continuous prime duty cycles.

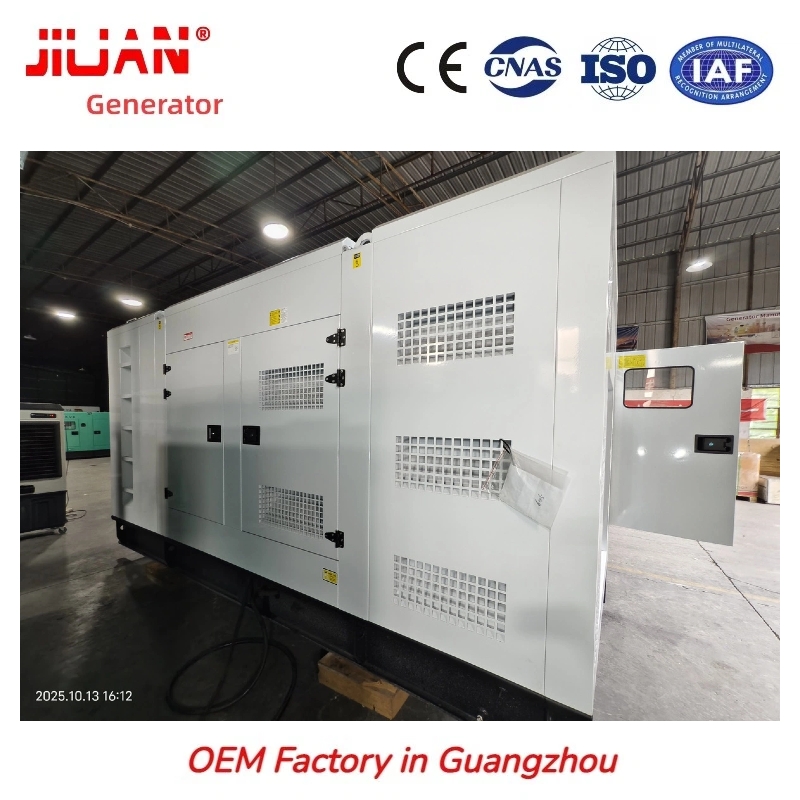

The 360KW standby power generator CDC450KVA canopy is manufactured from 3mm cold-rolled steel with double-layer epoxy zinc-rich anti-rust coating for long-term outdoor placement at coastal and tropical food processing facilities. Multi-layer flame-retardant acoustic foam, impedance composite muffler duct, and an industrial compound silencer reduce operating noise to ≤72dB(A) at 7m. The 950L integrated base fuel tank delivers over 8 continuous full-load running hours before refuelling.

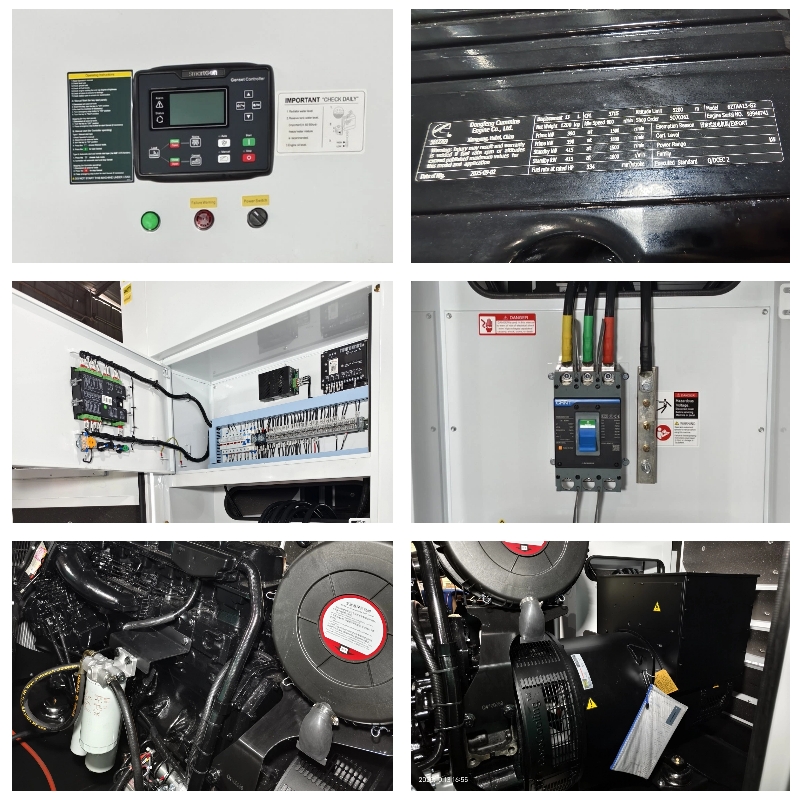

The 450KVA silent diesel generator CDC450KVA all-copper brushless H-class alternator delivers ±1% steady-state voltage regulation and THD <3%, protecting food plant PLC systems, refrigeration compressor VFD drives, HVAC inverters, and precision temperature control equipment from voltage disturbances during load switching. The DeepSea DSE7320 controller provides auto-start within 3-6 seconds of grid failure with reserved ATS installation space for seamless mains-to-genset switchover.
The Cummins 13L diesel genset CDC450KVA carries a factory-registered ESN (Engine Serial Number) and is load-bank tested at 0%-25%-50%-75%-full prime load and 110% overload before shipment, with test video and PDF load report shipped with every unit. Warranty is underwritten by PICC (People's Insurance Company of China), with air-freight core parts in 3-5 days via the worldwide official Cummins after-sales service network.
Technical Specifications
| Parameter |
Value |
| Model |
CDC450KVA |
| Prime Power (PRP) |
320KW / 400KVA |
| Standby Power (ESP) |
360KW / 450KVA |
| Engine Model |
Cummins 6ZTAA13-G2 (DCEC) |
| Engine Certified Standby |
365KW @ 1500RPM |
| Cylinders / Displacement |
Inline 6 / 13L |
| Bore × Stroke |
130mm × 163mm |
| Compression Ratio |
17:1 |
| Fuel System |
PD High-Pressure + GAC Governor |
| Aspiration |
Holset Turbo + Air-Air Intercooler |
| Fuel Consumption |
192–194g/kWh (full prime load) |
| Lube Oil Filters |
Fleetguard Triple Filter Assembly |
| Starting / Cold Start |
24V DC; -15°C standard (-32°C optional) |
| Maintenance / Overhaul |
400hr interval / >15,000hr overhaul life |
| Frequency / Speed |
50Hz / 1500RPM; 60Hz / 1800RPM |
| Phase / Wires |
3-Phase, 4-Wire |
| Voltage Output |
415/240V, 400/230V, 380/220V |
| Power Factor |
0.8 Lagging |
| Voltage Regulation |
±1% steady-state; THD <3% |
| Alternator |
Stamford / Leroy-Somer / Tooplinks |
| Insulation / Protection |
Class H / IP23 (IP55 optional) |
| Canopy |
3mm steel; acoustic foam; 950L base fuel tank |
| Noise / Ambient |
≤72dB(A) @ 7m / -25°C to +48°C |
| Dimensions (L×W×H) |
4300 × 1600 × 2250mm / 4,300kg |
| ATS Response |
3-6 seconds (optional ATS) |
| Certifications |
CE, ISO8528, GB/T2820 |
5 Core Competitive Advantages
1. 6ZTAA13-G2 13L 365kW Certified / 192-194g/kWh — Class-leading Fuel Economy for 24-hour Food Plant Continuous Prime Duty
The Cummins 6ZTAA13-G2 genset CDC450KVA 13L inline-6 engine with Holset turbocharger and PD high-pressure fuel injection delivers a 365KW certified standby output and 192-194g/kWh specific fuel consumption — class-leading fuel economy among same-power generators for 24-hour continuous prime at food processing plants, cold storage warehouses, and regional logistics hubs operating non-stop production shifts.
2. 3mm Steel + 950L Base Tank + ≤72dB — 8+ Hour Fuel Autonomy for Food Park and Logistics Hub Prime
The 360KW standby power generator CDC450KVA 3mm cold-rolled steel canopy with double-layer epoxy zinc-rich coating and multi-layer flame-retardant acoustic foam achieves ≤72dB(A) at 7m — meeting noise regulations for food industrial park installation. The 950L integrated base fuel tank provides 8+ continuous full-load running hours, reducing refuelling interruptions in continuously operating food production facilities.
3. All-Copper Brushless ±1% / THD<3% — Ultra-clean Power for Food Plant PLCs, VFD Drives, and Temperature Control Systems
The 450KVA silent diesel generator CDC450KVA all-copper brushless H-class alternator delivers ±1% steady-state voltage regulation and THD <3%, providing stable pure sine-wave power for food plant PLC automation systems, refrigeration compressor VFD drives, and precision temperature control equipment. The brushless design removes carbon brush maintenance requirements, cutting scheduled downtime in continuously operating food production facilities.
4. ESN Traceability + PICC Insurance + 0%-110% Staged Load Test — Certified Quality for Food Industry Procurement Compliance
Every 450KVA Cummins diesel generator CDC450KVA carries a factory-registered ESN and is load-bank tested at 0%-25%-50%-75%-full prime load and 110% overload before shipment. Test video and PDF load report are shipped with every unit. Warranty is underwritten by PICC (People's Insurance Company of China), with air-freight core parts in 3-5 days via the global official Cummins after-sales service network.
5. 5-Language Manual + Free Service Tools + Extreme Cold OEM — Full Support for Overseas Food Plant Engineering Teams
The Cummins 13L diesel genset CDC450KVA ships with a 150-page maintenance manual in five languages (Chinese, English, Spanish, French, Russian), wiring diagrams, and a 3D disassembly animation CD. Jiuan Generator supplies service wrenches and testing meters. For cold-zone logistics hubs, jacket water heater and automatic louvers are available; for coastal food facilities, C5-M anti-corrosion painting is standard.
Application Scenarios
The CDC450KVA 360KW standby power generator serves food processing, cold-chain logistics, and medium-large industrial prime and ATS standby applications:
-
Food processing industrial park prime — 320KW continuous prime for refrigeration compressors, processing machinery, and hygiene ventilation
-
Cold-chain logistics hub prime — non-stop power for refrigerated warehouse HVAC, loading docks, and inventory systems
-
Large retail distribution centre ATS — 360KW ESP for freezer systems, goods elevators, and management systems
-
Manufacturing plant and industrial park prime — 320KW for heavy DOL motor loads and shift production lines
-
Large hotel and resort complex ATS — 360KW standby for HVAC, elevators, kitchens, and guest services
OEM Customization Service
Jiuan Generator offers OEM configuration for the CDC450KVA 450KVA silent diesel generator: ATS auto-transfer cabinet (3-6 second switchover), 4G IoT remote monitoring, parallel synchronisation cabinet for multi-unit load sharing up to 1800KVA, jacket water heater for cold-zone logistics deployment, C5-M anti-corrosion painting for coastal food processing and island distribution facilities, external 2500L fuel tank for extended autonomy, custom RAL canopy colour and brand labelling, and 60Hz/440V adaptation for international grid specifications.
