Mission-critical power projects demand more than a specification sheet. When a data centre operator, mining contractor, or hospital facilities manager evaluates a 500KVA industrial diesel generator, the decisive question is whether the supplier can verify every claim — engine authenticity, factory test results, canopy build quality, and post-delivery support. JIUAN Power addresses this with the CDC500KVA: a genuine Cummins 6ZTAA13-G2 engine with unique traceable ESN, documented staged load tests, and a 5-year full-unit warranty backed by PICC — establishing the CDC500KVA as a PICC warranty generator with China's national insurance institution as underwriter.

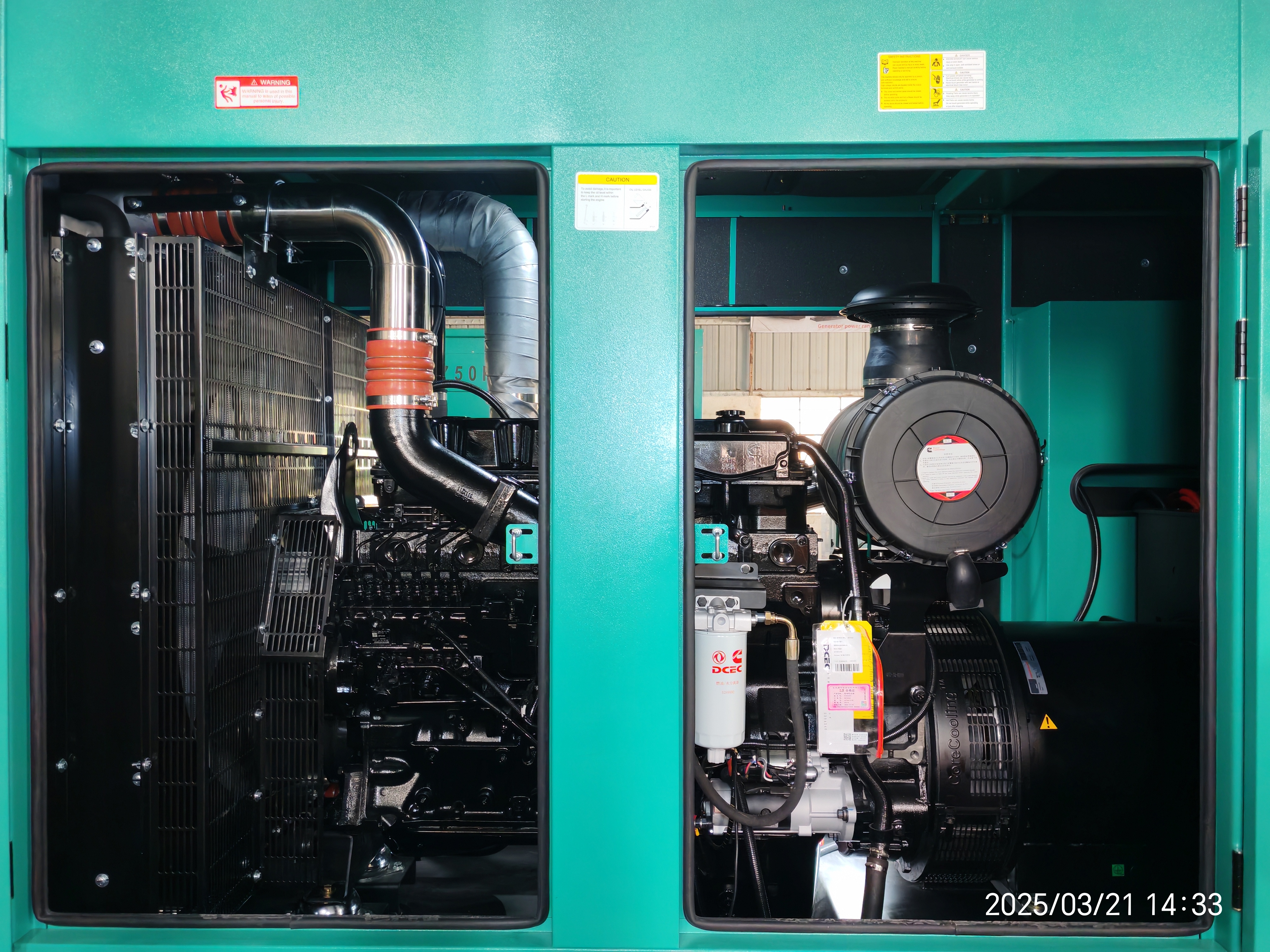

The Cummins 6ZTAA13-G2 engine powering the CDC500KVA is a 13L six-cylinder turbocharged and aftercooled diesel running at 1500RPM on 50Hz duty. Its 130×163mm bore×stroke with 17:1 compression delivers prime power 438KVA (350KW continuous) and 400KW/500KVA standby output at 0.8 power factor. Specific fuel consumption of ≤197g/kW·h delivers 89–93L/h at full prime load. Electronic governing holds speed regulation within ±0.25%, keeping frequency stable through motor-block start transients and sudden load transfer events that stress lesser-specified units in the same output range.

JIUAN Power backs every CDC500KVA PICC warranty generator with a 5-year or 2,000-hour full-unit warranty, whichever comes first. The coverage is underwritten by PICC (People's Insurance Company of China), converting a standard manufacturer pledge into a third-party insurance instrument — the policy issued by JIUAN Power's freight forwarder is available to buyers on request before order confirmation. Under this 5-year warranty, replacement core components are dispatched by expedited air freight and arrive at buyer locations worldwide within 3–5 business days.

Before shipment, each CDC500KVA 500KVA Cummins diesel generator runs a full staged load test sequence at 0%, 25%, 50%, 75%, 100%, and 110% of rated prime output on the load bank. JIUAN Power records this test on video and compiles a PDF load analysis report covering output voltage, current, frequency stability, oil pressure, coolant temperature, and fuel consumption at each stage — both documents ship with the unit as standard. The Cummins 6ZTAA13-G2 engine carries a unique ESN traceable directly to Cummins' global parts database.

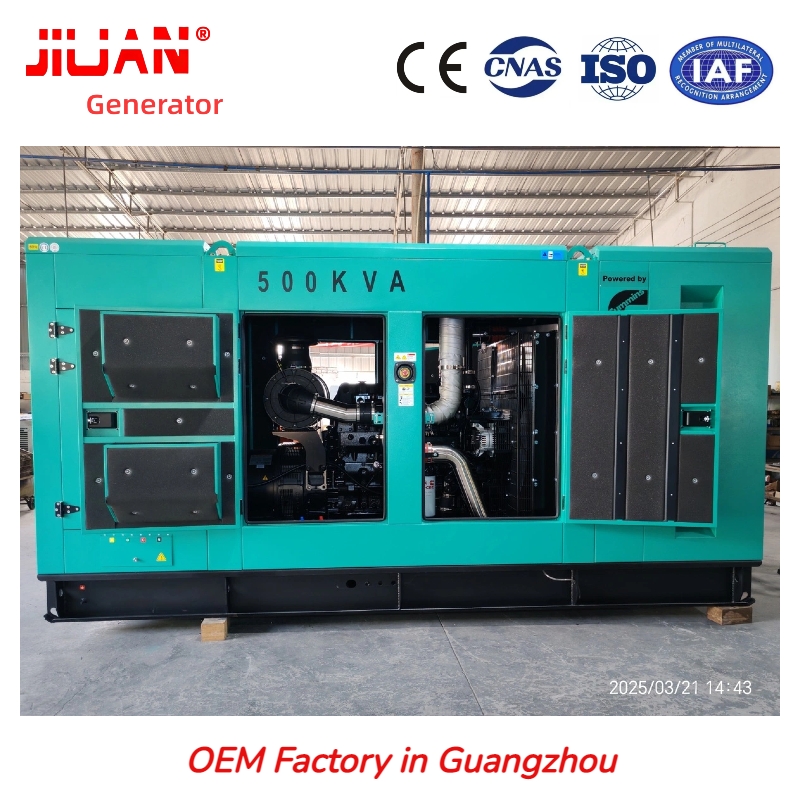

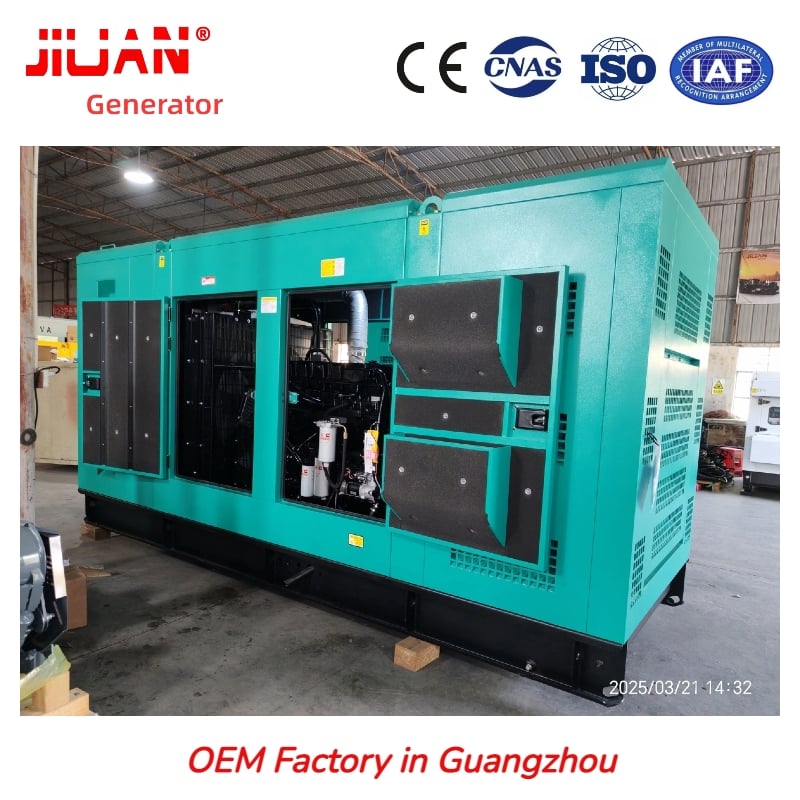

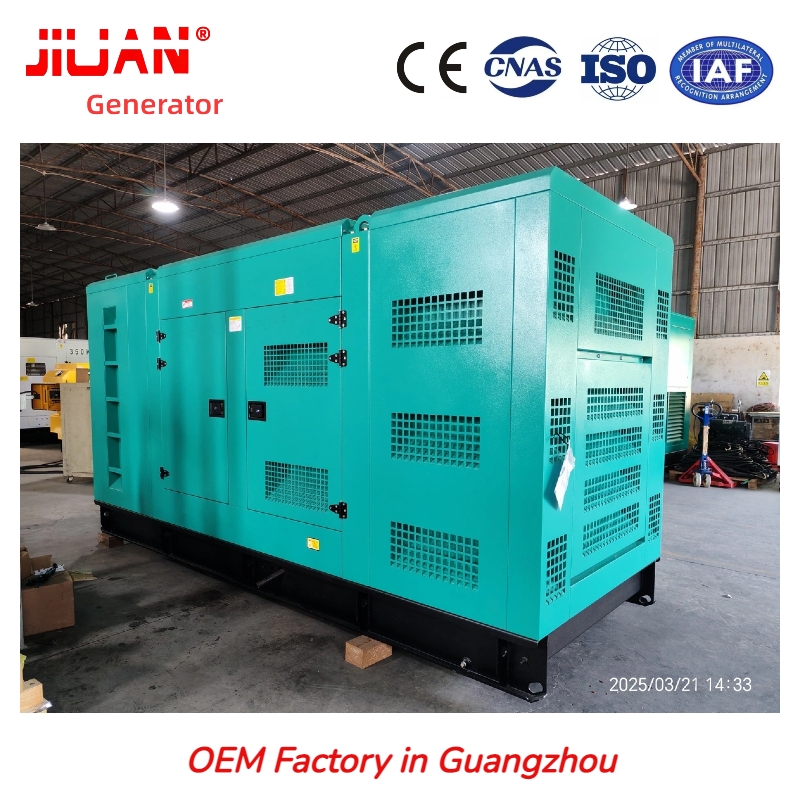

① Premium Soundproof Canopy — 2.5mm Cold-Rolled Steel, 120°C Electrostatic Powder Coat, 40kg/m³ Rock Wool, 65–68dB @ 7m

JIUAN Power fabricates CDC500KVA canopy panels from 2.5mm cold-rolled steel sheet — a dimension verifiable with a vernier caliper at handover. Panels undergo 120°C high-temperature electrostatic powder coating with high-gloss paint, producing a rust and scratch resistant finish that outlasts standard air-dried paint in coastal and tropical environments. Interior acoustic treatment uses 40kg/m³ high-density flame-retardant rock wool, holding broadband noise to 65–68dB at 7m — within commercial and residential noise ordinance limits for urban pad and rooftop installations. The pure copper stator winding is visually sectioned to allow on-site weight verification before acceptance.

② Extreme Environment Configurations — Siberian Cold Pack, ISO 12944 C5-M Corrosion Protection Treatment

JIUAN Power offers factory-configured options for deployment conditions outside standard tropical or temperate ranges. For frigid cold regions including Siberia and Northern Europe, the Cummins 6ZTAA13-G2 engine package receives engine jacket water heaters, diesel fuel heaters, and automatic thermal louver systems — maintaining reliable cold-weather starting performance in sub-zero field conditions. For coastal island sites with salt mist and persistent high humidity, the full CDC500KVA enclosure receives ISO 12944 C5-M corrosion protection treatment, the highest marine durability class for long-term outdoor exposure in coastal and offshore environments.

③ Complete Technical Documentation — 5-Language Manual, 3D Exploded Views, Anti-Counterfeiting Parts Photography, Free Tool Kit

JIUAN Power ships every CDC500KVA with a 150-page maintenance manual in five languages (Chinese, English, Spanish, French, and Russian), full electrical wiring diagrams, and a CD containing 3D disassembly animation. Product listings display 3D rendered exploded views and close-up anti-counterfeiting photography of genuine Cummins parts, giving procurement engineers a CAD-level inspection experience before order placement. Free accessories include a dedicated service wrench set and calibrated test meters. One-stop customs clearance certificate application is available for buyers in jurisdictions requiring additional import documentation for this industrial diesel generator.

JIUAN Power supplies the CDC500KVA industrial diesel generator with prime power 438KVA output for continuous-duty sites including mid-size data centres, cold-chain logistics facilities, commercial construction hoist systems, and offshore support platforms. As emergency standby backup, the 500KVA Cummins diesel generator covers hospital critical care circuits, hypermarket refrigeration groups, hotel HVAC and lift distribution boards, and municipal water treatment installations. Export demand runs consistently through Southeast Asia, the Middle East, West Africa, and Latin American infrastructure corridors.

Q: How does the PICC warranty obligation work for overseas buyers of this 500KVA Cummins diesel generator?
A: JIUAN Power's 5-year warranty for the CDC500KVA is backed by an insurance policy issued through JIUAN Power's freight forwarder and underwritten by PICC (People's Insurance Company of China), qualifying the unit as a PICC warranty generator under third-party insurance terms rather than a standard manufacturer pledge. Buyers can request the policy document before order confirmation. Replacement core components under warranty are dispatched by air freight and reach destinations worldwide within 3–5 business days.

Q: What staged load test documentation is delivered with each CDC500KVA unit?
A: JIUAN Power supplies every unit with a shipment video of the full staged load test sequence — 0%, 25%, 50%, 75%, 100%, and 110% of rated prime power 438KVA on the load bank — plus a PDF load analysis report documenting measured output, fuel consumption, oil pressure, and coolant temperature at each stage. Both documents are standard deliverables for the Cummins 6ZTAA13-G2 engine-based CDC500KVA, not optional add-ons.
