350KW Mine Camp and Mineral Processing Plant Continuous Prime Power — Cummins 6ZTAA13-G2, 720L Tank, PICC-Insured

The CDC500KVA is Jiuan Generator's 500KVA Cummins diesel generator for large open-pit mine camps, quarry extraction sites, and mineral processing plants requiring 24-hour continuous prime power in remote and high-altitude locations. Powered by the genuine DCEC Dongfeng Cummins 6ZTAA13-G2 engine, the unit delivers 350KW/438KVA ISO8528 PRP prime and 400KW/500KVA standby, with CE and ISO8528 certification for global mining and minerals sector procurement compliance.

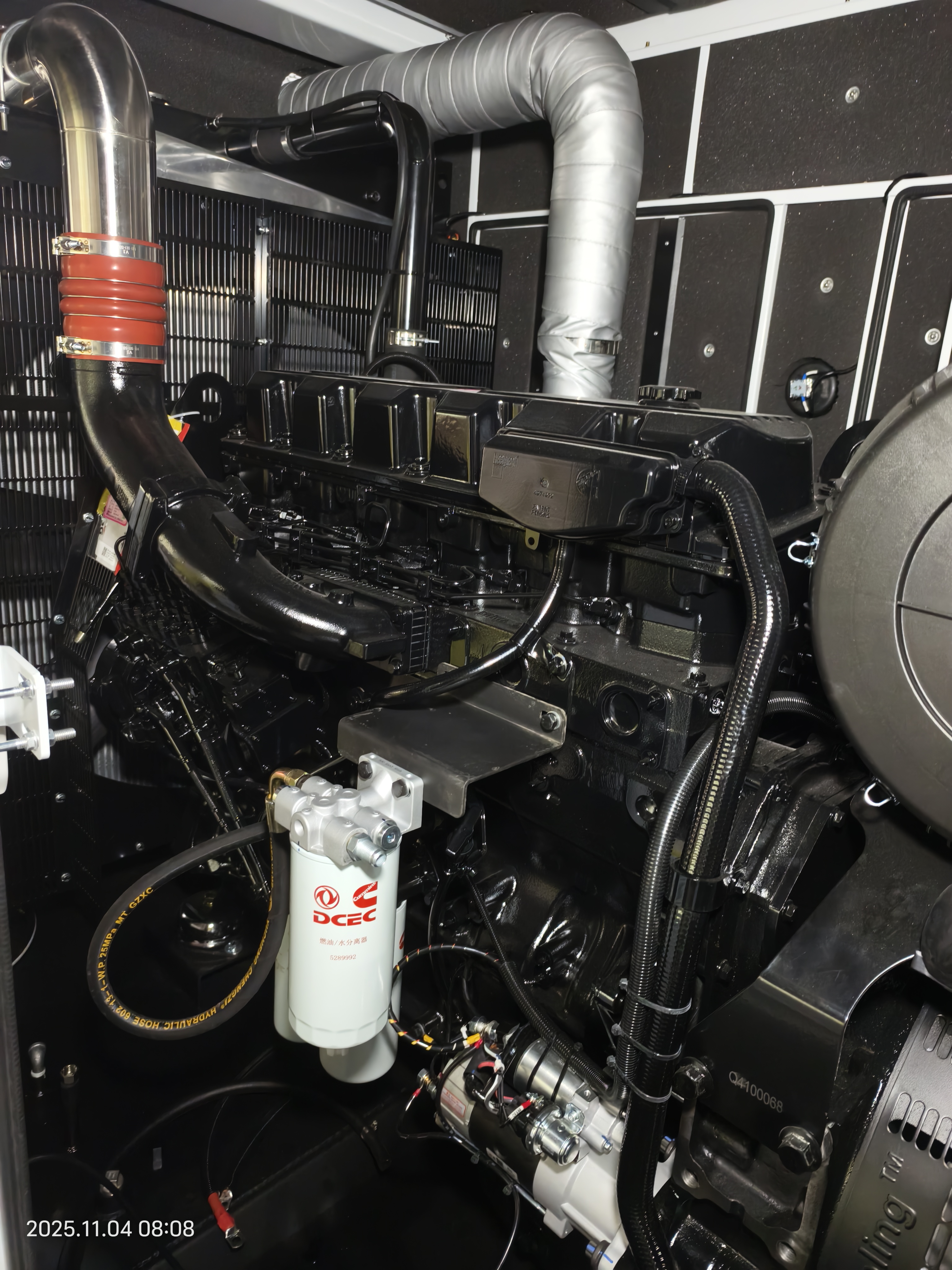

The Cummins 6ZTAA13-G2 genset CDC500KVA delivers inline six-cylinder turbocharged and intercooled power with 13L displacement, 130×163mm bore and stroke, and 17:1 compression ratio. PD high-pressure mechanical fuel pump with GAC electronic governor maintains speed regulation ≤3% under sudden load changes from mine site motor starts. The Holset turbocharger sustains output at elevated mine-site altitudes and +50°C desert environments across Africa, the Middle East, and Australia.

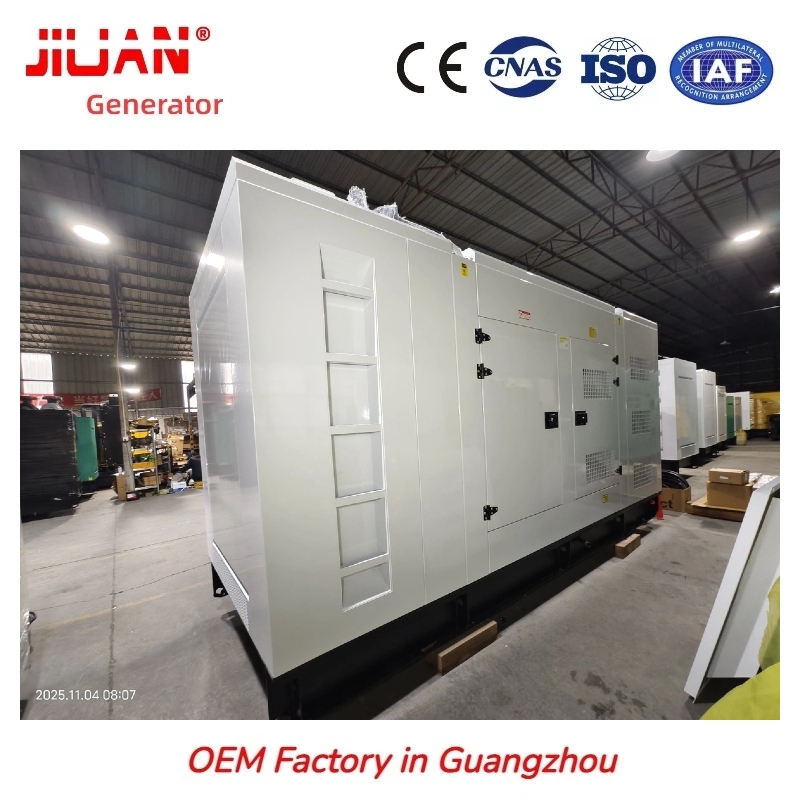

The 400KW standby power generator CDC500KVA canopy is built from 3mm cold-rolled steel with double-layer epoxy zinc-rich anti-rust coating and multi-layer flame-retardant acoustic foam, rated ≤72dB(A) at 7m — meeting noise limits for mine camp residential zones. The 720L integrated base fuel tank delivers approximately 7.5 continuous full-load running hours, reducing fuel resupply requirements at remote open-pit mine and quarry installations.

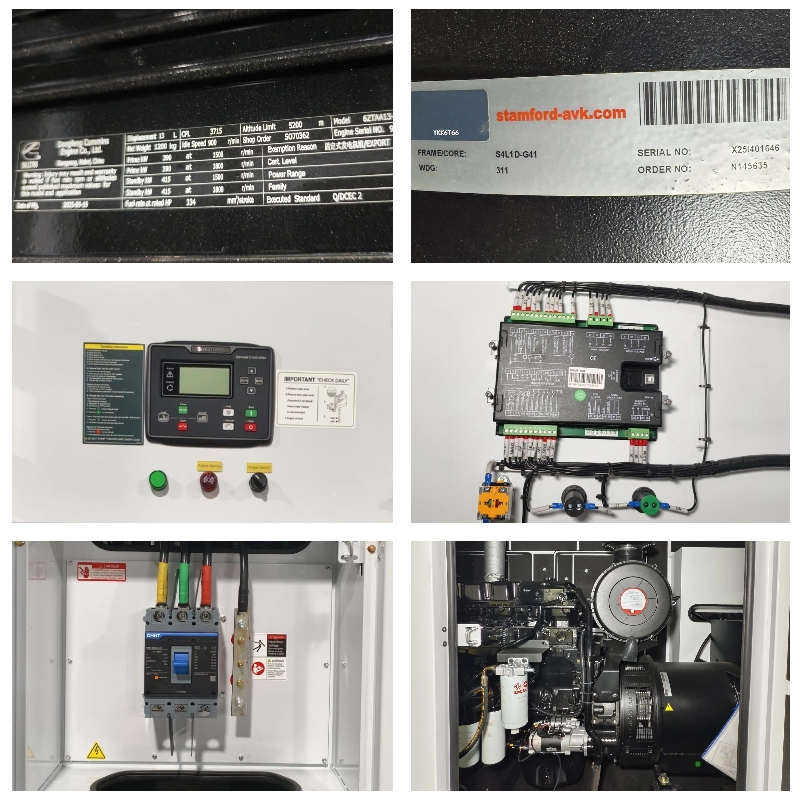

The 500KVA silent generator CDC500KVA all-copper brushless H-class alternator delivers ±1% steady-state voltage regulation and THD <3%, protecting mine-site PLC systems, crusher drive VFDs, submersible pump soft-starters, ventilation fan inverters, and precision survey instruments from voltage disturbances during DOL motor starting cycles. The DeepSea DSE7320 controller provides auto-start within 3-6 seconds of grid failure, with reserved ATS installation space for seamless mains-to-genset switchover.

The 350KW prime power generator CDC500KVA carries a factory-registered ESN (Engine Serial Number) and is load-bank tested at 0%-25%-50%-75%-full prime load and 110% overload before shipment. Test video and PDF load report accompany every unit. Warranty is underwritten by PICC (People's Insurance Company of China), providing verified quality assurance for overseas mine procurement teams, with air-freight core parts delivered worldwide in 3-5 days.

Technical Specifications

5 Core Competitive Advantages

1. 6ZTAA13-G2 13L / Holset Turbo / ≤197g/kWh — Sustained Prime Output for High-Altitude Mine Sites and Desert Installations
The 500KVA Cummins diesel generator CDC500KVA 13L inline-6 with Holset turbocharger and PD high-pressure fuel injection delivers 350KW ISO8528 PRP prime at ≤197g/kWh. The Holset turbocharger compensates for altitude derating at Andean and African highland mine sites, maintaining reliable output through long continuous production shifts with stable frequency and voltage for sensitive mine-site instrumentation.

2. 720L Base Tank / ≤72dB / 3mm Steel Canopy — 7.5-Hour Fuel Autonomy for Remote Mine Camp Prime
The 400KW standby power generator CDC500KVA 3mm cold-rolled steel canopy with double-layer epoxy zinc-rich coating and flame-retardant acoustic foam achieves ≤72dB(A) at 7m — meeting camp zone environmental noise regulations. The 720L integrated base fuel tank supports approximately 7.5 full-load hours, reducing fuel logistics trips at remote open-pit mine, quarry, and mineral processing plant sites.

3. All-Copper Brushless ±1% / THD<3% — Clean Power for Mine PLCs, Crusher VFDs, and Pump Soft-Starters
The Cummins 6ZTAA13-G2 genset CDC500KVA all-copper brushless H-class alternator delivers ±1% steady-state voltage regulation and THD <3%, providing clean sine-wave power for mine PLC automation, crusher drive VFDs, submersible pump soft-starters, and ventilation fan inverters. The brushless design removes carbon brush maintenance from planned service schedules at remote mine installations.

4. ESN Traceability + PICC Insurance + 0%-110% Staged Load Test — Mining Procurement Quality Verification
Every 500KVA silent generator CDC500KVA carries a factory-registered ESN and is load-bank tested at 0%-25%-50%-75%-full prime load and 110% overload before shipment. Test video and PDF load report are shipped with every unit. Warranty is underwritten by PICC (People's Insurance Company of China), with air-freight core parts in 3-5 days via the global official Cummins service network.

5. 5-Language Manual + Free Service Tools + Extreme Cold/Coastal OEM — Mine Site Global Field Support
The 350KW prime power generator CDC500KVA ships with a 150-page maintenance manual in five languages (Chinese, English, Spanish, French, Russian), wiring diagrams, and a 3D disassembly animation CD. Jiuan Generator supplies service wrenches and testing meters. For Andean and Siberian mine sites, jacket water heater and automatic louvers are available; for coastal and offshore operations, C5-M anti-corrosion painting is standard.

Application Scenarios

The CDC500KVA 400KW standby power generator serves mine camp, mineral processing, and heavy industrial prime and standby applications:

• Mine camp continuous prime — 350KW for ventilation fans, dewatering pumps, workshops, crushers, and camp services
• Mineral processing plant prime — non-stop power for grinding mills, conveyors, and dewatering systems
• Quarry and construction site prime — 350KW for crushers, batch plants, and heavy machinery
• Refinery and industrial complex ATS — 400KW ESP for process safety systems and control rooms
• Remote infrastructure and telecoms hub ATS — 400KW standby for off-grid base stations and repeater sites

OEM Customization Service

Jiuan Generator offers OEM configuration for the CDC500KVA 500KVA Cummins diesel generator: ATS auto-transfer cabinet (3-6 second switchover), 4G IoT remote monitoring, parallel synchronisation cabinet for multi-unit load sharing up to 2000KVA, jacket water heater for cold mine-site deployment, C5-M anti-corrosion painting for coastal and offshore operations, external 3000L fuel tank for extended site autonomy, custom RAL canopy colour and brand labelling, and 60Hz/440V adaptation for international grid specifications.

FAQ

Q: Why is the CDC500KVA 500KVA Cummins diesel generator well-suited for mine camp and mineral processing plant continuous prime power?
A: The 500KVA Cummins diesel generator CDC500KVA delivers 350KW ISO8528 PRP prime with a 6ZTAA13-G2 Holset-turbocharged inline-6 at ≤197g/kWh. The 720L base tank provides 7.5+ hours of fuel autonomy at remote sites, ≤72dB(A) canopy meets camp zone regulations, and the -25°C to +50°C ambient covers global mine environments from Siberian to Sub-Saharan Africa installations.

Q: What makes the CDC500KVA 400KW standby power generator suitable for crusher VFD and mine ventilation loads?
A: The 400KW standby power generator CDC500KVA all-copper brushless H-class alternator provides ±1% steady-state voltage regulation and THD <3%, maintaining stable frequency and voltage during heavy DOL motor starts from crusher drives, submersible pumps, and mine ventilation loads. The GAC electronic governor maintains speed regulation ≤3% under sudden mine-site motor switching events.

Q: What PICC insurance and load test documentation does the CDC500KVA provide for mining procurement?
A: The 350KW prime power generator CDC500KVA ships with a factory-registered ESN, a 0%-110% staged load bank test video and PDF report, and PICC (People's Insurance Company of China) warranty insurance documentation for procurement compliance records. Air-freight core warranty parts reach most countries in 3-5 days via the official worldwide Cummins service network. CE and ISO8528 certificates are provided for local authority submissions.
