Industrial plant managers running 24-hour production lines need prime-power generators with quantifiable fuel economy, traceable build quality, and a dependable service network. The JIUAN Power 500KVA Cummins diesel generator — Model CDC500KVA, powered by the Cummins 6ZTAA13-G2 13L engine from DCEC's ISO 9001-certified Wuhan facility — is rated 438KVA prime (350KW) and 500KVA standby (400KW), purpose-configured for factories, industrial parks, and mining sites requiring uninterrupted power across multiple production shifts. Every 500KVA silent Cummins genset leaves the factory ISO 8528-tested, with step-load bank recordings and full technical documentation included at no added cost.

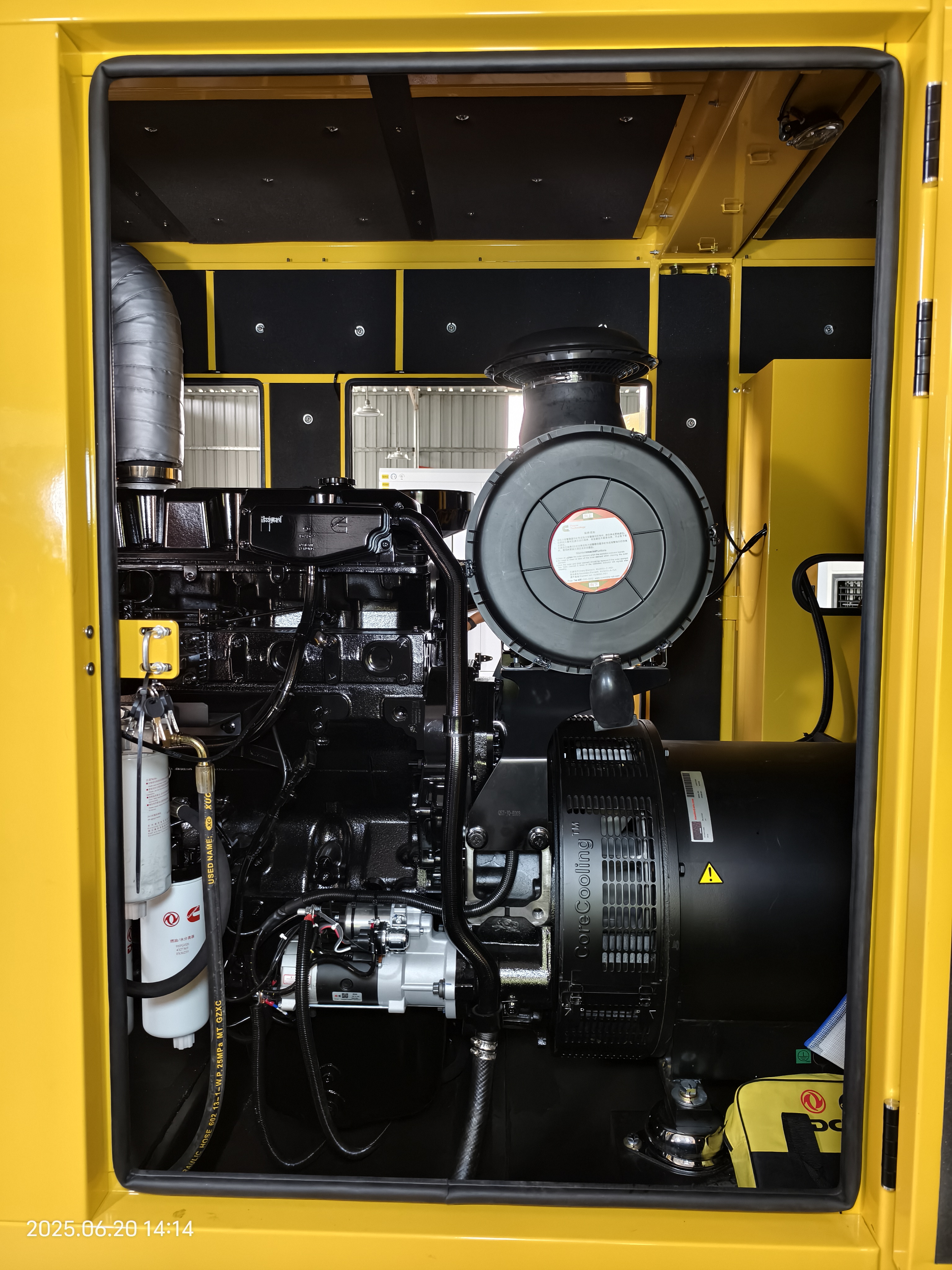

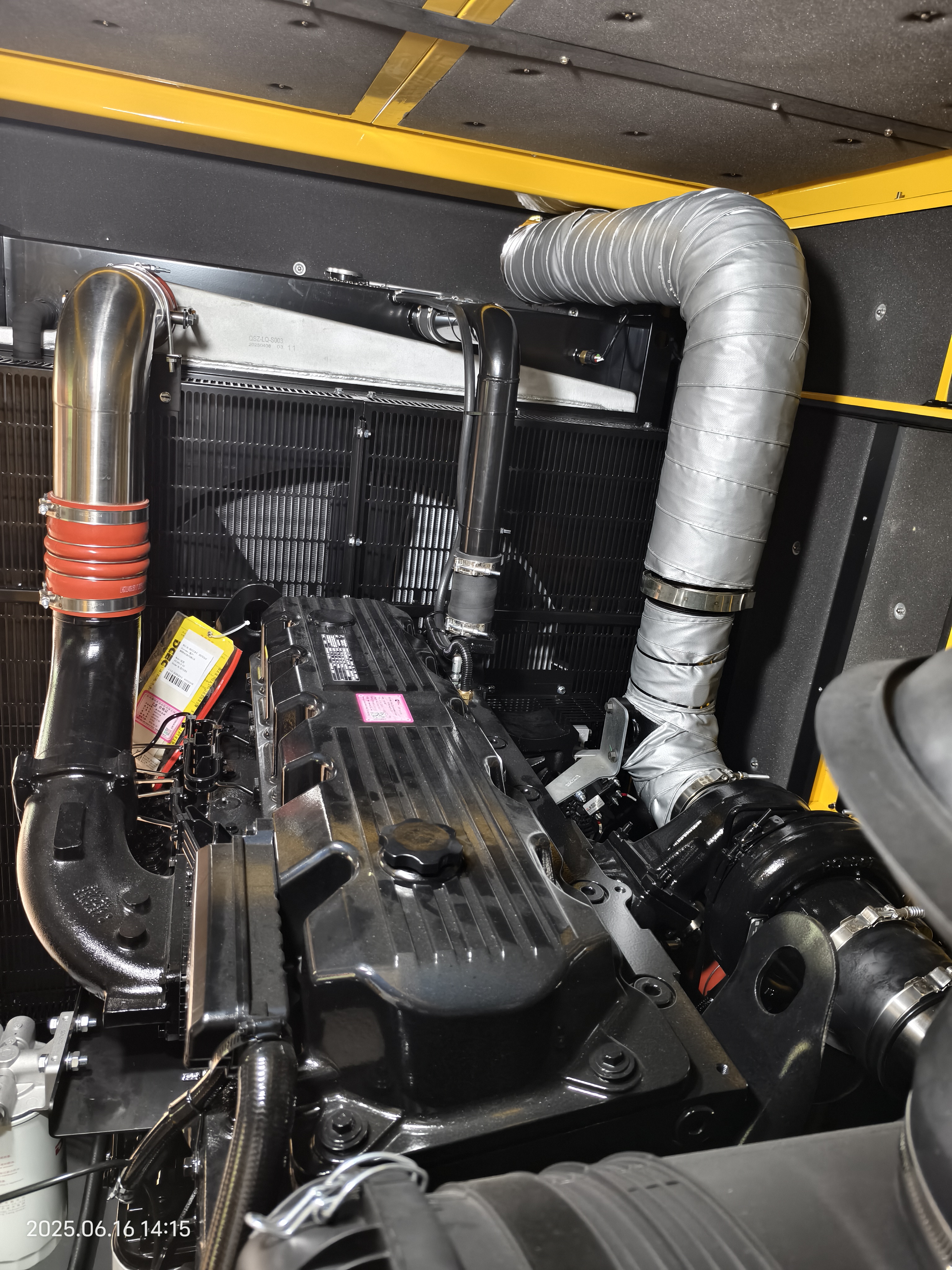

The Cummins 6ZTAA13-G2 at the core of this soundproof diesel generator is a 13-litre, inline six-cylinder platform with a bore of 130mm, stroke of 163mm, and a 17:1 compression ratio — engineered for sustained high-output cycles at a rated full-load BSFC of ≤197 g/kW·h, equivalent to approximately 89–93 litres per hour under full prime load, placing it 5–8% ahead of competing units in the same power class on fuel efficiency. An electronic governor holds engine speed variation to ≤3%, suppressing voltage and frequency drift under the sudden load swings characteristic of heavy manufacturing start-ups. This 13-litre platform incorporates 30% fewer components than class rivals, reducing potential failure points and cutting spare-parts inventory requirements for plant maintenance departments.

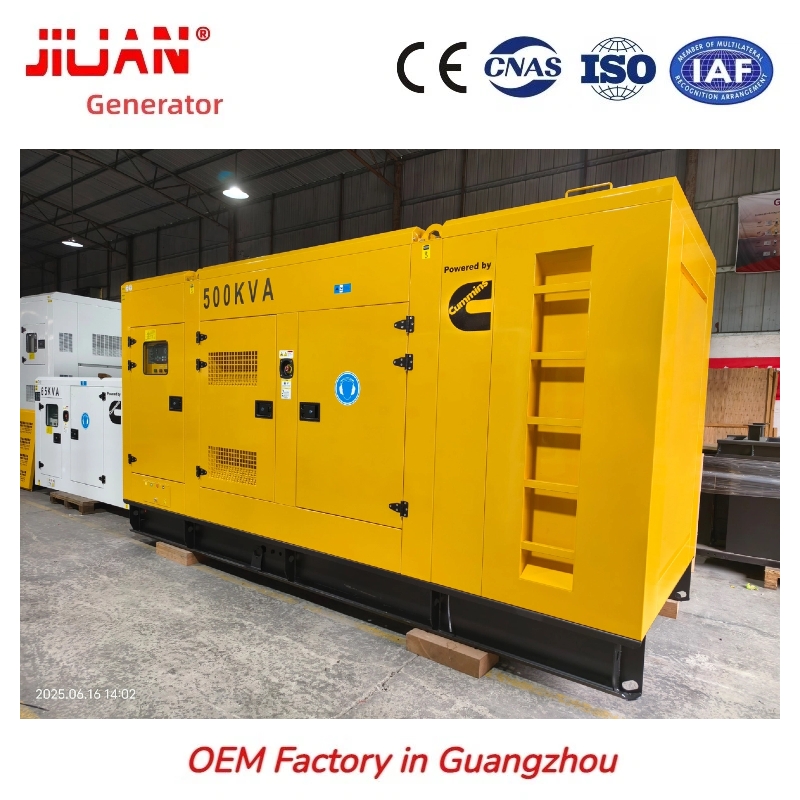

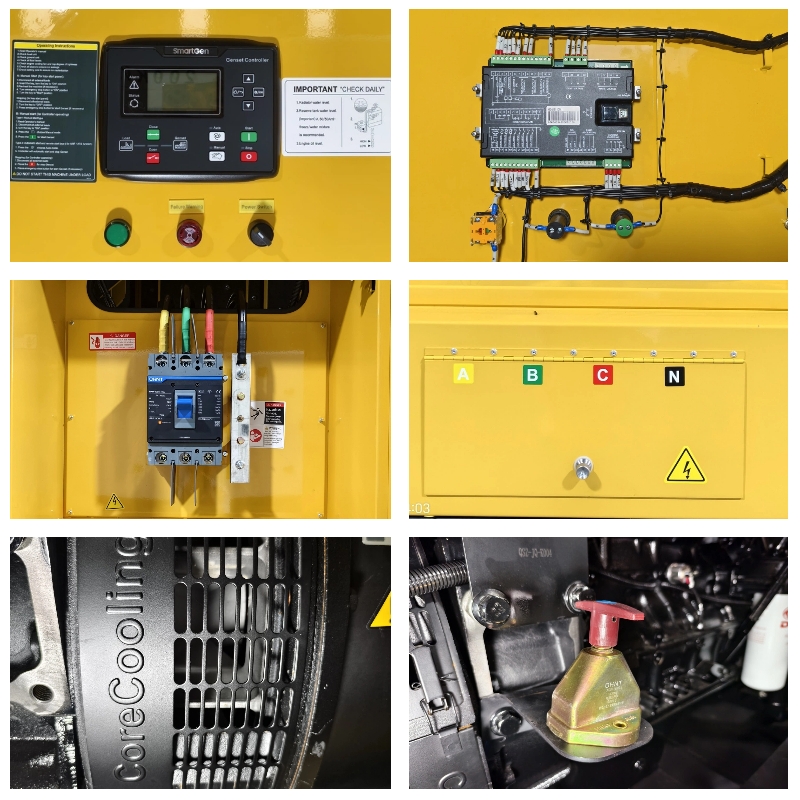

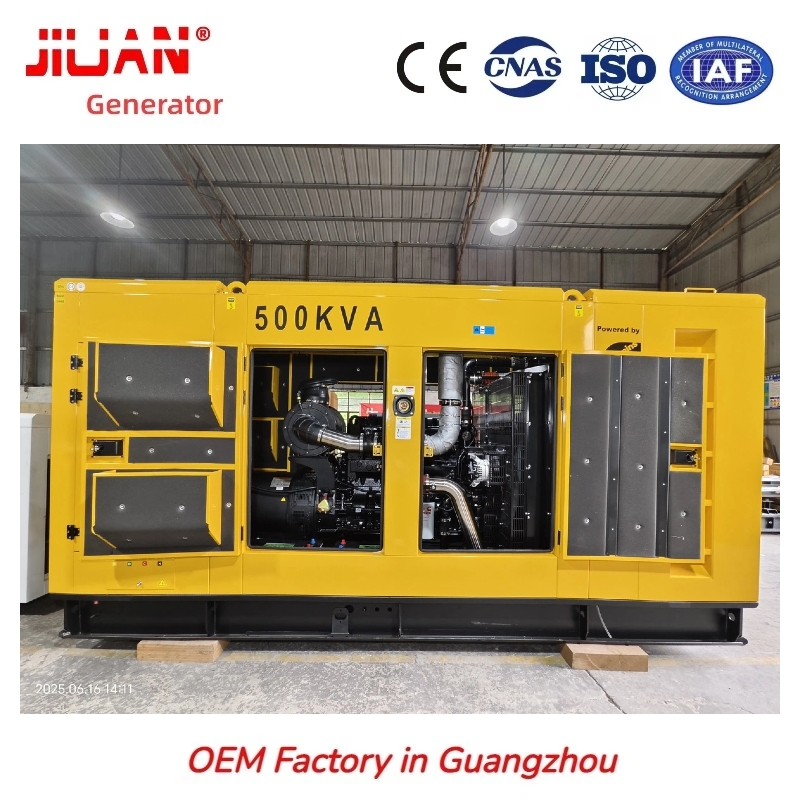

The weatherproof enclosure panels of this 500KVA Cummins diesel generator are cold-rolled from ≥2.0mm steel sheet, then kiln-cured with a 120°C powder enamel topcoat; 40 kg/m³ flame-retardant rock-wool acoustic lining reduces radiated noise to 65–68 dB(A) measured at 7 metres, meeting industrial estate and residential-adjacent zone regulations. A 720-litre integral base-frame fuel tank sustains over 7.5 hours of unattended full-load operation per fill, eliminating mid-shift refuelling interruptions. Each 500KVA silent Cummins genset ships with a DeepSea DSE7320 control panel as standard, logging voltage, current, frequency, lube-oil pressure, coolant temperature, and operating hours; a pre-wired ATS terminal bay delivers automatic mains-to-generator changeover within seconds of supply interruption.

JIUAN Power ships every CDC500KVA 500KVA Cummins diesel generator with pre-shipment step-load recordings at six duty points — 0% to 110% overload — and a PDF performance certificate confirming ISO 8528 output. Documentation includes 3D engineering assembly diagrams, macro-lens component shots for counterfeit-parts screening, and a PICC-underwritten full-unit 5-year warranty certificate recording the Cummins 6ZTAA13-G2 engine serial number for the plant's fixed-asset register. A 150-page operations and maintenance reference in five language editions (English, Arabic, French, Spanish, Portuguese), electrical wiring diagrams, a 3D disassembly animation CD, and complimentary service wrenches with testing meters complete the shipment package. Panel plate thickness is confirmed by digital vernier gauge before despatch; express air delivery routes warranty components to any major port within 3–5 working days, covering the full 5-year warranty period.

6ZTAA13-G2 13L Platform: ≤197 g/kW·h BSFC and 30% Fewer Parts for Low-Cost Industrial Prime Power

The Cummins 6ZTAA13-G2 engine in this 500KVA Cummins diesel generator achieves a rated BSFC of ≤197 g/kW·h — placing it 5–8% below the fuel consumption of competing 500KVA-class units — while its 30% reduced-component architecture limits unplanned failure events and shortens maintenance windows for plant engineering teams. JIUAN Power delivers pre-shipment step-load bank recordings with each unit, confirming ISO 8528 performance across all load stages from zero to 110% of standby rating before despatch.

PICC 5-Year Warranty, ESN Asset Traceability, and Digitally-Verified Steel Construction

Every CDC500KVA carries a PICC-underwritten 5-year warranty policy recording the Cummins engine serial number — a certificated document the buyer registers in the plant's fixed-asset O&M system. Digital vernier gauge measurement of enclosure plate thickness, 3D engineering exploded-view drawings, and close-up anti-counterfeiting component images allow procurement engineers to audit this soundproof diesel generator's material specification remotely before purchase. JIUAN Power's authorised Cummins global parts network delivers air freight warranty-covered components to any major international port within 3–5 working days.

±1% Voltage Stability, C5-M Coastal Coating, and Cold-Climate Extension Kits

The Stamford or Leroy-Somer Class H brushless synchronous alternator in this 500KVA silent Cummins genset — IP23-rated with vacuum-impregnated pure copper windings — maintains voltage regulation within ±1% and total harmonic distortion below 3%, guarding CNC machine tools, programmable logic controllers, and variable-frequency drives against power-quality faults that cause lost production. Optional C5-M anti-corrosion topcoat meets ISO 12944 for coastal and high-humidity industrial zones; cold-climate extension kits — jacket water heaters, fuel heaters, and arctic-grade lubricant packages — expand the 500KVA Cummins diesel generator's operational envelope to -30°C for high-latitude and mountain-region facilities.

The CDC500KVA 500KVA Cummins diesel generator supplies prime and standby power to automotive assembly plants, pharmaceutical processing facilities, cement production lines, cold-chain logistics centres, data halls, and industrial parks across Southeast Asia, the Middle East, Sub-Saharan Africa, and South America. JIUAN Power pre-assembles every soundproof diesel generator for despatch — only diesel fuel connection and power-cable termination are required at site.

FAQ

Q: Does the 500KVA Cummins diesel generator engine qualify for round-the-clock prime-power operation?
A: Yes. The 350KW prime rating certifies the Cummins 6ZTAA13-G2 for 24/7 continuous full-load operation. The 13L displacement, 17:1 compression ratio, and triple-filtration system are engineered for sustained high-output cycles without accelerated service intervals or thermal-degradation risks.

Q: What documentation ships with each 500KVA silent Cummins genset?
A: Every CDC500KVA is delivered with pre-shipment load bank recordings across six duty points (0%–110%), a PDF ISO 8528 compliance report, a PICC-backed 5-year warranty certificate, a 150-page five-edition service handbook, electrical wiring diagrams, a 3D disassembly animation CD, and complimentary service wrenches with testing meters. Panel plate gauge is confirmed by digital vernier calliper before despatch.
