Procurement decisions for long-service generator installations — data centres, pharmaceutical production facilities, public infrastructure — hinge on more than nameplate output rating. For buyers building a 10-to-15-year power continuity plan around a 500KVA Cummins diesel generator, the pivotal differentiators are fuel economy over cumulative runtime, overhaul interval, and the supplier accountability structure behind the warranty. JIUAN Power's 438KVA silent Cummins genset addresses all three criteria, anchored by the Cummins QSZ13-G2 engine platform's published 18,000-hour between-overhauls rating.

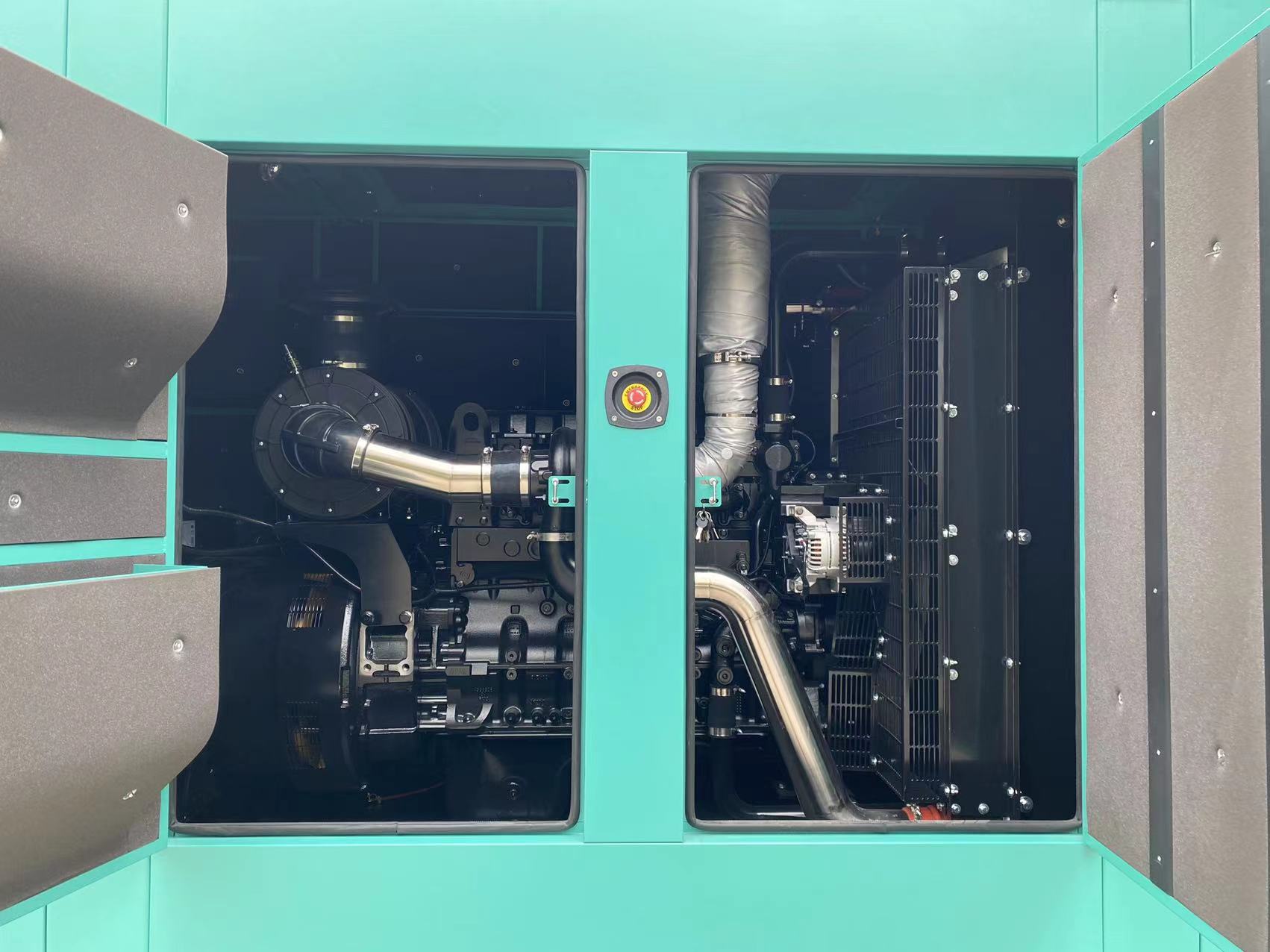

The Cummins QSZ13-G2 in this soundproof diesel generator is a 13L six-cylinder turbocharged and aftercooled unit paired with the XPI 2400-bar ultra-high-pressure electronic injection system. At 1500RPM on 50Hz duty, it delivers 350KW/438KVA continuous prime power and 400KW/500KVA standby output at 0.8 power factor. Full-load brake specific fuel consumption of 186g/kW·h sits approximately 6% below the 197g/kW·h benchmark of comparable turbocharged platforms — a gap that compounds across tens of thousands of operating hours into measurable fuel cost and CO₂ reductions. Electronic governing holds speed deviation within ±0.25%, and cold-start performance extends to -15°C without preheating; an optional water jacket heater covers -30°C northern hemisphere deployment zones.

JIUAN Power backs each 438KVA silent Cummins genset with a 5-year warranty (or 2,000 operating hours, whichever comes first) underwritten by PICC (People's Insurance Company of China). This 5-year warranty converts a supplier pledge into a third-party insurance document that buyers can review before placing an order. Every Cummins QSZ13-G2 engine carries a unique traceable ESN linking the unit to Cummins' global manufacturing record. Each unit undergoes staged load testing at 0%, 25%, 50%, 75%, 100%, and 110% of rated prime output before shipment; the full test video and PDF load analysis report are co-shipped as standard deliverables. Warranty replacement components reach buyers via air freight within 3–5 business days globally.

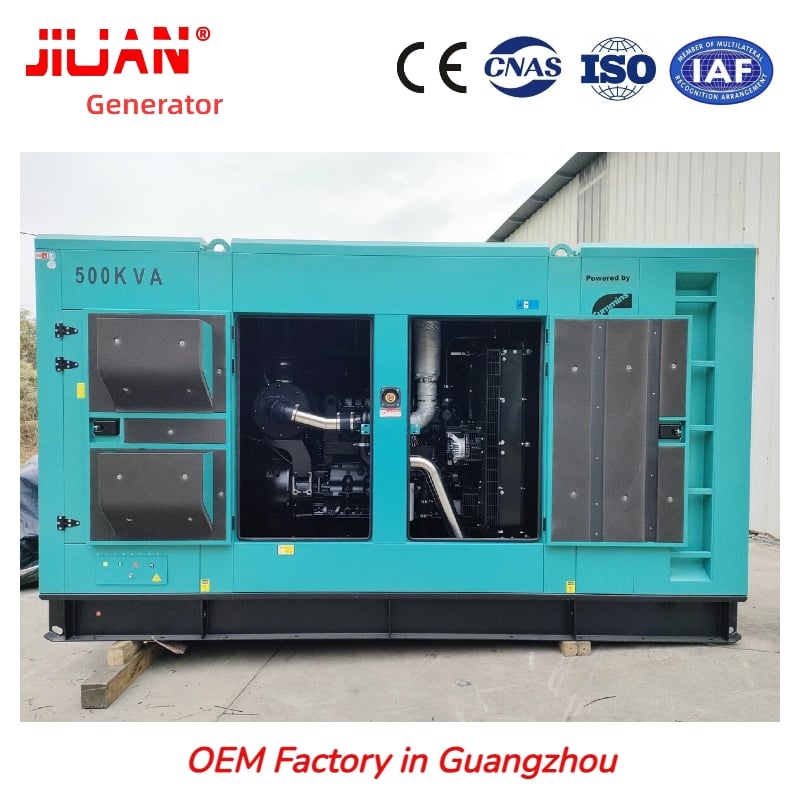

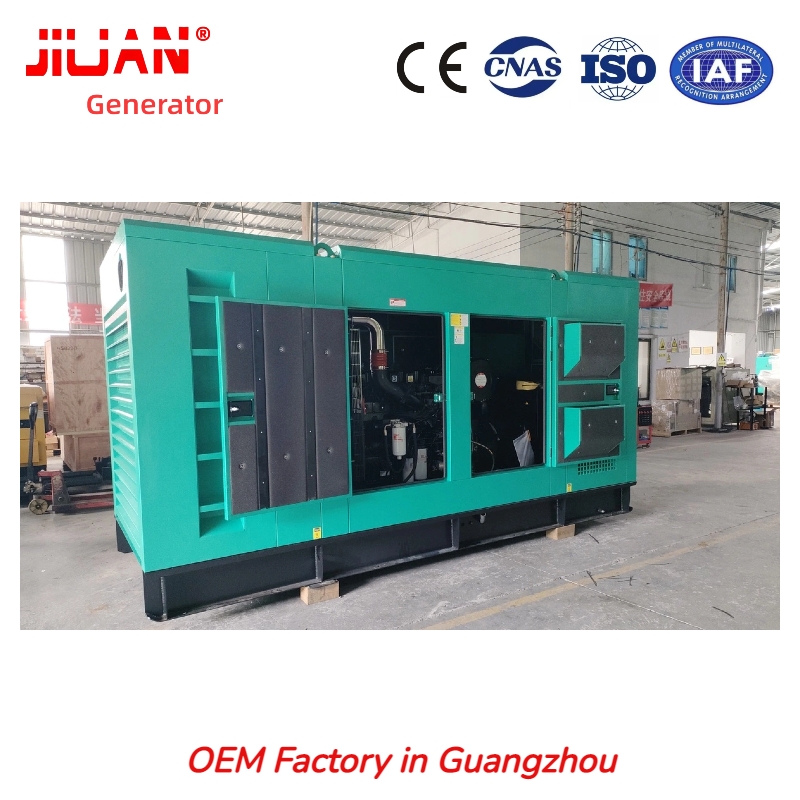

The soundproof canopy of this 500KVA Cummins diesel generator uses 2.0mm minimum cold-rolled steel sheet, processed through 120°C high-temperature electrostatic powder coating with high-gloss paint for outstanding rust and scratch resistance. Interior acoustic treatment combines 40kg/m³ high-density flame-retardant rock wool with a secondary industrial exhaust muffler, holding measured noise to 65–68dB at 7m — within commercial and urban site noise ordinance limits. Pure copper stator windings are sectioned for visual weight verification at handover; panel steel thickness is confirmed by vernier caliper as JIUAN Power's standard pre-acceptance protocol.

① Cummins QSZ13-G2 XPI Injection: 186g/kW·h Fuel Economy and 18,000hr Overhaul Interval

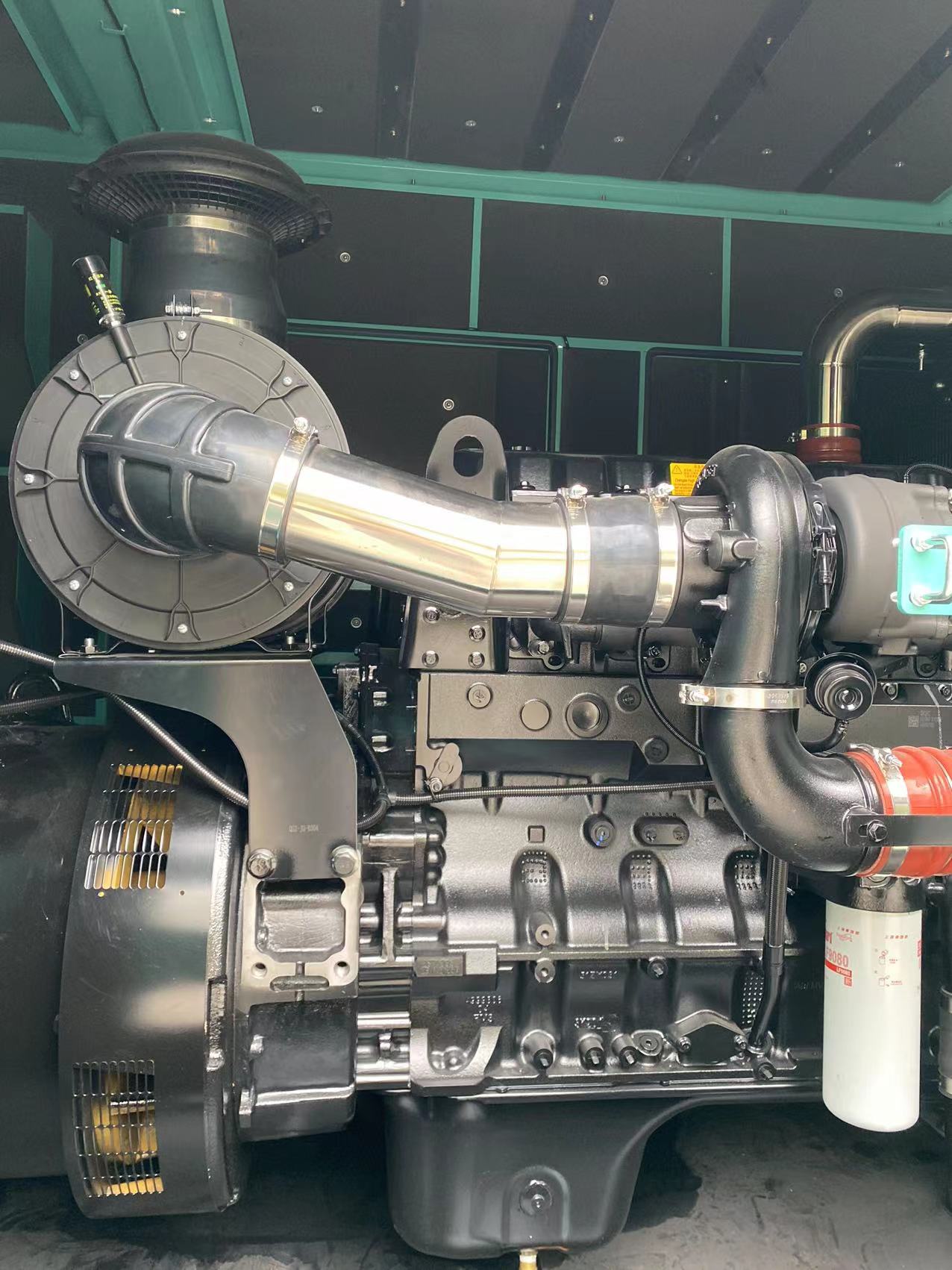

The Cummins QSZ13-G2 belongs to Cummins' commercial heavy-duty generation platform, where the XPI 2400-bar precision injection system's fine-grained fuel metering reduces combustion residue accumulation in the valve train and piston crown, extending individual component intervals between scheduled services. A heavy-duty cast-iron cylinder block and induction-hardened forged steel crankshaft underpin the 18,000-hour TBO rating. Cummins' global authorised parts distribution infrastructure — covering injectors, turbochargers, and cylinder heads — ensures rapid local sourcing at international mining, construction, and infrastructure project locations, keeping this 500KVA Cummins diesel generator fully operational across its rated service horizon without costly logistics delays.

② PICC-Backed 5-Year Warranty, ESN Traceability & Complete Pre-Shipment Documentation

JIUAN Power's 5-year warranty for each 438KVA silent Cummins genset is underwritten by PICC (People's Insurance Company of China) — making warranty obligations verifiable through a third-party insurance instrument rather than a supplier-only commitment. The insurance policy document is available for review before buyers place a formal order. Staged 0%-110% load test videos and PDF load analysis reports ship as standard co-delivered documents, not optional extras. Complimentary accessories include dedicated service wrenches, calibrated test meters, a 150-page maintenance manual in five languages (Chinese, English, Spanish, French, and Russian), electrical wiring diagrams, and a 3D disassembly animation CD. One-stop customs clearance certificate processing is available for import-documentation-intensive markets.

③ Verified Power Quality: ±1% Voltage, <3% THD, 65–68dB Noise, C5-M & Cold-Climate Options

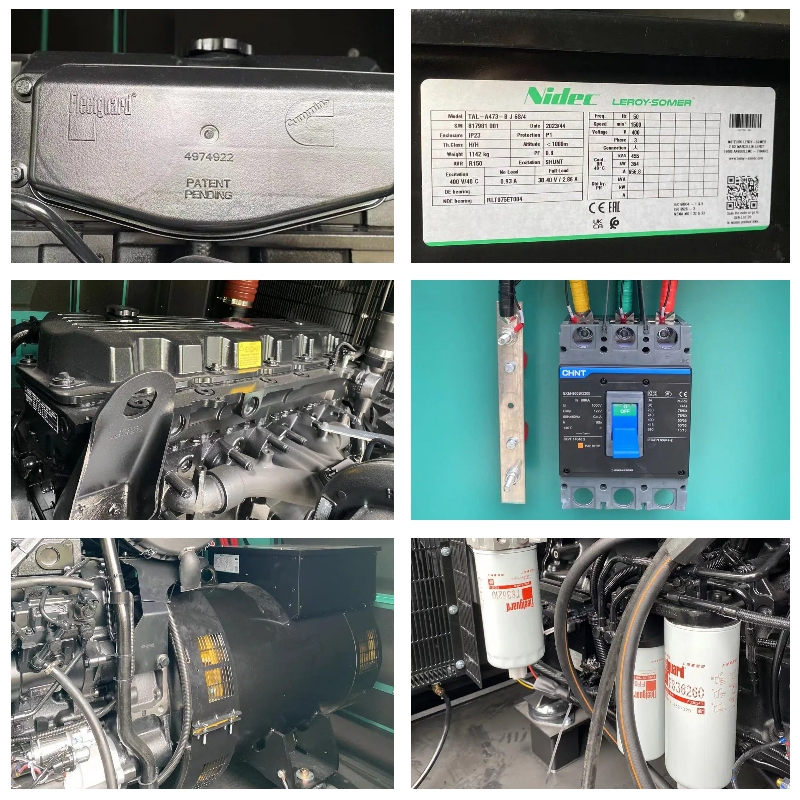

The Class H IP23 brushless synchronous alternator in this soundproof diesel generator is wound entirely with pure copper and vacuum-impregnated for moisture resistance. Steady-state voltage regulation stays within ±1% across the rated load range; output waveform distortion remains below 3% THD — within the sensitivity threshold of server room UPS systems, hospital imaging equipment, and precision laboratory instruments. For coastal deployments with salt mist and high-humidity exposure, C5-M grade anti-corrosion paint treatment is available across the full enclosure. Engine jacket water heaters, diesel fuel heaters, and automatic thermal louvers are available for frigid cold regions including Siberia and Northern Europe.

JIUAN Power supplies the CDC500KVA as 438KVA prime continuous power for cold-chain logistics centres, commercial construction hoist systems, remote telecoms base stations, and off-grid light industrial operations. As emergency standby backup, the 500KVA Cummins diesel generator covers hotel and high-rise HVAC distribution boards, hospital critical care power circuits, retail mall fire-protection and refrigeration panels, and municipal water pumping stations. Export demand concentrates in Southeast Asia, the Middle East, West Africa, and South America infrastructure pipelines.

Q: What practical fuel saving does the Cummins QSZ13-G2's 186g/kW·h rating deliver versus standard Cummins platforms?
A: This soundproof diesel generator's Cummins QSZ13-G2 engine operates at 186g/kW·h at full prime load through its XPI 2400-bar injection system — approximately 6% below the 197g/kW·h benchmark of comparable turbocharged platforms in the same displacement class. At 80% prime load over 3,000 annual operating hours, this efficiency gap translates to a measurable reduction in annual diesel procurement cost and proportionally lower CO₂ output per kWh generated.

Q: Is the PICC insurance policy document available for review before an order is placed for this 500KVA Cummins diesel generator?
A: Yes. JIUAN Power can provide the insurance policy document issued by its freight forwarder and underwritten by PICC (People's Insurance Company of China) before a buyer places a formal order for this 438KVA silent Cummins genset. The 5-year warranty covers the full unit, and replacement warranty components ship by air freight with worldwide delivery within 3–5 business days.
