36KW Telecom BTS, Clinic, and Off-Grid School Standby — ESN-Traceable, PICC-Insured, 1100kg Single-Hoist

The CDW50KVA is Jiuan Generator's 50KVA Weichai diesel generator for telecom BTS, rural clinic, and off-grid school standby power — compact sites requiring 1100kg single-hoist installation, fast ATS auto-start, and verifiable unit quality for overseas procurement. The Weichai WP2.3D48E200 four-cylinder turbocharged diesel delivers 36KW/45KVA ISO8528 PRP prime and 40KW/50KVA standby in a 2200×1000×1600mm footprint designed for BTS generator rooms, clinic basements, and remote community power installations.

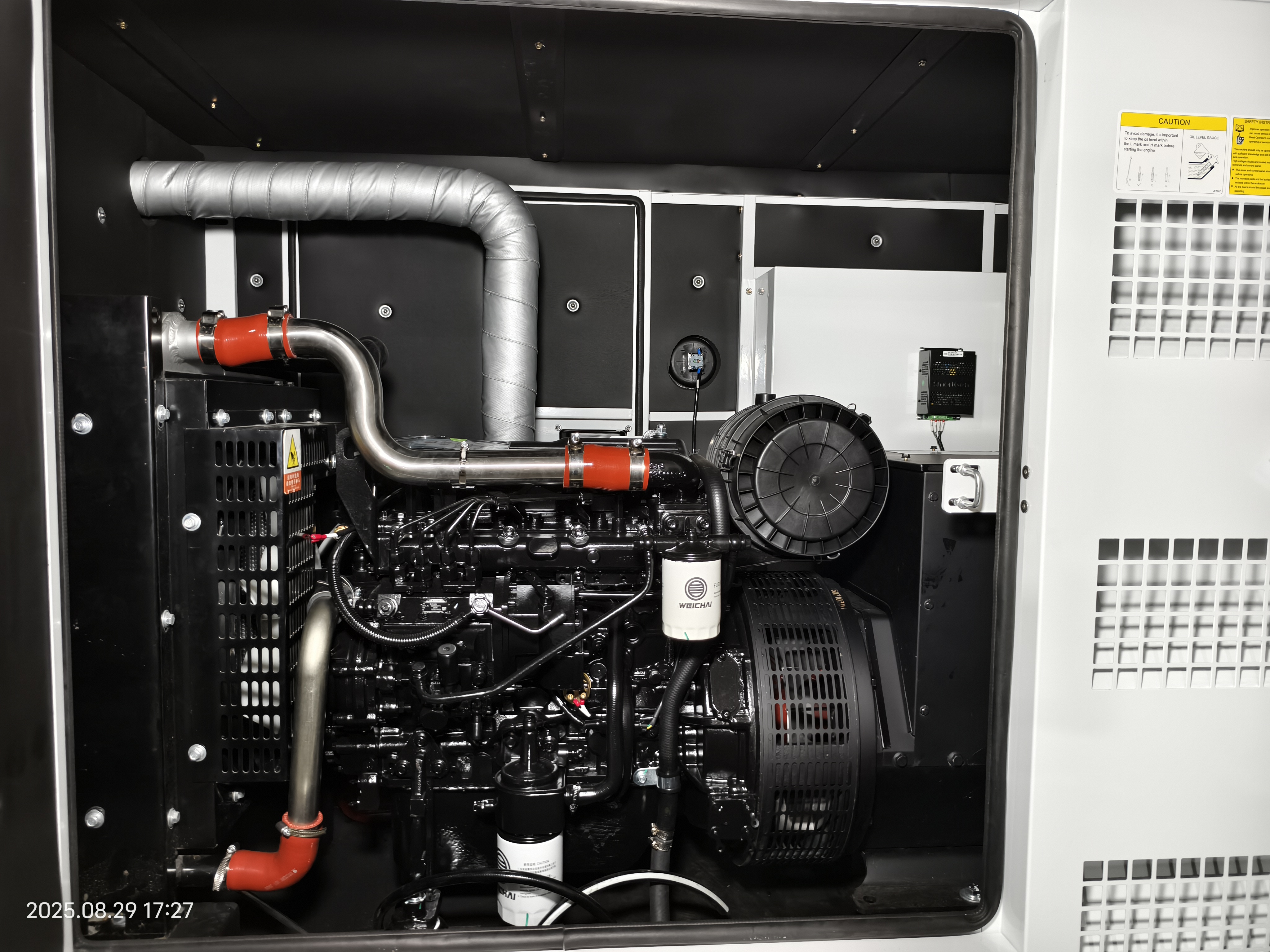

The Weichai WP2.3D48E200 genset engine is an inline four-cylinder, turbocharged and intercooled water-cooled diesel with 2.289L displacement, 89mm × 92mm bore and stroke, and 17.5:1 compression ratio. Electronic fuel injection with ECU speed control holds specific fuel consumption at ≤205g/kWh. The 8L oil sump and 5L coolant circuit support 500-hour service intervals — reducing scheduled maintenance cost and parts volume at telecom tower base and rural site installations.

The 36KW compact standby generator CDW50KVA all-copper brushless synchronous alternator is H-class insulated, delivering 400V/50Hz three-phase supply with ±1% steady-state and ±15% transient voltage regulation. The SmartGen or DSE controller provides ATS auto-start within 3-5 seconds — bridging the telecom BTS battery gap during grid outage, and maintaining supply to clinic vaccine refrigerators, diagnostic equipment, and off-grid school lighting and computer lab loads without manual intervention.

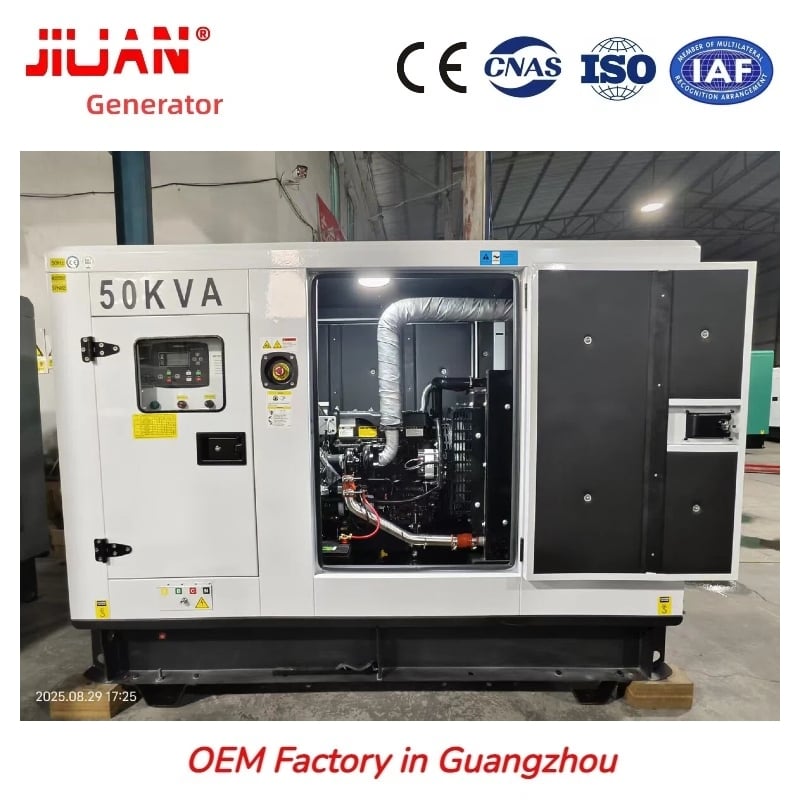

The 50KVA telecom backup generator CDW50KVA canopy is fabricated from 2.5mm cold-rolled steel with 50mm flame-retardant sound insulation and six high-damping rubber shock absorbers, achieving ≤72dB(A) at 7m for residential-area BTS noise compliance. Each CDW50KVA unit carries warranty coverage underwritten by PICC (People's Insurance Company of China), with air-freight warranty parts delivered worldwide in 3-5 days — critical response time for active telecom and clinic standby installations far from service centres.

The Weichai WP2.3 silent generator CDW50KVA delivers full pre-shipment verification: each unit has a unique traceable ESN (Engine Serial Number) and undergoes staged load testing at 0%-25%-50%-75%-full load and 110% overload on a load bank, with test video and PDF load analysis report supplied with every shipment. Jiuan Generator provides an 18-month or 2,000-hour warranty. The 5-language 150-page maintenance manual and 3D disassembly animation CD reduce installation barriers for non-professional local technicians at overseas telecom and clinic sites.

Technical Specifications

5 Core Competitive Advantages

1. 1100kg Single-Hoist Installation — No Crane for Compact BTS and Clinic Generator Rooms

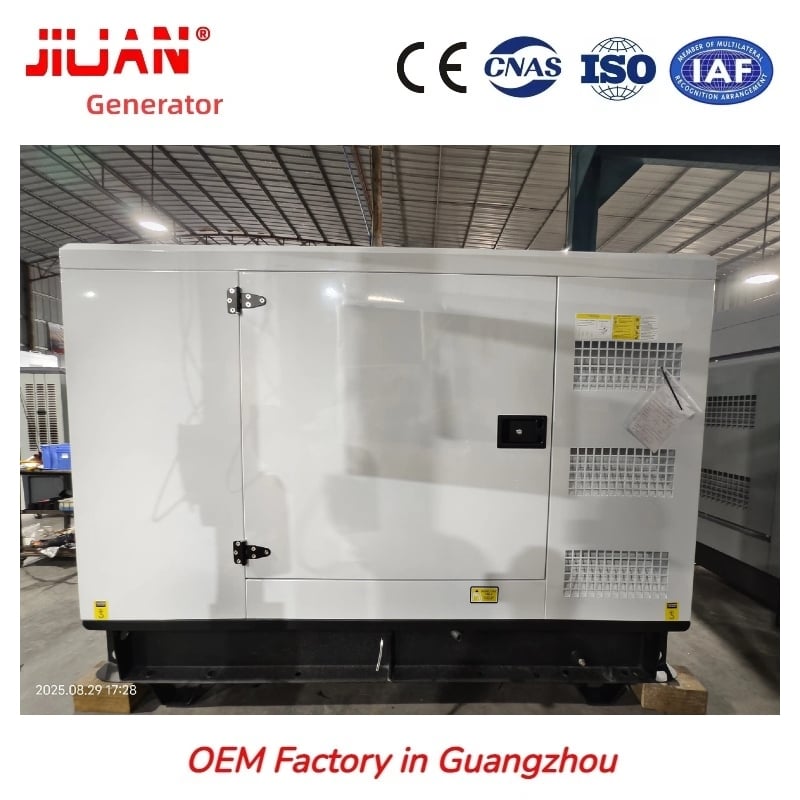

The 36KW compact standby generator CDW50KVA 1100kg weight and 2200×1000×1600mm footprint allows positioning with a single engine hoist — no crane hire required. The unit fits within compact BTS tower generator rooms, clinic basements, and remote community power rooms where heavy lifting equipment is unavailable, reducing installation cost and site preparation time significantly.

2. ESN Traceability + Staged Load Test — PICC-Backed Quality Assurance for Overseas Procurement
Every Weichai WP2.3D48E200 genset CDW50KVA carries a unique traceable ESN (Engine Serial Number) and is load-bank tested at staged steps — 0%-25%-50%-75%-full load and 110% overload — before shipment. Test video and PDF load analysis report are delivered with every unit. Warranty coverage is underwritten by PICC (People's Insurance Company of China), with air-freight parts supply worldwide in 3-5 days.

3. 17.5:1 Compression + 8L Oil Sump — Reliable Start and Low Maintenance at Remote Sites
The 50KVA Weichai diesel generator CDW50KVA WP2.3D48E200 17.5:1 compression ratio ensures reliable self-start in tropical and remote generator rooms at 35°C+ ambient without auxiliary aids. The 8L oil sump and 5L coolant circuit keep scheduled service volumes small — a practical advantage at telecom tower and clinic sites where parts shipments arrive infrequently and local technicians work without specialist support.

4. ATS 3-5 Second Auto-Start + 8-Hour Tank — Unattended BTS and Clinic Supply
The 50KVA telecom backup generator CDW50KVA SmartGen or DSE ATS controller issues a start command within 3-5 seconds of grid failure — bridging the telecom UPS battery gap and restoring supply to clinic equipment before critical loads drop. The 8-hour integrated tank covers a full overnight cycle without manual refueling or on-site attendance.

5. 5-Language Manual + 3D Animation CD — Low Installation Barrier for Local Technicians

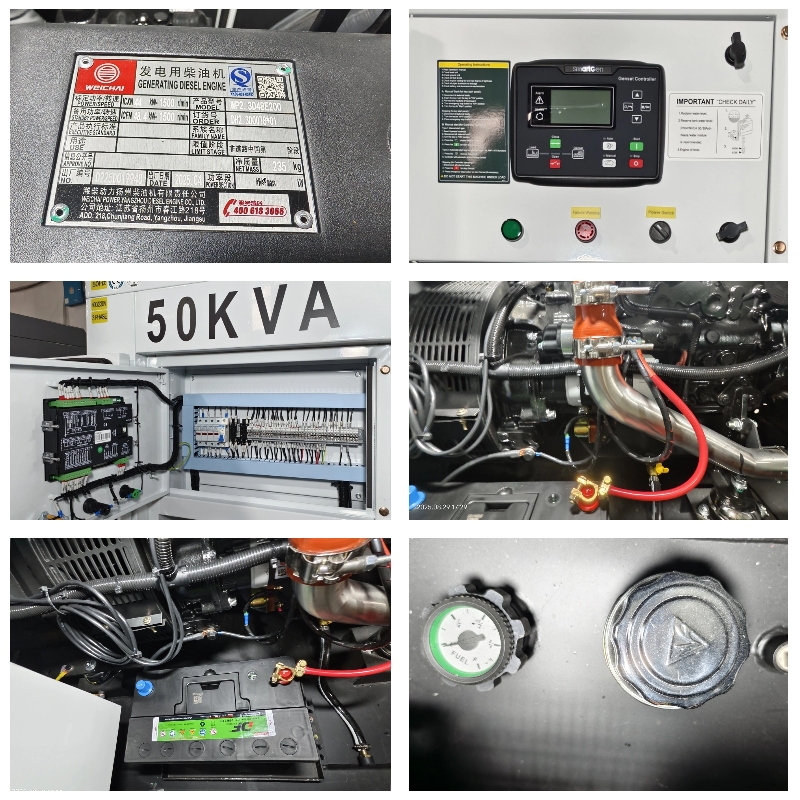

The Weichai WP2.3 silent generator CDW50KVA ships with a 150-page comprehensive maintenance manual in five languages (Chinese, English, Spanish, French, Russian), electrical wiring diagrams, and a CD with 3D disassembly animation — reducing installation and daily maintenance barriers for local technicians at overseas telecom and healthcare sites who may not have formal generator training.

Application Scenarios

The CDW50KVA 36KW compact standby generator serves the following applications:

• Telecom BTS and base station standby — ATS 3-5s bridges UPS battery gap during grid outage at tower base installations
• Rural clinic and primary healthcare standby — continuous supply for vaccine refrigerators, diagnostic equipment, and operating lighting
• Off-grid school and community facility prime — prime for classrooms, computer lab, and water pumping in areas without grid access
• Retail pharmacy and temperature-controlled storage — uninterrupted cold medicine and refrigerated product supply
• Villa and small residential standby — compact 1100kg, quiet ≤72dB ATS backup for gated communities and private residences

OEM Customization Service

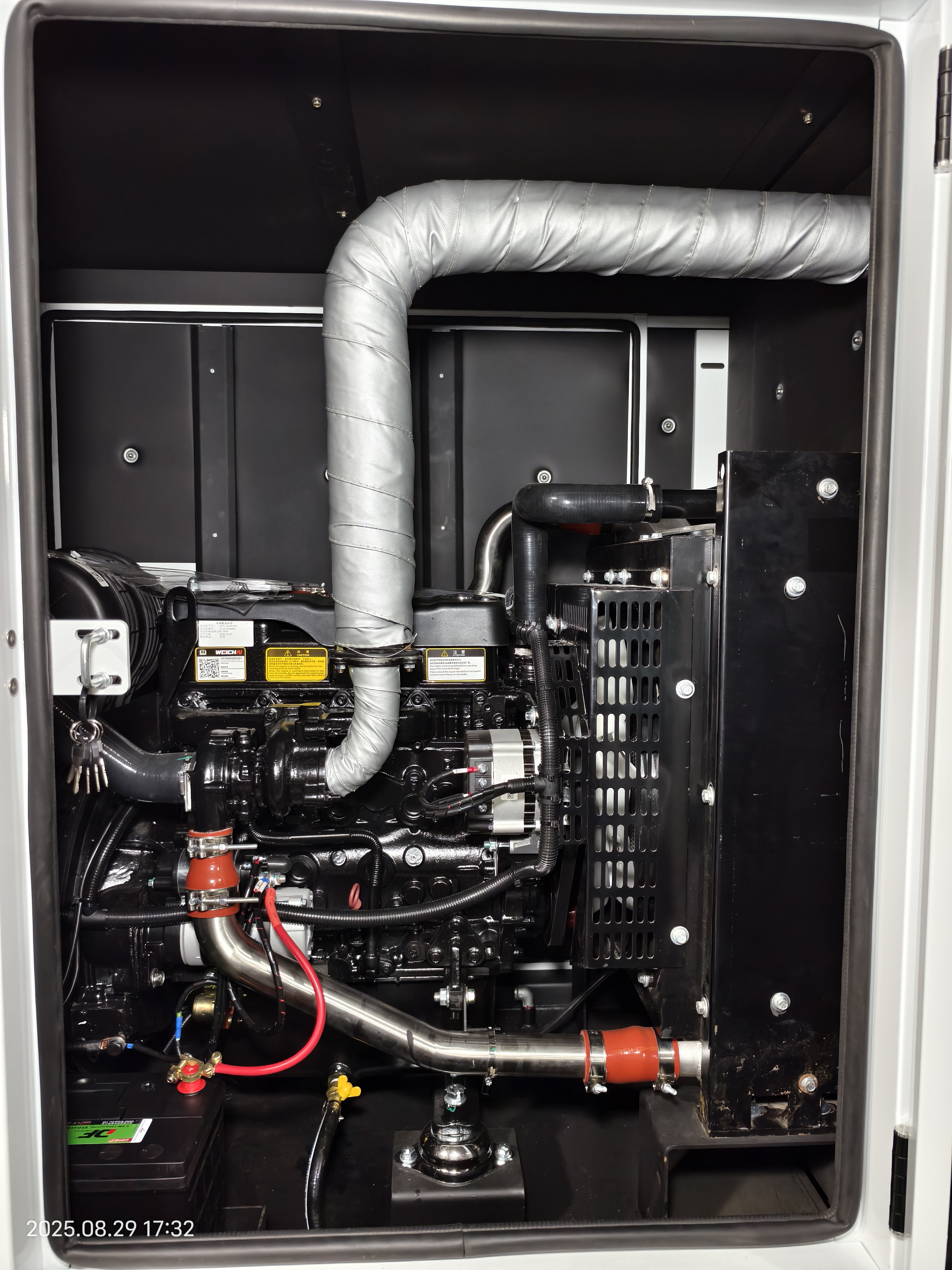

Jiuan Generator provides OEM configuration for the CDW50KVA Weichai WP2.3D48E200 genset, including ultra-silent canopy (65-68dB@7m), jacket water heater and fuel preheater for Siberia/Northern Europe cold-region deployment, C5-M anti-corrosion paint for coastal salt-mist environments, 4G IoT remote monitoring, custom RAL canopy color with customer brand labelling, and 5-language documentation package. Every unit is verified with traceable ESN and full staged load test before dispatch.

FAQ

Q: How fast does the CDW50KVA restore power at a telecom base station during grid failure?
A: The 50KVA Weichai diesel generator CDW50KVA SmartGen or DSE ATS controller detects grid failure and issues an engine start command within 3-5 seconds — fast enough to bridge the battery backup gap at most telecom BTS configurations. The engine reaches stable 1500RPM output before the UPS battery reaches critical discharge, restoring continuous supply without manual intervention.

Q: How does PICC insurance underwriting protect overseas buyers procuring the CDW50KVA?
A: The 50KVA telecom backup generator CDW50KVA warranty is underwritten by PICC (People's Insurance Company of China) — a tier-1 state-backed insurer — providing independent warranty coverage beyond manufacturer-only assurances. Core warranty components are dispatched by air freight and reach most overseas destinations in 3-5 days, minimising downtime at active telecom and healthcare installations far from service centres.

Q: What does the ESN traceability and staged load test include for each CDW50KVA unit?
A: The Weichai WP2.3 silent generator CDW50KVA unique ESN (Engine Serial Number) is registered and traceable to the factory production record. Before shipment, every unit is load-bank tested at staged steps — 0%-25%-50%-75%-full load and 110% overload — with a complete test video and PDF load analysis report delivered alongside the generator, giving procurement teams full technical documentation for each specific unit received.
