400KW Hospital and Pharmaceutical Plant Prime — Weichai WP13D510E311 12.54L, ≤198g/kWh, PICC-Insured

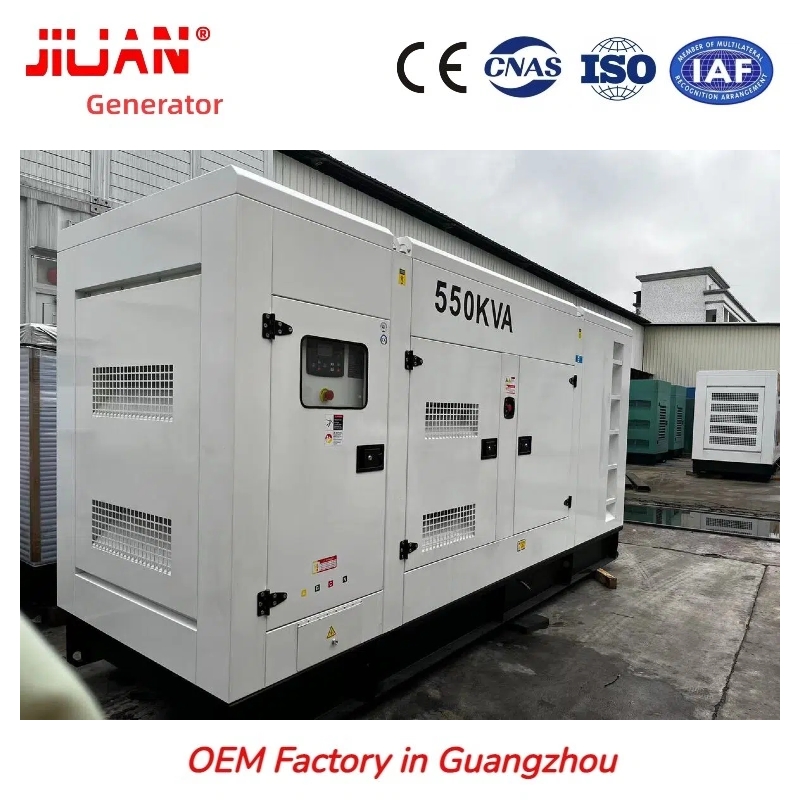

The CDW550KVA is Jiuan Generator's 550KVA Weichai diesel generator for large urban hospitals, pharmaceutical production facilities, and commercial complexes requiring continuous prime power with strict noise compliance. The Weichai WP13D510E311 delivers 400KW/500KVA ISO8528 PRP prime and 440KW/550KVA standby, with 12.54L four-valve turbocharged architecture and HPCR injection for stable 24/7 institutional power supply across Africa, the Middle East, and Southeast Asia markets.

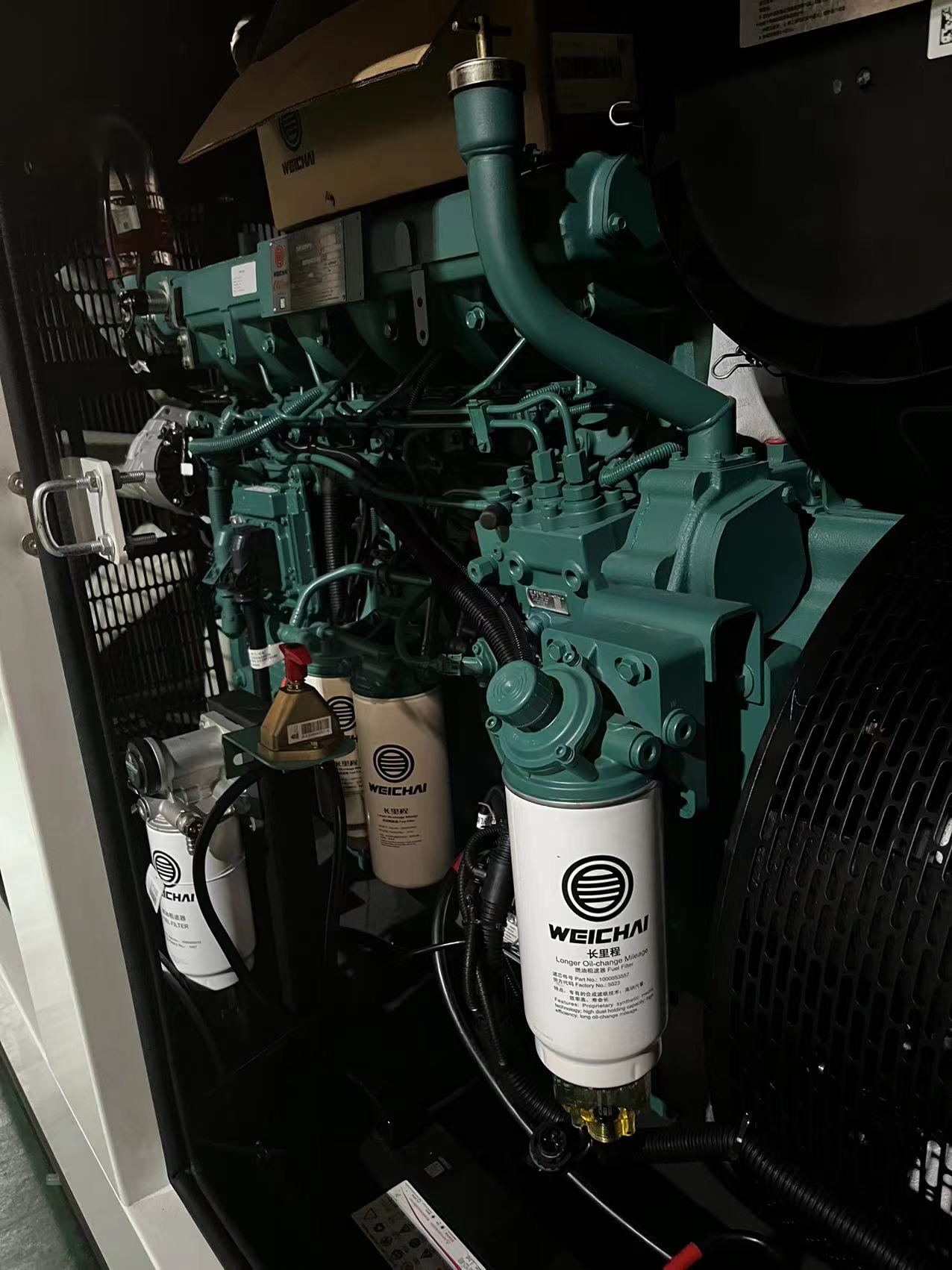

The Weichai WP13D510E311 genset engine is a six-cylinder turbocharged and intercooled inline diesel with 12.54L displacement, 127×165mm bore and stroke, 16:1 compression ratio, and HPCR injection with ECU speed governing. Maximum output is 510kW with prime rated capacity at 400KW — maintaining a reliable power margin through hospital ward HVAC, surgical theatre lighting, and pharmaceutical cleanroom production cycles. Specific fuel consumption is ≤198g/kWh at full prime load.

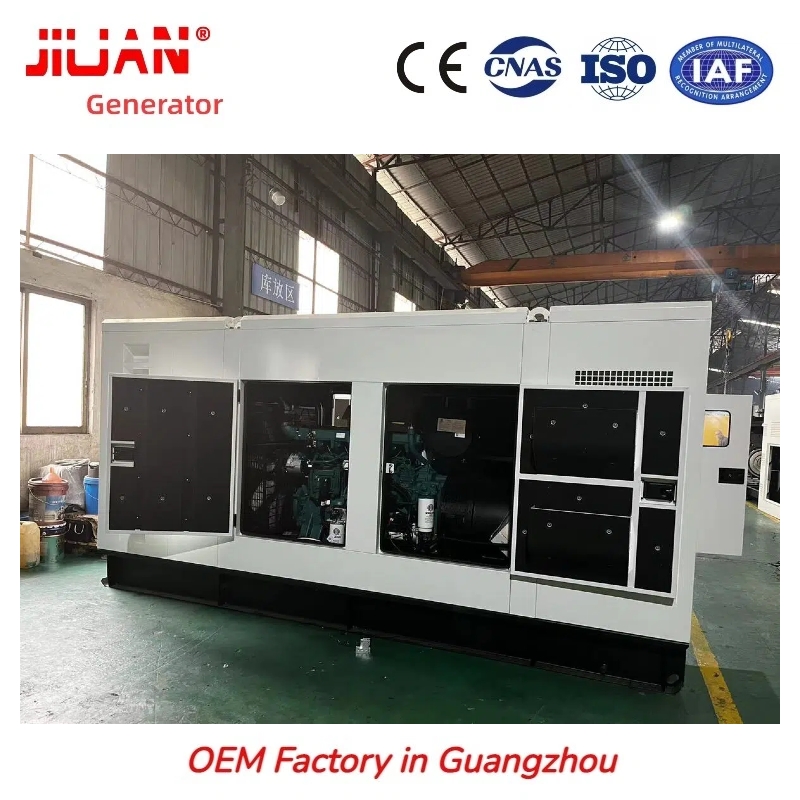

The 400KW prime power generator CDW550KVA silent canopy is built from 3.2mm cold-rolled steel with four-layer anti-corrosion treatment — pickling, phosphating, electrophoresis, and powder coating — resisting the chemical vapour and high-humidity environments of pharmaceutical production floors and hospital mechanical plant rooms. The 65mm flame-retardant sound insulation cotton and ten rubber shock absorbers achieve ≤72dB(A) at 7m, complying with EU and WHO noise limits for healthcare facility perimeter installations.

The 550KVA silent hospital generator CDW550KVA all-copper brushless alternator is H-class insulated with ±1% steady-state voltage regulation and ±13% transient protection during load switching, safeguarding MRI scanners, ICU monitoring systems, pharmaceutical HPLC instruments, and cleanroom HVAC drives from voltage transients. The SmartGen or DSE ATS controller provides six automatic shutdown protections and delivers auto-start within 3-5 seconds of grid failure, supporting unattended hospital and pharmaceutical facility power management.

The Weichai WP13 industrial generator CDW550KVA carries a factory-registered ESN (Engine Serial Number) and is load-bank tested at 0%-25%-50%-75%-full prime load and 110% overload before shipment, with test video and PDF load report delivered with every unit. Warranty is underwritten by PICC (People's Insurance Company of China), with air-freight parts worldwide in 3-5 days. Jiuan Generator has 18 years of WP13 series OEM experience; the 5-language 150-page manual and 3D animation CD support overseas hospital and pharmaceutical engineering teams.

Technical Specifications

5 Core Competitive Advantages

1. WP13D510E311 12.54L Four-Valve HPCR ≤198g/kWh — Continuous 400KW Prime for Hospital and Pharmaceutical Institutions
The Weichai WP13D510E311 genset CDW550KVA 510kW max engine sustains 400KW prime load through hospital ward HVAC cycles and pharmaceutical production shifts without output attenuation. HPCR injection achieves ≤198g/kWh specific fuel consumption — reducing diesel operating cost for continuous-duty hospitals and pharmaceutical plants where generators run 18-24 hours daily. Weichai global spare parts network covers 120+ countries for rapid overseas maintenance.

2. 3.2mm Steel + 65mm Cotton + 10 Shock Absorbers — ≤72dB Institutional-Grade Noise Compliance
The 400KW prime power generator CDW550KVA 3.2mm cold-rolled steel canopy with 65mm flame-retardant insulation and ten rubber shock absorbers achieves ≤72dB(A) at 7m — meeting EU and WHO noise limits for hospital facility perimeters and pharmaceutical campus boundaries. Four-layer pickling-phosphating-electrophoresis-powder-coating anti-corrosion treatment protects against chemical vapour, high humidity, and coastal salt mist environments.

3. All-Copper H-Class Brushless Alternator — ±13% Transient Protection for Medical and Pharmaceutical Precision Loads
The 550KVA silent hospital generator CDW550KVA all-copper brushless H-class alternator delivers ±1% steady-state voltage regulation and ±13% transient protection — safeguarding MRI scanners, ICU monitoring systems, pharmaceutical HPLC instruments, and cleanroom HVAC VFD drives from switching transients. The brushless design removes carbon brush maintenance requirements, reducing scheduled downtime and maintenance costs for hospital and pharmaceutical engineering teams.

4. ESN Traceability + PICC Insurance + Staged Load Test — Independent Procurement Underwriting for Institutional Buyers
Every 550KVA Weichai diesel generator CDW550KVA carries a unique factory-registered ESN (Engine Serial Number) and is load-bank tested at 0%-25%-50%-75%-full prime load and 110% overload before shipment. Test video and PDF load report are shipped with every unit. Warranty is underwritten by PICC (People's Insurance Company of China), with air-freight core parts worldwide in 3-5 days for hospital and pharmaceutical procurement compliance.

5. 5-Language Manual + Free Service Tools + Extreme Environment Configurations — Global Hospital and Pharmaceutical Site Support
The Weichai WP13 industrial generator CDW550KVA ships with a 150-page maintenance manual in five languages (Chinese, English, Spanish, French, Russian), wiring diagrams, and a 3D disassembly animation CD. Jiuan Generator supplies complimentary service wrenches and testing meters. For cold-region hospital sites (Siberia, Northern Europe), jacket water heaters and automatic louvers are available; for coastal pharmaceutical facilities, C5-M anti-corrosion painting is standard.

Application Scenarios

The CDW550KVA 400KW prime power generator serves medium-large institutional and industrial prime and standby power applications:

• Urban comprehensive hospital prime — continuous HVAC, operating theatre, ICU, and medical imaging power with ≤72dB noise compliance
• Pharmaceutical production facility prime — cleanroom HVAC, fermentation, filling-line, and packaging utilities 24/7
• Large shopping mall and commercial complex ATS — 440KW standby for multi-floor escalators, HVAC, and fire safety systems
• Medium data centre and IDC room standby — 440KW standby covers tier-2 data hall critical UPS input backup
• Municipal infrastructure and public building prime — water treatment station pumps, municipal administration complex, and substation backup

OEM Customization Service

Jiuan Generator offers OEM configuration for the CDW550KVA 550KVA silent hospital generator: ATS auto-transfer cabinet (3-5 second switchover), 4G IoT remote monitoring system, jacket water heater and automatic louver for cold-region hospital deployment, C5-M anti-corrosion painting for coastal pharmaceutical environments, custom RAL canopy colour and customer brand labelling, extra-large external fuel storage tank for non-stop prime operation, and non-standard voltage and frequency adaptation for international grid specifications.

FAQ

Q: Why choose the CDW550KVA 550KVA Weichai diesel generator for large urban hospital prime power?
A: The 550KVA Weichai diesel generator CDW550KVA uses the WP13D510E311 engine with HPCR injection at ≤198g/kWh — keeping fuel cost manageable for hospitals running generators 18+ hours daily. The ≤72dB(A) at 7m canopy meets WHO and EU noise standards for healthcare facility perimeter installations, and the all-copper H-class alternator provides ±13% transient protection for MRI scanners, ICU monitoring systems, and surgical theatre equipment.

Q: What staged load testing and documentation comes standard with the CDW550KVA 400KW prime power generator?
A: Every 400KW prime power generator CDW550KVA undergoes load-bank testing at 0%-25%-50%-75%-full prime load and 110% overload before shipment. A test video recording the full staged sequence and a PDF load analysis report are delivered with each unit. Warranty is PICC-underwritten, with air-freight core warranty components reaching most countries in 3-5 days.

Q: What makes the WP13D510E311 engine suited for continuous pharmaceutical manufacturing prime power?
A: The Weichai WP13 industrial generator CDW550KVA WP13D510E311 is a 12.54L four-valve turbocharged diesel rated at 510kW maximum with a 400KW prime continuous capacity — running at a reliable load margin during pharmaceutical production shift cycles. CI-4 15W-40 lubrication ensures cold start to -20°C, while the WP13 platform's global 120+ country parts network reduces maintenance downtime for overseas pharmaceutical and hospital facilities.
