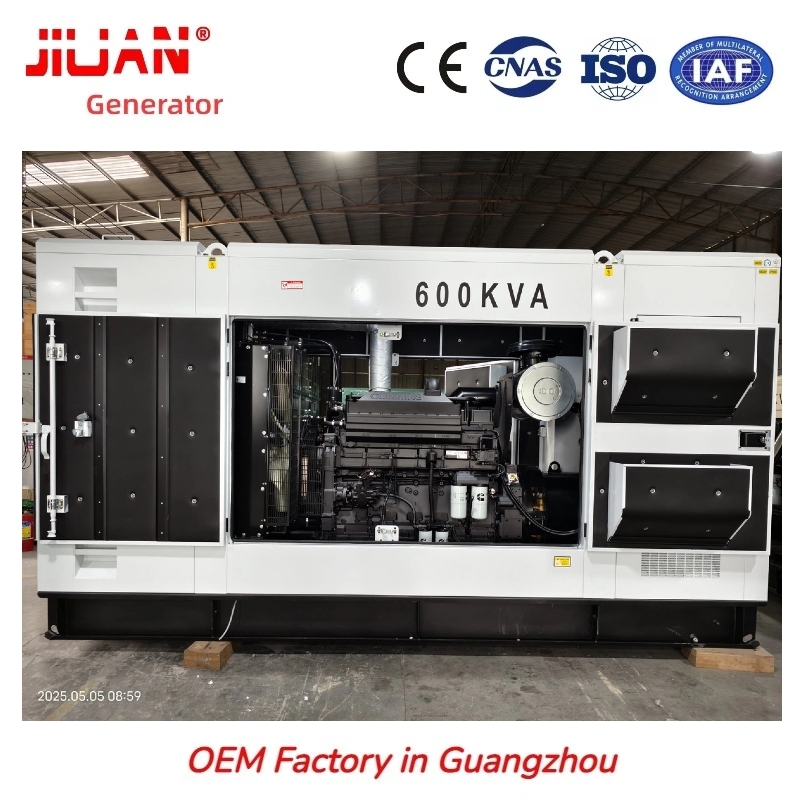

For procurement managers authorising a 600KVA generator purchase for a large project, the critical question is not the specification sheet — it is verifiable evidence that the unit performs as stated. The JIUAN Power 600KVA Cummins diesel generator — Model CDC600KVA, powered by the genuine Cummins KTA19-G3A engine — ships with factory-recorded staged load test videos and PDF load analysis reports as standard deliverables. Rated at 540KVA prime (432KW) and 600KVA standby (480KW), this 540KVA silent Cummins genset delivers ISO 8528-compliant output with ±1% voltage regulation and less than 3% THD, backed by documented test evidence.

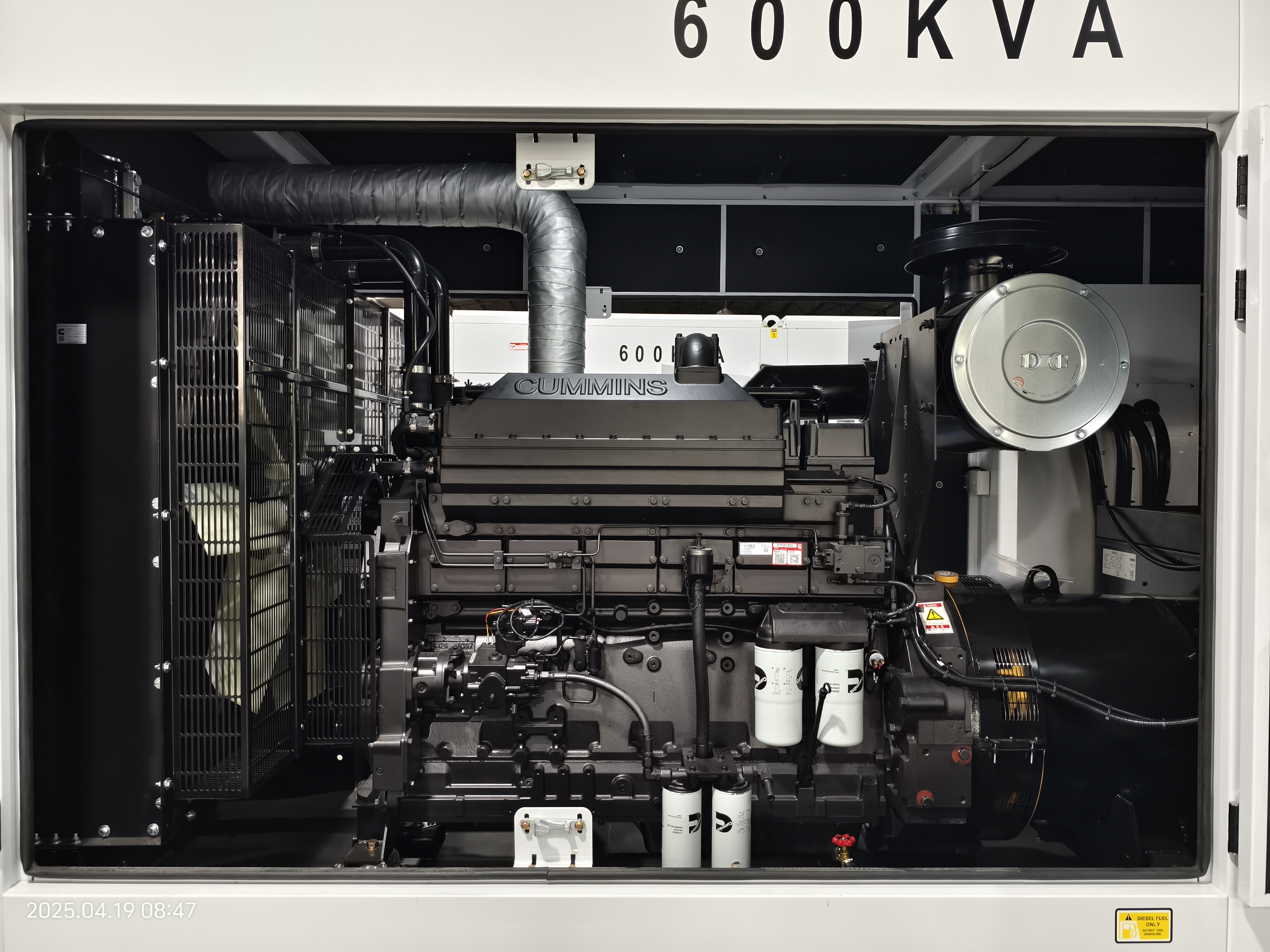

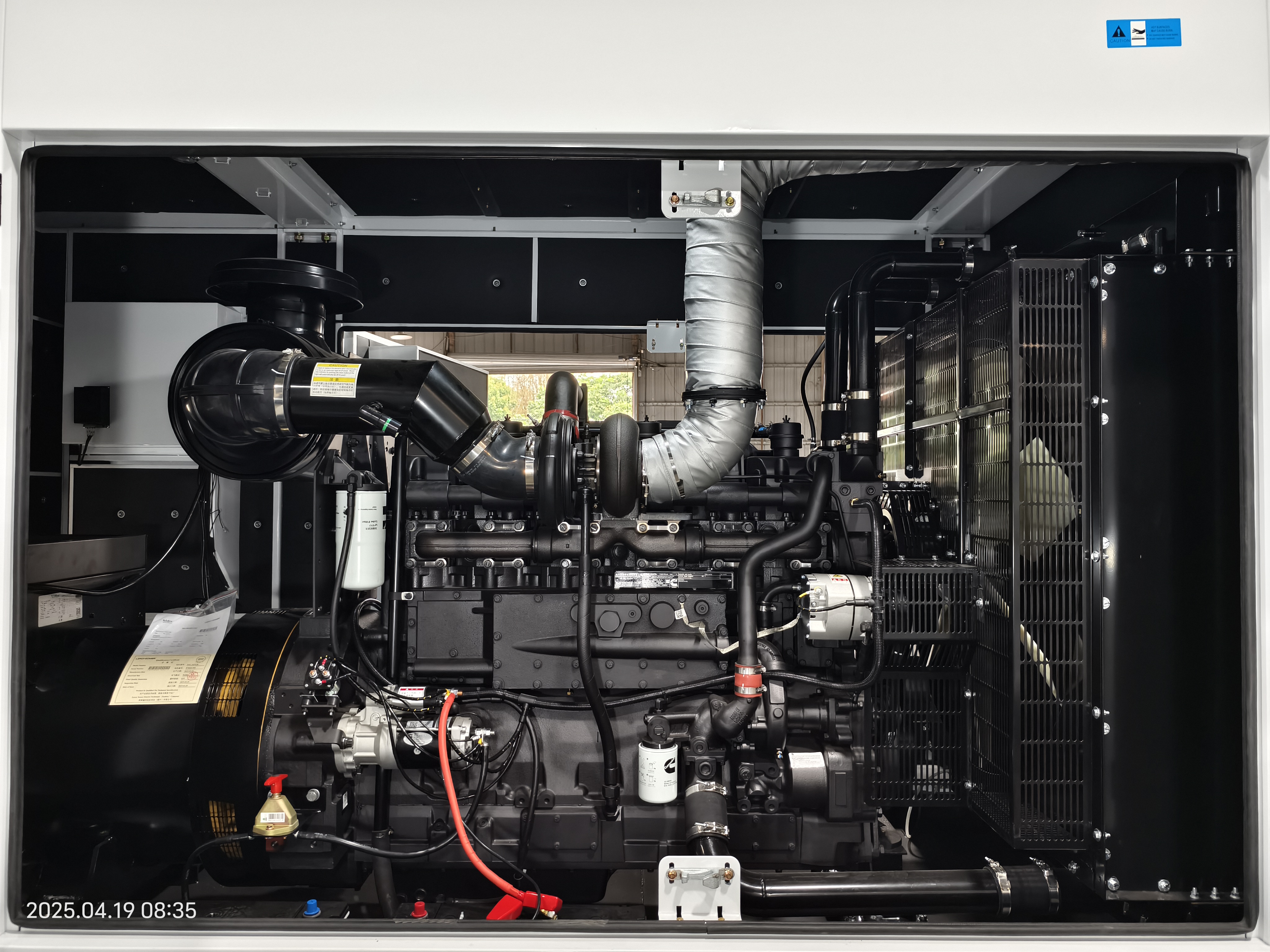

The Cummins KTA19-G3A engine at the core of this soundproof diesel generator is manufactured at CCEC Chongqing Cummins' ISO 9001-certified production line. The inline six-cylinder architecture — bore 159mm × stroke 159mm, displacement 19L, compression ratio 13.9:1 — pairs a Holset turbocharger with an air-to-air aftercooler and the Cummins PT high-pressure fuel injection system, which self-regulates injection pressure from zero to full load without electronic control units, achieving a rated full-load BSFC of 193 g/kW·h. The Cummins KTA19-G3A accepts staged loads from 0% to 110% of prime rating, matching the factory test protocol JIUAN Power runs before despatch. Cold-start is qualified to -15°C without auxiliary aids; a factory-fitted jacket water heater extends reliable ignition to -30°C.

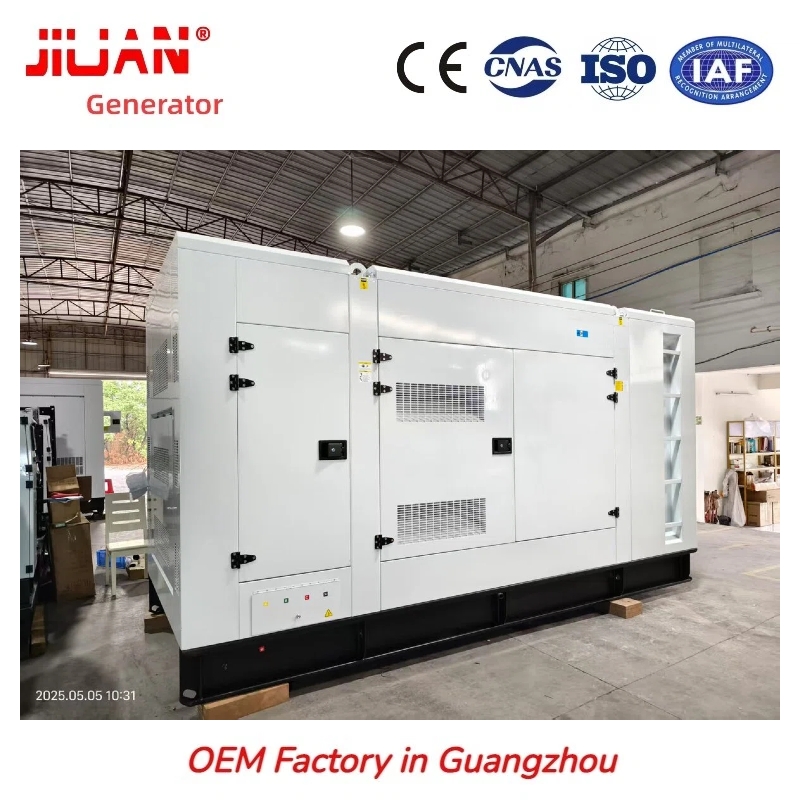

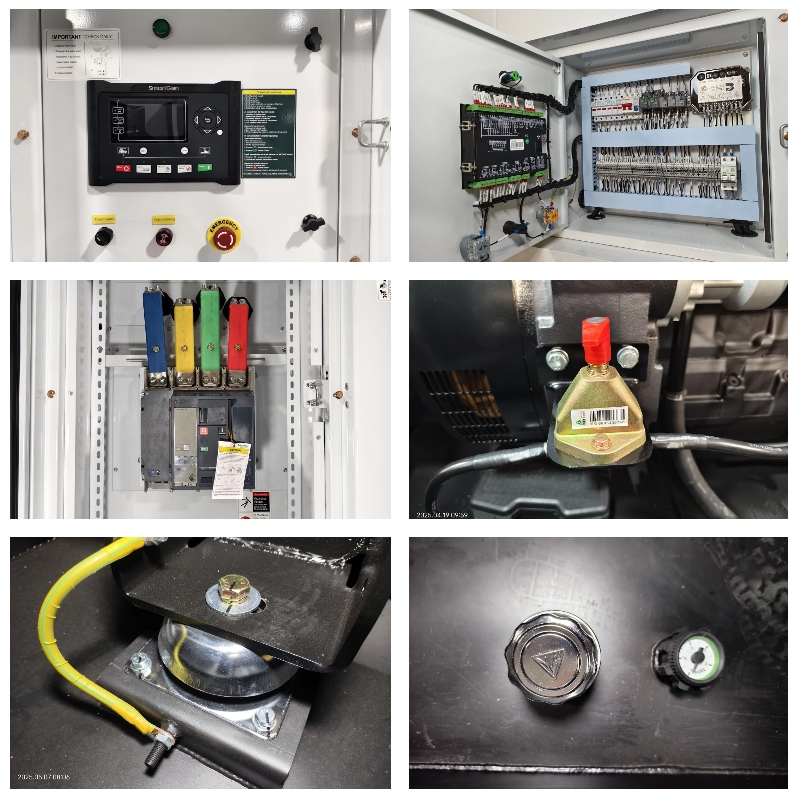

The sealed canopy around this 600KVA Cummins diesel generator is built from ≥2.0mm cold-rolled steel panels, electrostatic powder coated at 120°C, and lined with 40 kg/m³ rock wool, measuring 65–68 dB(A) at 7 metres. The integrated base fuel tank supports over 7 hours of full-load runtime, and dual-side maintenance doors keep routine service straightforward. Every 540KVA silent Cummins genset ships with the DSE7320 intelligent controller as standard — monitoring voltage, current, frequency, oil pressure, coolant temperature, and runtime hours — plus a reserved ATS installation bay for unattended mains-generator transfer within 3–6 seconds of mains interruption.

Each CDC600KVA 600KVA Cummins diesel generator ships with a complete technical documentation package: factory-recorded staged load test videos (0%, 25%, 50%, 75%, 100%, and 110% overload), a PDF load analysis report, 3D rendered exploded views of engine and alternator sub-assemblies, and close-up component photographs for anti-counterfeiting verification. JIUAN Power additionally provides a PICC-underwritten 5-year warranty certificate registering the Cummins KTA19-G3A engine's ESN serial number for asset records, a 5-language user manual (English, Arabic, French, Spanish, Portuguese), electrical wiring diagrams, a CD of 3D disassembly animations, and complimentary service wrenches with testing meters. Canopy steel panel thickness is verified by vernier caliper before despatch, and air freight critical spares reach any international port within 3–5 business days, covering the full 5-year warranty period.

KTA19-G3A PT Injection: Factory Load-Test Evidence and 15,000-Hour TBO

The Cummins KTA19-G3A engine in this 600KVA Cummins diesel generator uses the Cummins PT fuel injection system — self-regulating by fuel rail pressure without electronic injection units — delivering consistent combustion quality across all load profiles from zero to 110% overload. JIUAN Power records and ships a staged load test video of each unit at the factory. At 193 g/kW·h BSFC and a 15,000-hour overhaul interval, the KTA19-G3A platform balances operational economy with documented long-term durability for prime and standby power applications.

PICC-Backed 5-Year Warranty, ESN Traceability, and Verified Component Authenticity

Every CDC600KVA carries a PICC insurance-underwritten 5-year warranty certificate recording the Cummins engine serial number — an auditable document for the buyer's asset register and O&M handover package. JIUAN Power verifies canopy steel panel thickness by vernier caliper before despatch and provides 3D rendered exploded views plus close-up anti-counterfeiting photographs, enabling engineering teams to verify the soundproof diesel generator's component authenticity before purchase. Air freight critical spares arrive at any major port within 3–5 business days via JIUAN Power's authorised Cummins parts network.

±1% Voltage Regulation, C5-M Coastal Protection, and Multi-Zone Climate Kits

The Stamford or Leroy-Somer Class H brushless synchronous alternator in this 540KVA silent Cummins genset — IP23-rated, vacuum-impregnated all-copper windings — maintains voltage regulation within ±1% and total harmonic distortion below 3% across all load transitions. Optional C5-M corrosion-protection coating meets ISO 12944 for coastal and offshore installations; cold-weather kits — jacket water heaters, battery blankets, and arctic lubricant packages — extend the 600KVA Cummins diesel generator's operating envelope to -30°C for high-latitude infrastructure projects.

The CDC600KVA 600KVA Cummins diesel generator serves as prime and standby power for mining operations, Grade A hospitals, chemical industrial parks, data centres, LNG terminal auxiliary systems, and major construction projects across the Middle East, Africa, and Southeast Asia. JIUAN Power ships every soundproof diesel generator fully pre-assembled, enabling connection of diesel supply and power cables on arrival for rapid site commissioning.

FAQ

Q: What documentation ships with each 600KVA Cummins diesel generator order?
A: JIUAN Power supplies factory staged load test videos (0%–110%), a PDF load analysis report, 3D rendered exploded views, anti-counterfeiting component photographs, a 5-language 150-page maintenance manual, electrical wiring diagrams, a 3D disassembly animation CD, and complimentary service wrenches with testing meters — all as standard deliverables.

Q: Is this 540KVA silent Cummins genset rated for continuous prime power use?
A: Yes. The 540KVA prime rating authorises the Cummins KTA19-G3A for 24/7 continuous full-load operation. The 19L large-displacement platform sustains 80–100% load without heat-cycling concerns common to smaller engines in prime-power service.
