Open-cast mines and mineral processing plants cannot absorb gaps in electrical supply — ore crushers stall, conveyor drives lose sequence, dewatering pumps fail, and access lighting goes dark. The JIUAN Power 650KVA Cummins diesel generator — Model CDC650KVA, driven by the Cummins KTA19-G8 19L engine manufactured at CCEC Chongqing Cummins' ISO 9001-certified facility — delivers 480KW/600KVA prime and 520KW/650KVA standby for mine-site prime and emergency duty. Every 600KVA silent Cummins genset leaves the factory ISO 8528-compliant, with documented acceptance test results included as standard.

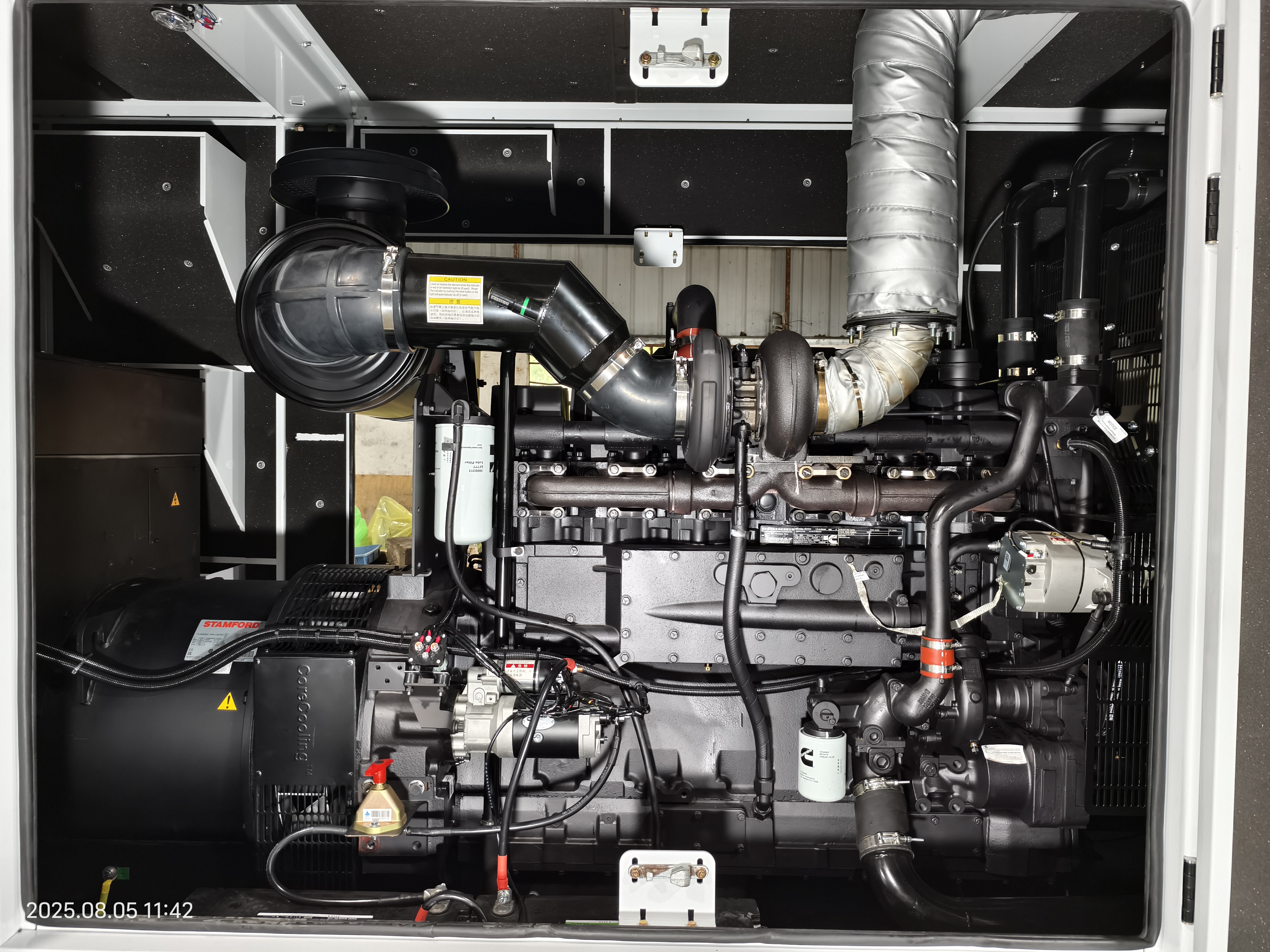

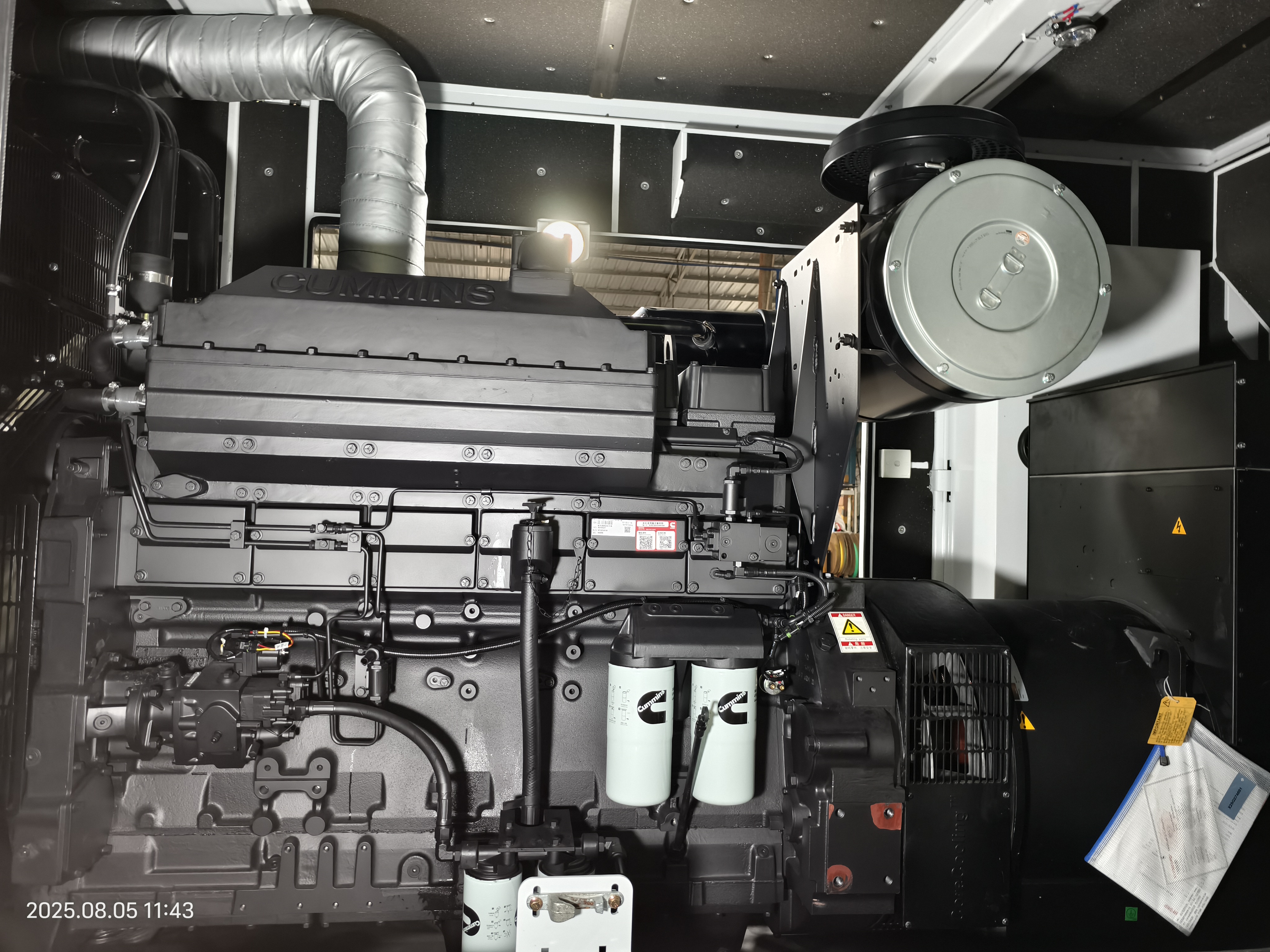

The Cummins KTA19-G8 engine at the centre of this soundproof diesel generator is an inline six-cylinder, 19L platform — 159mm bore, 159mm stroke, 13.9:1 compression ratio — running a PT high-pressure fuel system with EFC mechanical governor and Holset turbocharging with air-to-air intercooling. The PT fuel circuit operates without complex ECU modules, making it serviceable by mine-site mechanical crews at remote locations where specialist engine-management diagnostics are unavailable. Rated BSFC of 196–202 g/kW·h across the prime operating range, combined with an 18,000-hour overhaul interval, align with the 15–20 year fixed-asset lifecycle of a mine's generating plant.

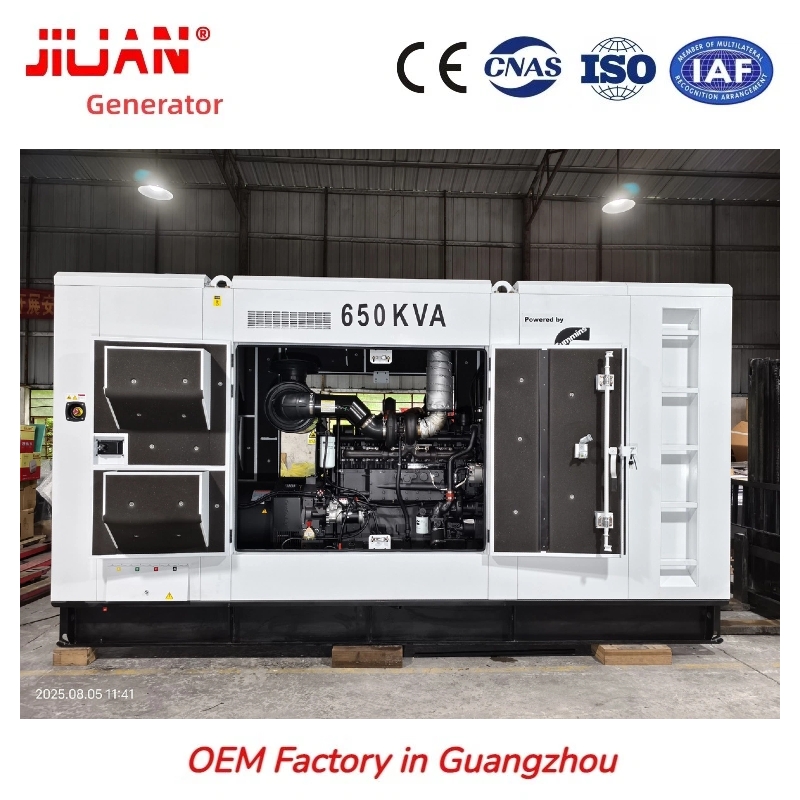

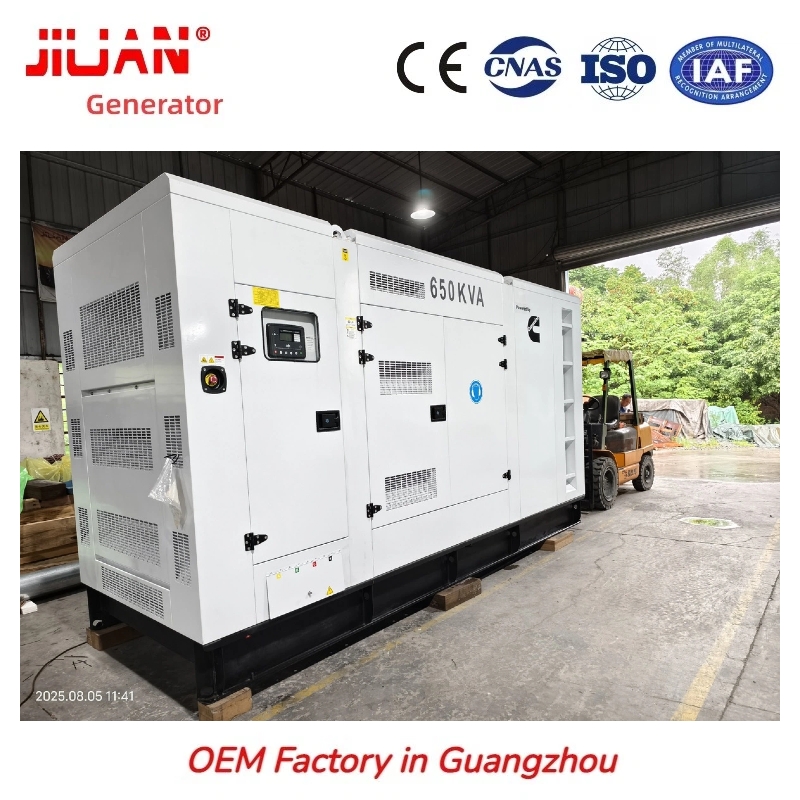

The weatherproof canopy of this 650KVA Cummins diesel generator is fabricated from ≥2.0mm cold-rolled steel panels, finished with a 120°C electrostatic enamel coat, and lined with 40 kg/m³ flame-retardant rock wool — measured acoustic output at 7 metres is 65–68 dB(A), within statutory permit limits at mine-site accommodation camp boundaries. A 1,200-litre integral skid-frame fuel tank supports over 9 hours of full-load autonomous operation, covering a complete three-shift mine cycle without refuelling interruption. Each 600KVA silent Cummins genset is shipped pre-fitted with a DeepSea DSE7320 controller; ATS logic completes mains-to-generator transfer within 3–6 seconds and returns the load automatically on utility restoration.

JIUAN Power ships every CDC650KVA 650KVA Cummins diesel generator with factory-filmed staged load trials — six acceptance runs from 0% through 110% — and a PDF load report for mine procurement files. Documentation includes 3D engineering assembly drawings, magnified anti-counterfeiting component photographs, and a PICC insurance-backed 5-year warranty policy recording the Cummins KTA19-G8 engine serial number for mine asset registers. A 150-page installation and service handbook in five language editions (English, Arabic, French, Spanish, Portuguese), electrical schematics, a 3D disassembly animation CD, and service wrenches with testing meters complete each delivery. Enclosure panel gauge is confirmed by digital calliper before despatch; air-freight delivery gets warranty components to any destination port within 3–5 working days, covering the full 5-year warranty period.

KTA19-G8 PT Fuel System and EFC Governor: Mine-Field Mechanical Simplicity and 18,000-Hour Overhaul Life

The Cummins KTA19-G8 engine in this 650KVA Cummins diesel generator runs a PT injection system governed by a mechanical EFC unit — no ECU modules requiring specialist diagnostic tools at remote mine locations. JIUAN Power provides factory-filmed staged load acceptance footage for each unit, confirming ISO 8528 compliance across all six duty bands from 0% to 110% overload. BSFC of 196–202 g/kW·h and an 18,000-hour overhaul interval match the long fixed-asset horizon of mine-site generating plant, keeping total life-cycle maintenance costs competitive.

PICC 5-Year Warranty, ESN Traceability, and Enclosure Gauge Certification for Mine Asset Registers

Each CDC650KVA carries a PICC-underwritten 5-year warranty policy citing the Cummins KTA19-G8 engine serial number — a document accepted by mine-owner asset registers, insurance schedules, and project finance lenders. JIUAN Power confirms enclosure panel gauge by digital calliper and supplies 3D engineering assembly drawings alongside magnified anti-counterfeiting component photographs, giving remote mining procurement teams a desk-level audit capability for this soundproof diesel generator before shipment approval. Warranty spares are dispatched by air freight to any major port within 3–5 working days.

±1% Voltage for PLC Ore-Processing Drives, C5-M Coastal Mine Protection, and -35°C Cold-Start Packages

The Stamford or Leroy-Somer Class H brushless synchronous alternator in this 600KVA silent Cummins genset — IP23-rated, vacuum-impregnated all-copper windings — holds voltage regulation within ±1% and total harmonic distortion below 3%, protecting variable-speed conveyor drives, ore-sorting PLC panels, and mine communications from power fluctuation. C5-M anti-corrosion coating (ISO 12944) protects units deployed at tropical coastal and island mine sites; cold-region packages — jacket water heaters, fuel preheaters, and arctic lubricant grades — deliver reliable starts to -35°C for Siberian, Canadian, and Nordic mine conditions, keeping the 650KVA Cummins diesel generator operational through every seasonal extreme.

The CDC650KVA 650KVA Cummins diesel generator provides prime and standby power for open-cast mines, mineral processing plants, petrochemical refinery sites, port terminal operations, civil infrastructure contractors, large agricultural processing parks, and national grid peaking stations across Sub-Saharan Africa, the Middle East, Central Asia, Southeast Asia, and Latin America. JIUAN Power fully pre-assembles every soundproof diesel generator before despatch.

FAQ

Q: How does the KTA19-G8 PT fuel system benefit remote mine-site maintenance?
A: Unlike ECU-controlled common-rail platforms, the Cummins KTA19-G8 in this 650KVA Cummins diesel generator uses a PT injection circuit with a mechanical EFC governor. Mine-site crews holding standard diesel-engine competency can service the fuel system without specialist electronic diagnostic equipment, reducing mean time to repair at locations far from Cummins service centres.

Q: What is the fuel tank capacity and runtime of this 600KVA silent Cummins genset?
A: The integral 1,200-litre base tank sustains over 9 hours of full-load operation — enough to cover a full three-shift mine working cycle. The Cummins KTA19-G8 engine consumes approximately 110–120 litres per hour at 480KW prime load, depending on site altitude and ambient temperature.
