600KW Marine Terminal and Shipyard Continuous Prime Power — Cummins KTA38-G2 V12, 731kW Certified, PICC-Insured

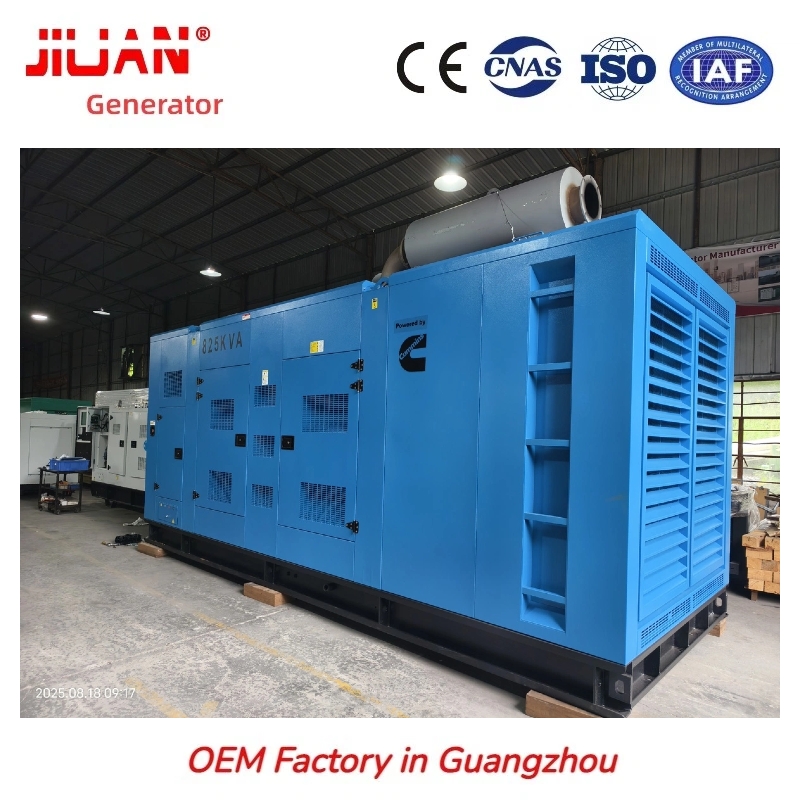

The CDC825KVA is Jiuan Generator's 825KVA Cummins diesel generator for offshore marine terminals, large commercial shipyards, and port dry dock facilities requiring 24-hour continuous prime power. Powered by the genuine CCEC Chongqing Cummins KTA38-G2 engine, the unit delivers 600KW/750KVA ISO8528 PRP prime and 660KW/825KVA standby, with CE and ISO8528 certification for global project procurement and export compliance.

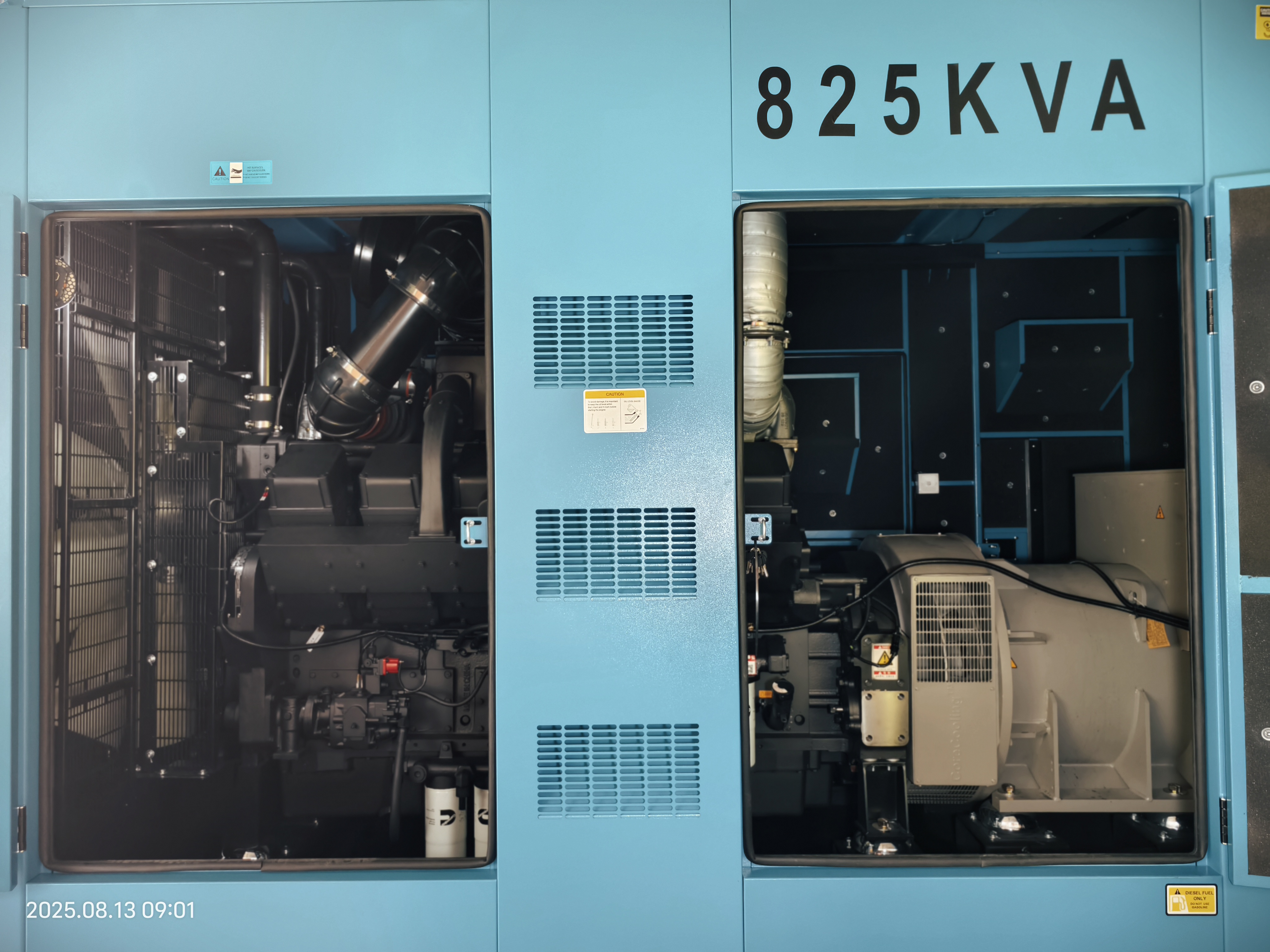

The Cummins KTA38-G2 genset is a 60° V-type 12-cylinder turbocharged and intercooled diesel with 37.8L displacement, 159×159mm bore and stroke, 14.5:1 compression ratio, Holset dual turbocharger, and PT high-pressure fuel injection with EFC electronic governing at 1500RPM. Engine certified standby output reaches 731KW — sustaining the 600KW prime rating with a 22% power reserve for ship-to-shore crane DOL motor starting surges and dry dock pump load restoration. Specific fuel consumption: 198–205g/kWh at full prime load.

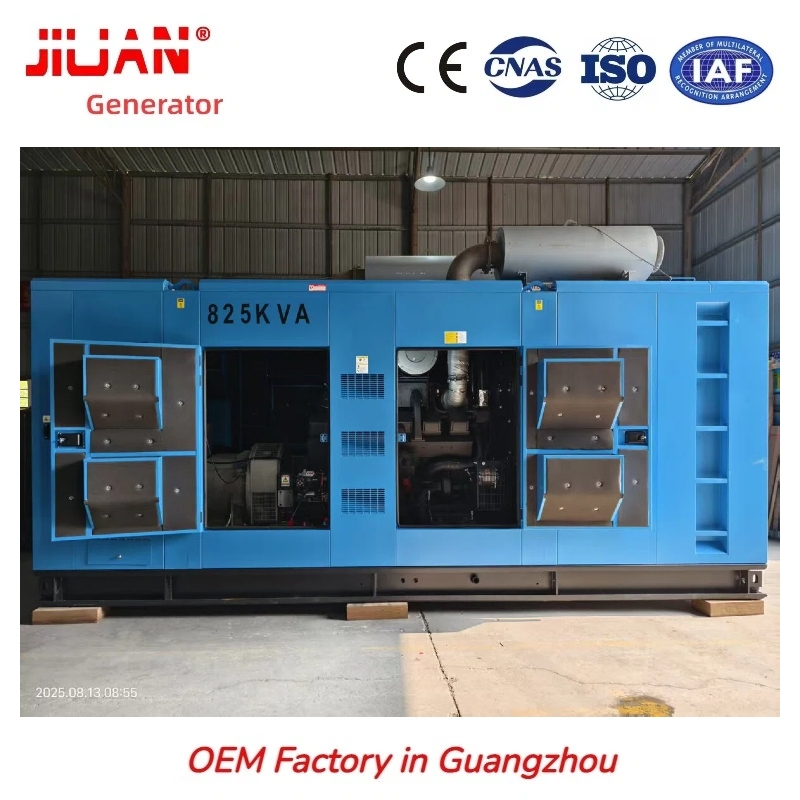

The 660KW standby power generator CDC825KVA canopy is manufactured from 4mm cold-rolled steel with double-layer epoxy zinc-rich anti-rust coating for long-term outdoor coastal and marine environment placement. Multi-layer flame-retardant acoustic foam, impedance composite muffler duct, and an extra-large industrial compound silencer reduce operating noise to ≤72dB(A) at 7m — meeting EU commercial port zone noise regulations for open-quay installation adjacent to occupied dock facilities.

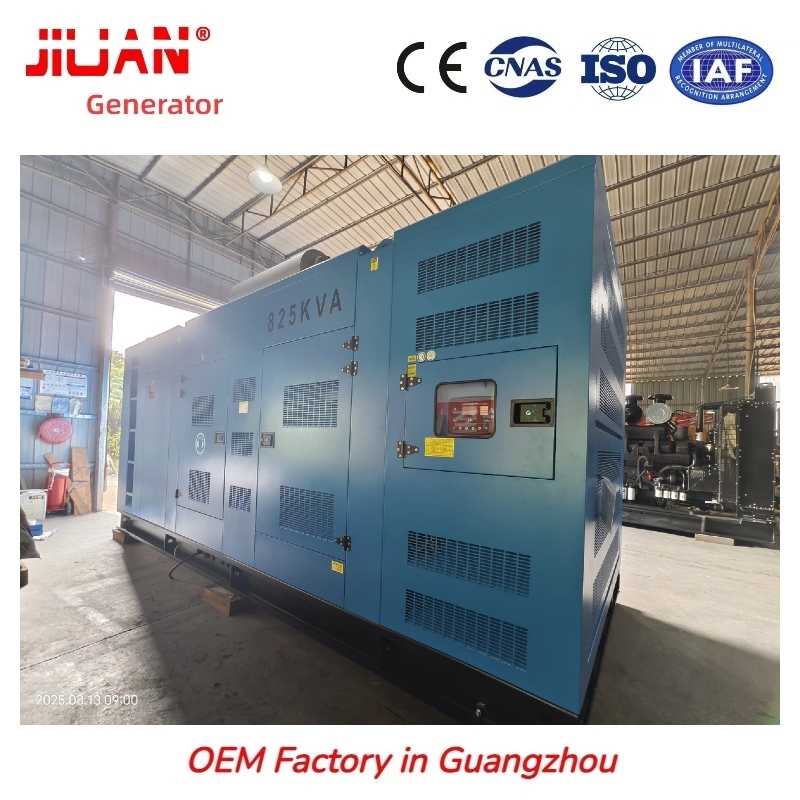

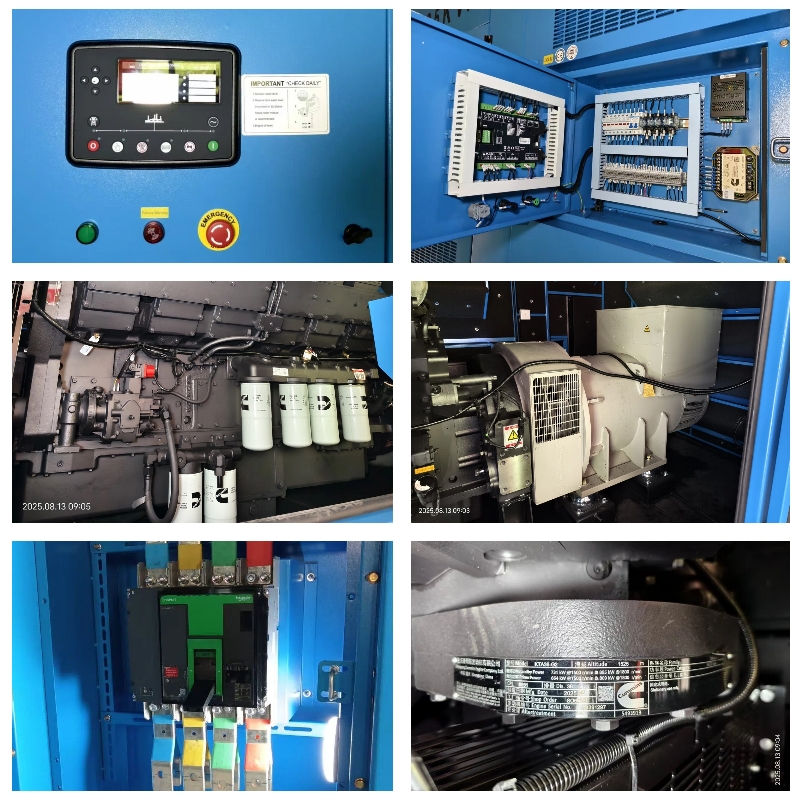

The 825KVA industrial generator CDC825KVA all-copper brushless H-class alternator delivers ±1% steady-state voltage regulation and THD <3%, protecting port crane inverter drives, shipyard welding rectifiers, dry dock pump control panels, and BMS precision systems from voltage disturbances. The DeepSea DSE7320 controller provides auto-start within 3-5 seconds of grid failure with reserved ATS installation space for seamless switchover between shore power and genset power.
The Cummins KTA38 heavy duty genset CDC825KVA carries a factory-registered ESN (Engine Serial Number) and is load-bank tested at 0%-25%-50%-75%-full prime load and 110% overload before shipment, with test video and PDF load report shipped with every unit. Warranty is underwritten by PICC (People's Insurance Company of China), with air-freight core parts in 3-5 days via the worldwide official Cummins after-sales service network.
Technical Specifications
| Parameter |
Value |
| Model |
CDC825KVA |
| Prime Power (PRP) |
600KW / 750KVA |
| Standby Power (ESP) |
660KW / 825KVA |
| Engine Model |
Cummins KTA38-G2 |
| Engine Certified Standby |
731KW @ 1500RPM |
| Cylinders / Displacement |
V12 (60°) / 37.8L |
| Bore × Stroke |
159mm × 159mm |
| Compression Ratio |
14.5:1 |
| Fuel System |
PT High-Pressure + EFC Electronic Governor |
| Aspiration |
Holset Dual Turbo + Air-Air Intercooler |
| Fuel Consumption |
198–205g/kWh (full prime load) |
| Lube Oil Filters |
Fleetguard Triple Filter Assembly |
| Starting / Cold Start |
24V DC; -20°C standard (-38°C optional dual preheater) |
| Maintenance / Overhaul |
500hr interval / >20,000hr overhaul life |
| Frequency / Speed |
50Hz / 1500RPM; 60Hz / 1800RPM |
| Phase / Wires |
3-Phase, 4-Wire |
| Voltage Output |
415/240V, 400/230V, 380/220V |
| Power Factor |
0.8 Lagging |
| Voltage Regulation |
±1% steady-state; THD <3% |
| Alternator |
Stamford / Leroy-Somer / Tooplinks |
| Insulation / Protection |
Class H / IP23 (IP55 optional) |
| Canopy |
4mm steel; acoustic foam; 1500L base fuel tank |
| Noise / Ambient |
≤72dB(A) @ 7m / -32°C to +50°C |
| Dimensions (L×W×H) |
5600 × 2200 × 2550mm / 8,200kg |
| ATS Response |
3-5 seconds (optional ATS) |
| Certifications |
CE, ISO8528, GB/T2820 |
5 Core Competitive Advantages
1. KTA38-G2 V12 37.8L / 731kW Certified — 22% Power Reserve for Marine Crane DOL Starting and Dry Dock Load Surges
The Cummins KTA38-G2 genset CDC825KVA V12 37.8L engine with Holset dual turbocharger and PT fuel injection delivers a 731KW certified standby output — sustaining 600KW prime at a 22% reserve for ship-to-shore crane DOL motor starting surges and dry dock pump load restoration. Full-load fuel consumption 198-205g/kWh matches Cummins K38 platform benchmark performance for 24-hour marine terminal prime duty cycles.
2. 4mm Steel + 1500L Base Tank + ≤72dB — Open-quay Coastal Installation With 10+ Hour Fuel Autonomy
The 660KW standby power generator CDC825KVA 4mm cold-rolled steel canopy with double-layer epoxy zinc-rich coating and multi-layer flame-retardant acoustic foam achieves ≤72dB(A) at 7m, meeting EU commercial port zone noise limits for open-quay installation. The 1500L integrated base fuel tank delivers over 10 continuous full-load running hours before refuelling, with an external quick-fill port on the canopy shell for uninterrupted terminal operations.
3. All-Copper Brushless ±1% / THD<3% — Ultra-clean Power for Marine Inverter Drives and Precision Control Systems
The 825KVA industrial generator CDC825KVA all-copper brushless H-class alternator delivers ±1% steady-state voltage regulation and THD <3%, providing pure sine-wave power for crane inverter VFD drives, welding rectifiers, dry dock pump PLCs, and shipyard BMS systems. The brushless design removes carbon brush maintenance requirements, reducing scheduled downtime in continuous 24-hour port operations. Standard molded case circuit breaker provides five-way protection.
4. ESN Traceability + PICC Insurance + 0%-110% Staged Load Test — Verified Quality for Port Authority Procurement
Every 825KVA Cummins diesel generator CDC825KVA carries a factory-registered ESN and is load-bank tested at 0%-25%-50%-75%-full prime load and 110% overload before shipment. Test video and PDF load analysis report are shipped with every unit. Warranty is underwritten by PICC (People's Insurance Company of China), with air-freight core parts in 3-5 days via the global official Cummins after-sales service network covering 160+ countries.
5. 5-Language Manual + Free Service Tools + Marine Anti-corrosion OEM — Full Support for Overseas Port Project Teams
The Cummins KTA38 heavy duty genset CDC825KVA ships with a 150-page maintenance manual in five languages (Chinese, English, Spanish, French, Russian), wiring diagrams, and a 3D disassembly animation CD. Jiuan Generator supplies service wrenches and testing meters. For coastal marine terminals, C5-M anti-corrosion painting is available; for Arctic dock facilities, jacket water heater and automatic louvers support cold-region start-up to -38°C.
Application Scenarios
The CDC825KVA 660KW standby power generator serves large marine, industrial, and commercial prime and ATS standby applications:
-
Marine terminal and container port prime — 600KW prime for ship-to-shore cranes, dock refrigeration, and cargo operations
-
Shipyard dry dock facility prime — welding workshops, dry dock pumps, and fabrication hall continuous prime
-
LNG storage and bunkering station ATS — 660KW ESP for safety-critical systems, 3-5 second switchover
-
Coastal industrial park emergency standby — -32°C to +50°C ambient, C5-M anti-corrosion option
-
Large cold chain complex continuous prime — 600KW for multi-warehouse refrigeration compressors and temperature control
OEM Customization Service
Jiuan Generator offers OEM configuration for the CDC825KVA 825KVA industrial generator: ATS auto-transfer cabinet (3-5 second switchover), 4G IoT remote monitoring, parallel synchronisation cabinet for multi-unit load sharing up to 3300KVA, jacket water heater and dual preheater for -38°C Arctic marine dock deployment, C5-M anti-corrosion painting for coastal terminal environments, external 3000L+ fuel tank for extended autonomous operation, custom RAL canopy colour and brand labelling, and 60Hz/440V adaptation for American and Middle Eastern port grid specifications.
FAQ
Q: Why is the CDC825KVA 825KVA Cummins diesel generator suitable for offshore marine terminal continuous prime power?
A: The 825KVA Cummins diesel generator CDC825KVA KTA38-G2 engine delivers 600KW ISO8528 PRP prime with a 22% power reserve for crane motor starting — suitable for 24-hour marine terminal prime duty. The 4mm coastal canopy, 1500L integrated base tank, and official Cummins 160+ country service network enable extended autonomous operation at remote port installations worldwide.
Q: What makes the CDC825KVA 660KW standby power generator suitable for coastal outdoor installation?
A: The 660KW standby power generator CDC825KVA 4mm steel canopy with double-layer epoxy zinc-rich anti-rust coating resists salt fog corrosion for long-term coastal and marine outdoor placement. The -32°C to +50°C rated ambient range covers tropical port environments and northern shipyard winters. Optional C5-M anti-corrosion painting provides additional protection for island and offshore terminal installations.
Q: What PICC insurance and traceability documentation comes with the CDC825KVA for port authority procurement?
A: The Cummins KTA38 heavy duty genset CDC825KVA ships with a factory-registered ESN, a 0%-110% staged load bank test video and PDF report, and PICC (People's Insurance Company of China) warranty insurance documentation for procurement due-diligence records. Air-freight core warranty parts reach most countries in 3-5 days via the official worldwide Cummins service network. CE and ISO8528 certificates are included for port authority permit submissions.
