64KW Supermarket Cold Chain and Food Retail ATS Standby — Weichai WP4.1D80E200 Compact Engine

The CDW88KVA is Jiuan Generator's 88KVA Weichai diesel generator for supermarket cold chain protection, food retail outlets, small offices, clinics, and community commercial premises where ATS-triggered emergency standby must auto-start within seconds of grid loss. Powered by the Weichai WP4.1D80E200 four-cylinder turbocharged diesel, the CDW88KVA delivers 64KW/80KVA ISO8528 PRP prime and 70KW/88KVA standby — in a compact 2600×1100×1600mm, 1700kg footprint with ≤72dB(A) silent canopy.

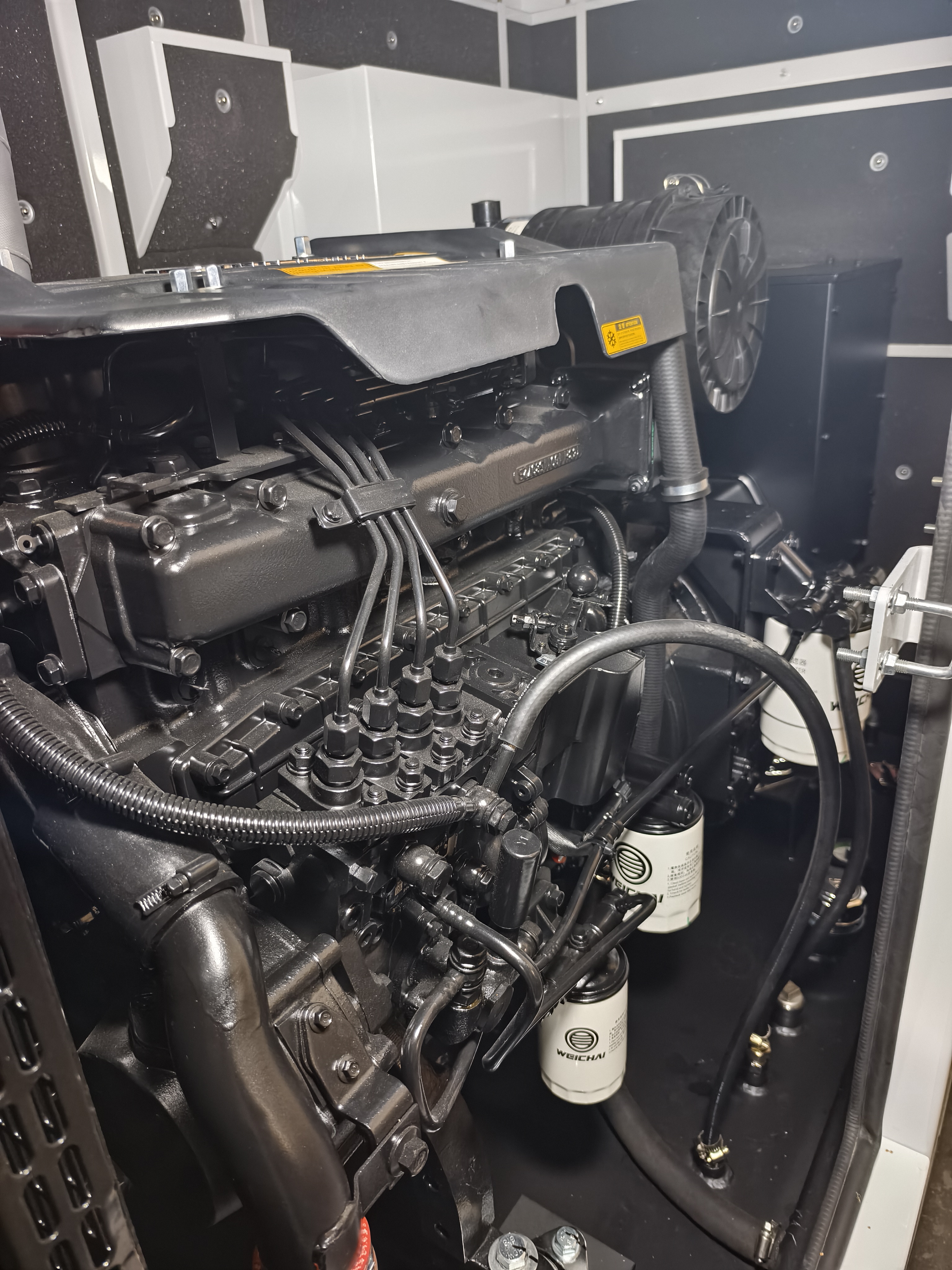

The Weichai WP4.1D80E200 genset engine is an inline four-cylinder, turbocharged water-cooled diesel with 4.088L displacement, 105mm × 118mm bore and stroke, and 17.5:1 compression ratio. The high compression ratio supports reliable cold start in un-air-conditioned generator rooms across tropical and subtropical markets. Electronic fuel injection holds specific fuel consumption at ≤205g/kWh across the prime load range. The 13L oil sump supports 500-hour planned maintenance intervals aligned with typical commercial building service cycles.

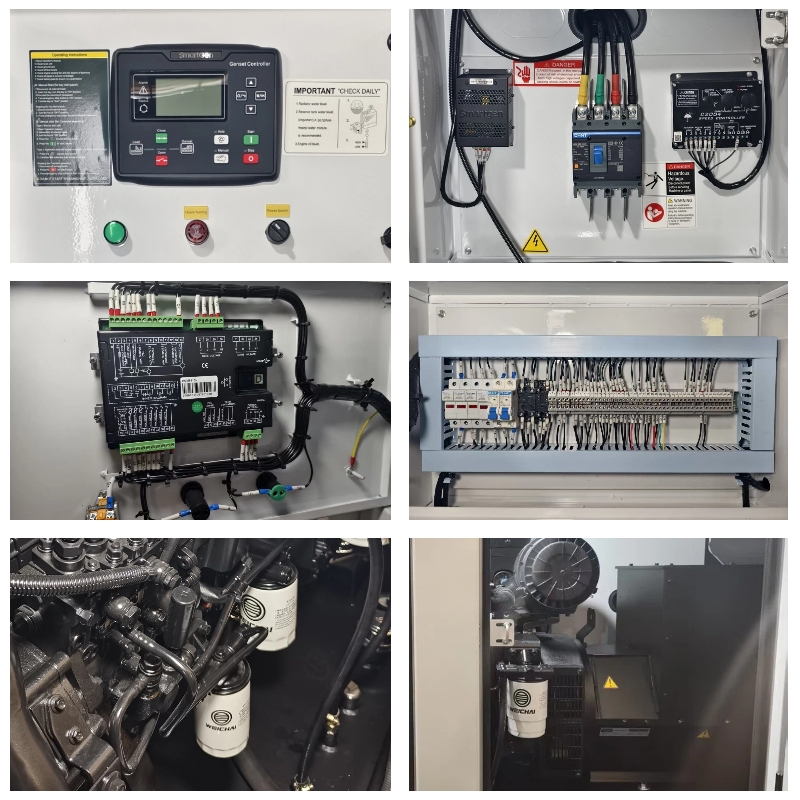

The 64KW compact prime generator CDW88KVA brushless synchronous alternator is wound with all-copper conductors, H-class insulated, and delivers stable 400V/50Hz three-phase supply with steady-state voltage regulation within ±1%. The DSE7320 or SmartGen controller triggers ATS automatic start within 3-6 seconds of grid loss — a transfer speed critical for maintaining refrigeration circuit temperature and protecting food stock from spoilage at supermarkets and cold-chain retail facilities during grid outages.

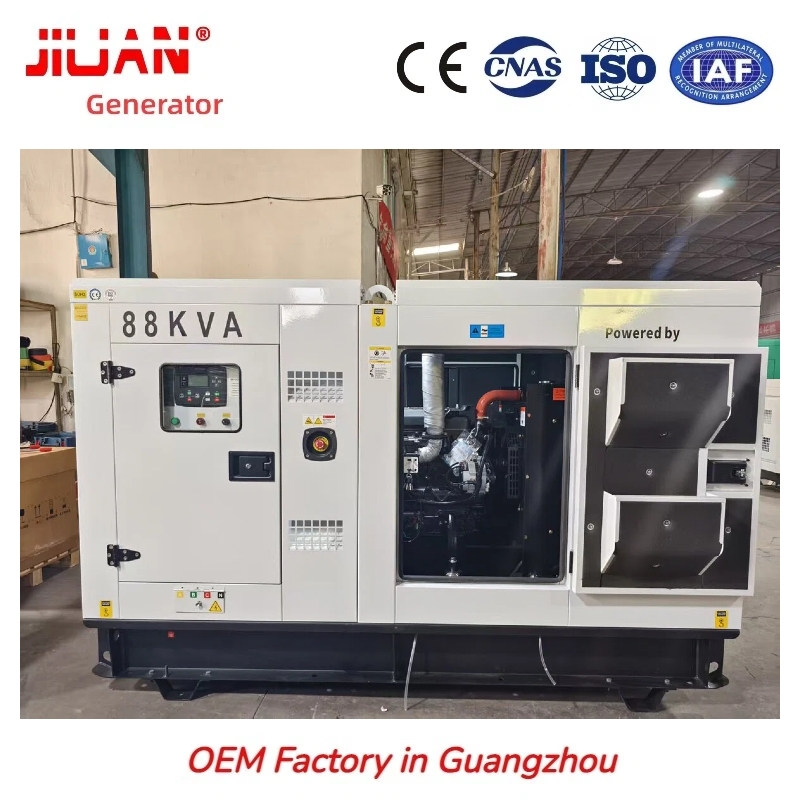

The 88KVA retail backup power unit CDW88KVA silent canopy is fabricated from 2.2mm cold-rolled steel with multi-layer anti-rust coating and 50mm flame-retardant acoustic insulation, achieving ≤72dB(A) at 7m — within the noise limits for urban commercial zones. The integrated base fuel tank supports 8 hours of continuous full prime load operation on a single fill, covering a full overnight period at unmanned retail outlets and food storage facilities without manual intervention.

The Weichai WP4 series generator CDW88KVA draws on Weichai Power's parts and service network in Africa, the Middle East, Southeast Asia, and South Asia. WP4.1 series spare parts carry approximately 32% lower procurement cost versus equivalent Perkins or Cummins units — a budget advantage for small business owners and community facility operators. Jiuan Generator provides an 18-month or 2,000-hour warranty on each CDW88KVA unit.

Technical Specifications

5 Core Competitive Advantages

1. 17.5:1 Compression + 1700kg Compact Footprint — Reliable Start in Tropical Commercial Premises
The 64KW compact prime generator CDW88KVA WP4.1D80E200 engine's 17.5:1 compression ratio supports reliable start in un-air-conditioned generator rooms at tropical and subtropical retail and commercial sites. The 1700kg / 2600×1100×1600mm enclosure fits basement plant rooms and small commercial building generator alcoves where standard larger generators cannot be accommodated.

2. ≤205g/kWh Electronic Injection — Controlled Operating Cost During Daily Load-shedding
The Weichai WP4.1D80E200 genset electronic injection system holds ≤205g/kWh specific fuel consumption across the prime load range — containing daily running cost for small commercial premises operating the generator multiple hours per day during load-shedding or frequent grid interruptions common in Africa, Southeast Asia, and the Middle East.

3. 9.4% Standby Headroom + ATS 3-6 Seconds — Cold Room Protection at Grid Failure
The 88KVA Weichai diesel generator CDW88KVA 70KW/88KVA standby rating provides 9.4% power headroom above the 64KW prime. ATS auto-start transfers load within 3-6 seconds of grid loss — maintaining refrigeration compressor continuity at supermarkets and cold-chain facilities during power outages and protecting temperature-sensitive stock.

4. 8-Hour Tank + ≤72dB(A) — Overnight Coverage at Unmanned Retail Premises
The 88KVA retail backup power unit CDW88KVA integrated fuel tank covers 8 hours of continuous prime operation — a full overnight period without manual refueling at unmanned retail outlets, cold storage facilities, and food distribution centres. The ≤72dB(A) at 7m silent canopy meets commercial zone noise limits for basement generator room installation.

5. 32% Lower Procurement Cost — Budget Advantage for Small Business Owners
The Weichai WP4 series generator CDW88KVA uses WP4.1 series spare parts available through Weichai distributors across Africa, Middle East, and Southeast Asia — at approximately 32% lower cost than equivalent Perkins or Cummins units. This lowers both initial acquisition cost and long-term maintenance expenditure for small business owners and community operators in price-sensitive markets.

Application Scenarios

The CDW88KVA 64KW compact prime generator serves the following prime and standby power applications:

• Supermarkets and cold-chain retail — ATS standby for refrigeration compressors and food storage cold rooms
• Restaurants and food service outlets — prime power for kitchen equipment and refrigeration
• Community clinics and pharmacies — standby for medical refrigeration and essential lighting
• Small offices and retail shops — ATS emergency standby for POS systems, lighting, and security
• Off-grid rural facilities — prime power for schools, health posts, and community buildings

OEM Customization Service

Jiuan Generator provides OEM configuration for the CDW88KVA Weichai WP4.1D80E200 genset. Available options include ultra-silent canopy (≤64dB@7m), DSE7320 or SmartGen controller with RS-485/MODBUS, ATS automatic transfer cabinet, 4G IoT remote monitoring module, parallel control cabinet for multi-unit operation, and extended 800-2500L external fuel tank. Custom RAL color canopy and customer brand labelling are supported. All units pass full-load factory burn-in testing before dispatch.

FAQ

Q: What is the prime rating of the CDW88KVA and who is it designed for?
A: The 88KVA Weichai diesel generator CDW88KVA is rated 64KW/80KVA ISO8528 PRP prime — certified for continuous operation with no annual hour restriction. The 70KW/88KVA standby covers emergency grid-backup with restricted annual hours. It is designed for supermarkets, food retail outlets, small offices, clinics, and community commercial premises requiring compact and cost-effective backup power.

Q: Why is the 3-6 second ATS auto-start important for supermarket cold chain protection?
A: The 88KVA retail backup power unit CDW88KVA ATS auto-start transfers load within 3-6 seconds of grid loss — limiting the period during which cold room refrigeration compressors are de-energised. This protects food safety temperature margins at unmanned supermarkets and cold storage facilities during overnight grid outages. Manual start procedures introduce delays that ATS fully avoids.

Q: How does the CDW88KVA compare with equivalent Perkins or Cummins 80KVA units?
A: The Weichai WP4 series generator CDW88KVA typically carries approximately 32% lower initial procurement cost versus equivalent Perkins or Cummins units. WP4.1 parts are available through in-country Weichai distributors across Africa, Middle East, and Southeast Asia — reducing maintenance lead time and cost, making the CDW88KVA the preferred choice for small business operators in budget-sensitive markets.
