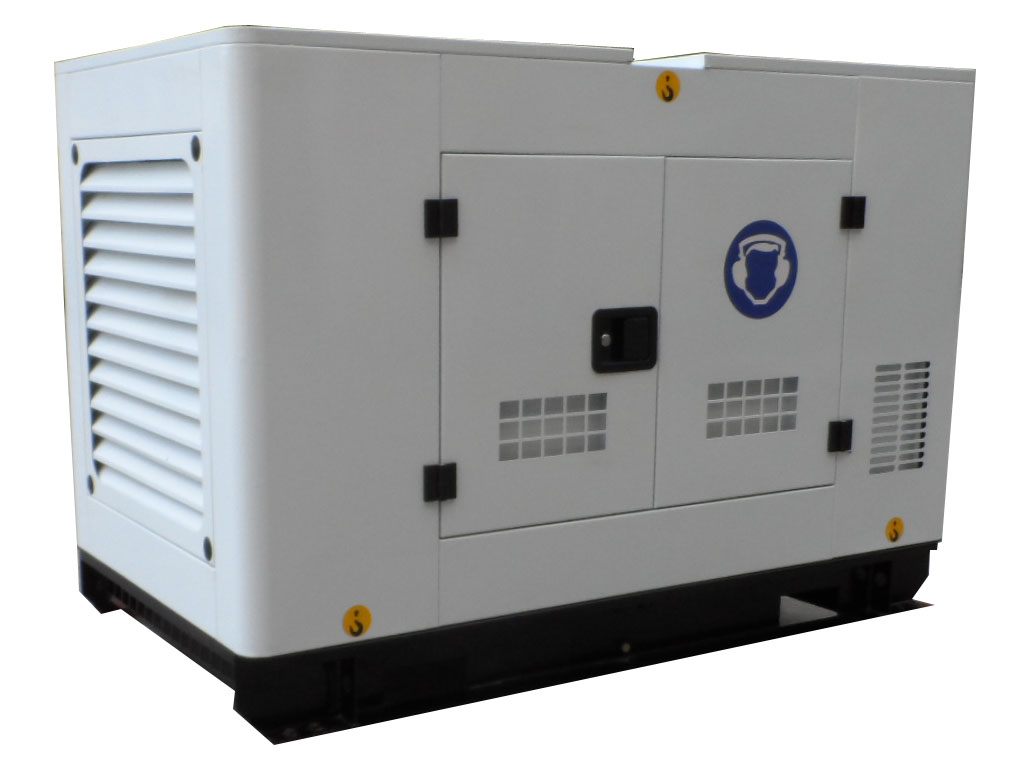

Perkins Engine Generator 12KW/15KVA CD-P12KW/15KVA

Diesel Generator Set
1. Gen.set Power 12KW/15KVA
2. Engine: perkins
3. Altermator: Stamford
4. Controller : Smartgen
5. Canopy: silent;super silent or open frame
Quantity:
  • perkins
  • CD-P12KW/15KVA
  • 属性值
PERKINS Diesel Generator Set – Model CD-P15KVA


MODEL CD-P12KW/15KVA
Powered by PERKINS Engine
Standby Power (50HZ) 12KW/15KVA
Prime Power (50HZ) 11KW/14KVA
Engine Model Original Uk Perkins 403D-15G
Engine Prime Power (50HZ) 12.2KW
Engine Standby Power (50HZ) 13.5KW
Speed 1500rpm
Cylinders 3L
Bore x Stroke 84 x 90 mm
Fuel Consumption(100% loading)        3.6 L/H
Displacement (L) 1.496
Compression Ratio 22.5:1
Cooling Method Water - cooled
Starting Method 12V DC electrical start
Alternator Model LEADTECH OR STAMFORD 164C
Voltage 220V/380V
Electric Current 22A
Power Factor 0.8
Phase 3-phases
Brush/Brushless Brushless
Insulation Grade H
Protection Grade IP23
G.W 600 KGS
Overall Size 1680x900x1100 MM SILENT
2100*900*1200MM SUPER SILENT
20FT 12 PCS
OPTIONAL ATS(auto transfer switch)
  Auto Battery Charger
  AMF (auto mains failure)
  SUPER SILENT
