This Standby 1250KVA Cummins KTA38-G4 diesel generator set delivers 900KW/1125KVA prime continuous power and 1000KW/1250KVA emergency standby power, powered by a genuine CCEC Chongqing Cummins KTA38-G4 V12 dedicated generator engine. As a high-capacity 1250KVA Cummins standby genset, it is matched with a Class H insulation all-copper brushless synchronous alternator and a Deepsea intelligent control panel. As a flagship heavy-duty industrial diesel genset of the Cummins KTA38 series, this robust 1250KVA diesel generator features the reliable Cummins KTA38-G4 engine and is fully certified under ISO8528 and GB/T2820 international power rating standards.

Designed mainly for industrial emergency backup power, this durable backup power unit can run stably under 80% constant load for long-term prime service. Upon mains failure, the 1250KVA standby power generator fires up within 3~8 seconds and supports a short-time 10% overload output to safeguard core equipment.

This high-performance 1250KVA diesel generator is widely deployed in large-scale IDC data centers, grade-A hospitals, metallurgical mines, petrochemical refineries, commercial plazas, global oilfield camps, and large infrastructure projects. Benefiting from the robust 37.8L large-displacement design of the KTA38 series engine, this premium 1250KVA Cummins standby genset features superior transient load capacity, an ultra-long overhaul cycle, and globally available spare parts. Consequently, this dependable industrial diesel genset ranks as the top tender-choice backup power unit across domestic and overseas industrial markets, ensuring maximum reliability as a critical standby power generator.

Genuine CCEC KTA38-G4 Engine with Abundant Power Reserve

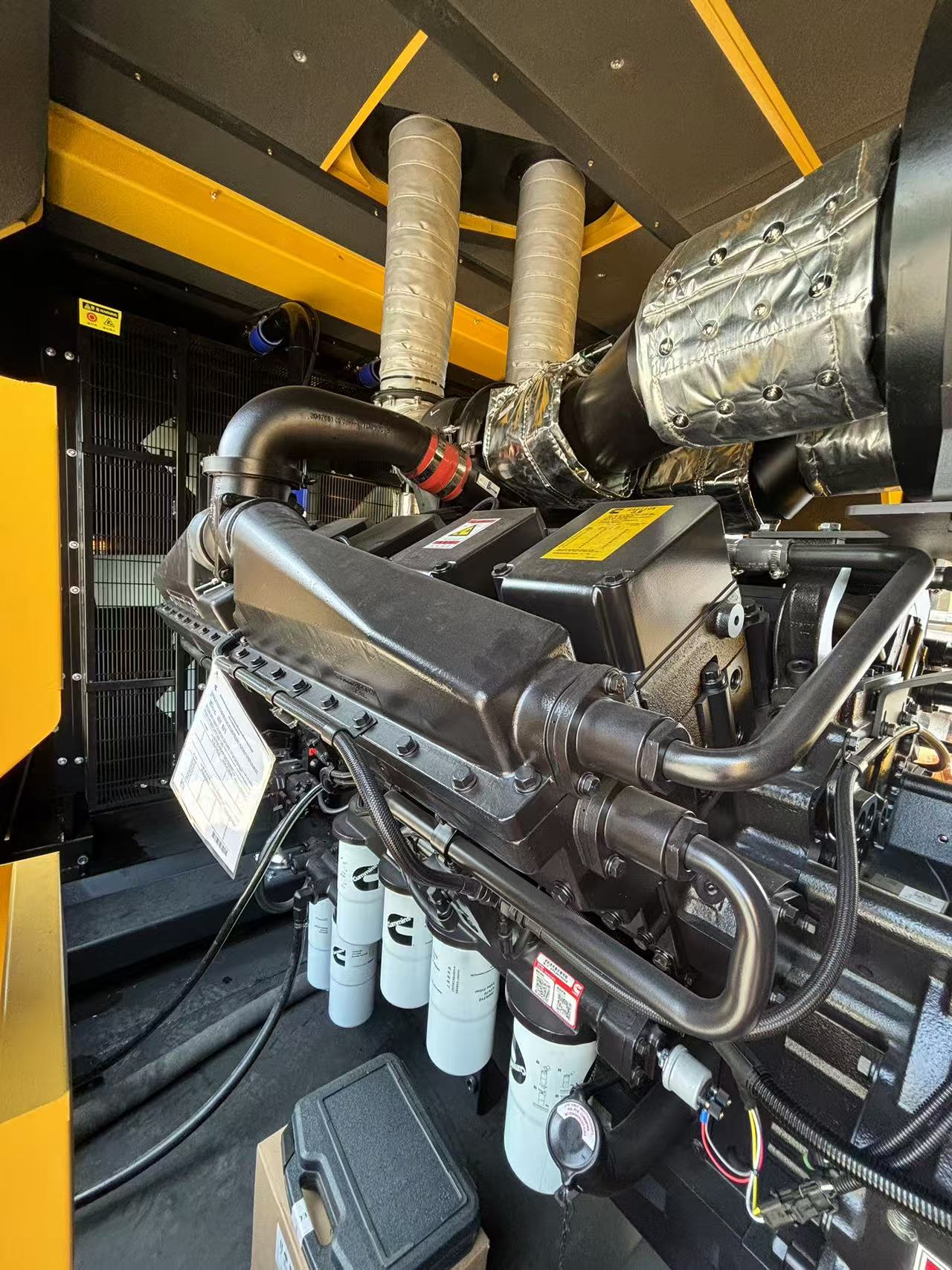

The power core is authentic CCEC KTA38-G4 diesel engine with 60° V-type 12-cylinder four-stroke layout, total displacement 37.8L, bore & stroke 159mm×159mm, fitted with Holset turbocharger plus air-to-air intercooler and original Cummins PT-EFC electronic fuel injection system, rated speed 1500RPM for standard 50Hz grid. Sufficient power margin guarantees full 1250KVA standby output without voltage/frequency drop under sudden full load spike. Wet replaceable cylinder liner and optimized combustion chamber realize outstanding high-temperature & abrasion resistance; with customized high-altitude kit, the engine keeps rated power output at 3500m elevation or 50℃ ambient temperature. Global Cummins aftersales network ensures universal spare parts supply, overhaul lifespan exceeds 20000 working hours to cut long-term downtime loss.

Dual Rated Power for Prime & Standby Dual Working Mode

Prime Rating 1125KVA(900KW): Complies with PRP continuous power specification, runs steadily under 80% normal load for daily auxiliary factory power supply; Standby Rating 1250KVA(1000KW): ESP emergency standby rating only for blackout backup, permits short-term 10% overload to counter large motor starting inrush current, avoiding production halt, medical device shutdown and server crash from unexpected power cut. Standard 400/230V three-phase four-wire output at PF0.8 lagging, customized 60Hz/440V version available to meet grid requirement of Middle East, Africa and Southeast Asia countries.

Low Fuel Consumption to Reduce Full-Cycle Operation Expense

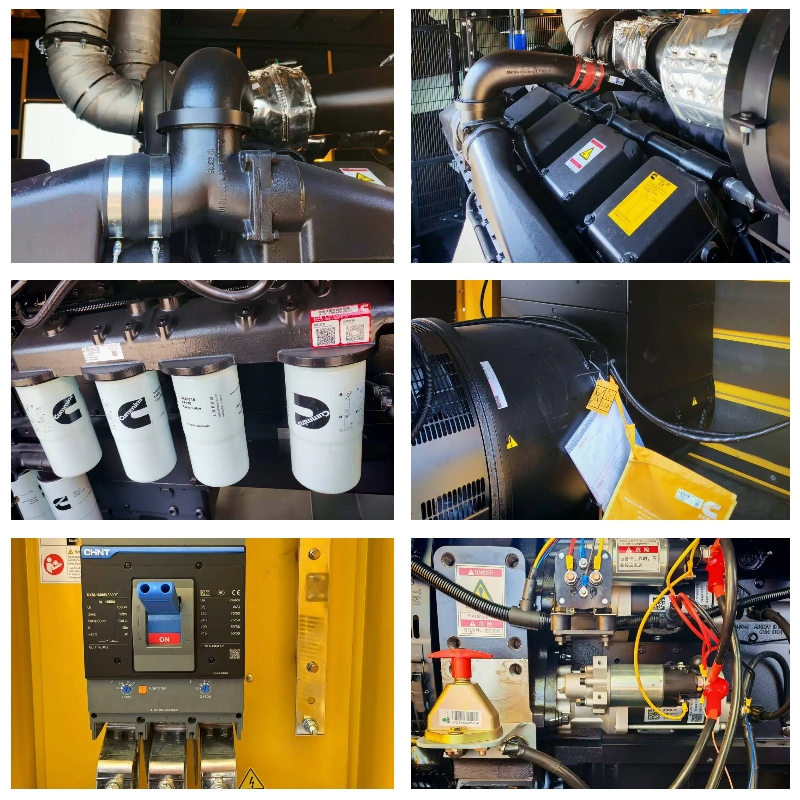

Optimized air intake and fuel injection design of KTA38-G4 cuts full-load specific fuel consumption down to 208g/kW·h, 7% more fuel-efficient than peer domestic gensets. Integrated large-capacity base fuel tank supports over 6.5 continuous working hours under full load, minimizing labor cost from frequent refueling. Equipped with genuine Fleetguard triple filter (air/fuel/lube oil) to block impurities effectively and extend filter replacement cycle, lowering regular spare part expenditure for long-term standby application.

Premium All-Copper Brushless Alternator Delivers Clean Safe Power

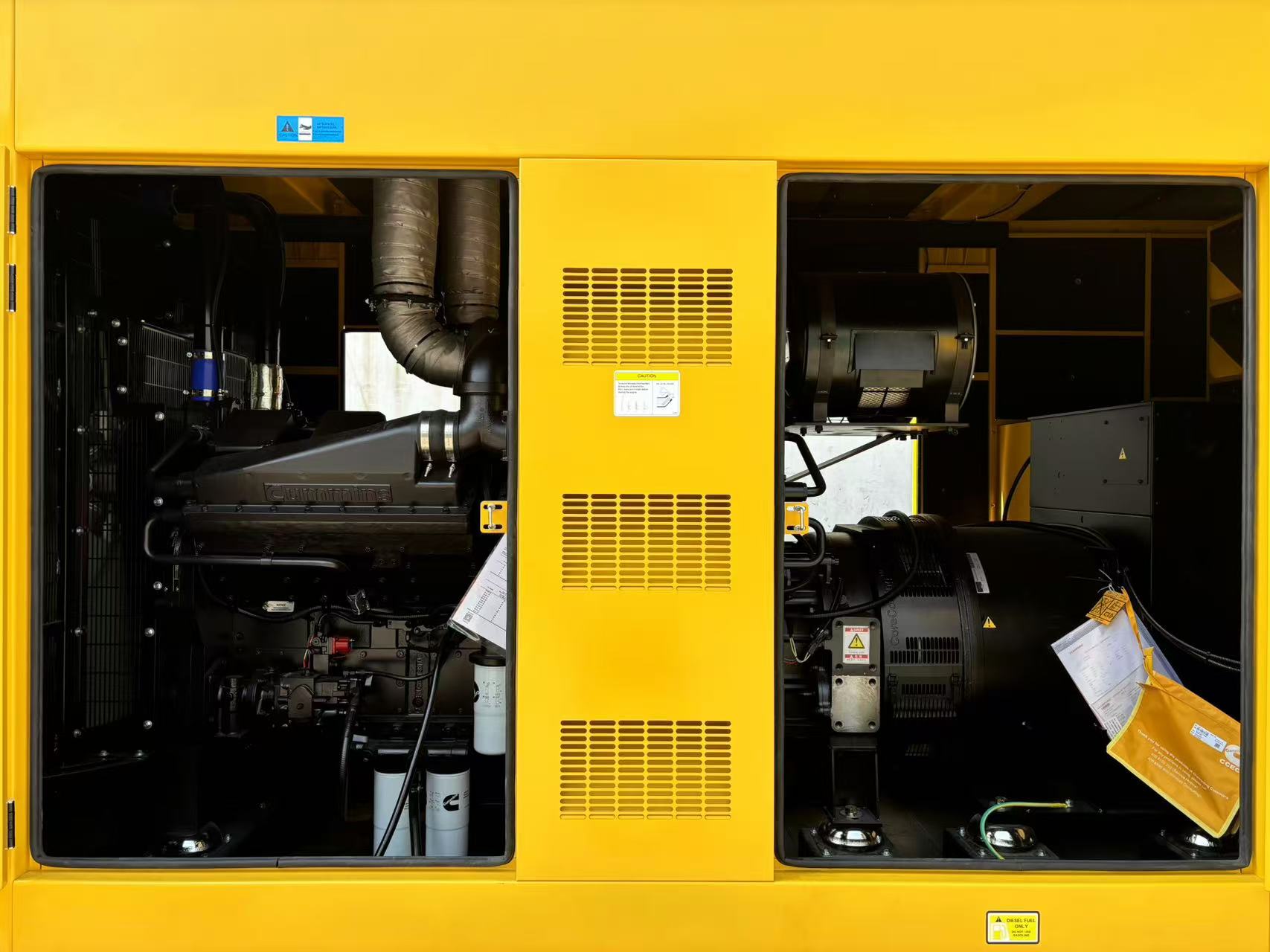

Industrial single-bearing brushless self-excited synchronous alternator adopts full-copper winding with vacuum impregnation treatment, Class H insulation & IP23 protection grade, outstanding anti-moisture & anti-salt-spray performance for coastal petrochemical plants and open-pit mines. Voltage steady regulation ≤±1%, THD＜3% ensures smooth clean power to protect sensitive equipment including server, medical MRI and industrial PLC. Standard molded case circuit breaker integrates five safety protections: overload, short-circuit, under-voltage, overspeed and high coolant temp to prevent unexpected unit burnout.

Intelligent Auto Control for 24H Unattended Automatic Switchover

Factory-mounted Deepsea DSE7320 LCD controller (ComAp/Smartgen optional) with bilingual English-Chinese display, real-time monitoring of voltage, current, frequency, coolant/oil temperature, lube pressure, total runtime and fault codes. Built-in ATS linkage program enables auto start on mains loss, delayed auto shutdown after power recovery and fault alarm stop. Optional remote cloud monitoring module allows remote start-stop & data checking via mobile phone or PC, perfect for unmanned power station and data center backup matching.

Multiple Customized Structure for Full-Range Environment Compatibility

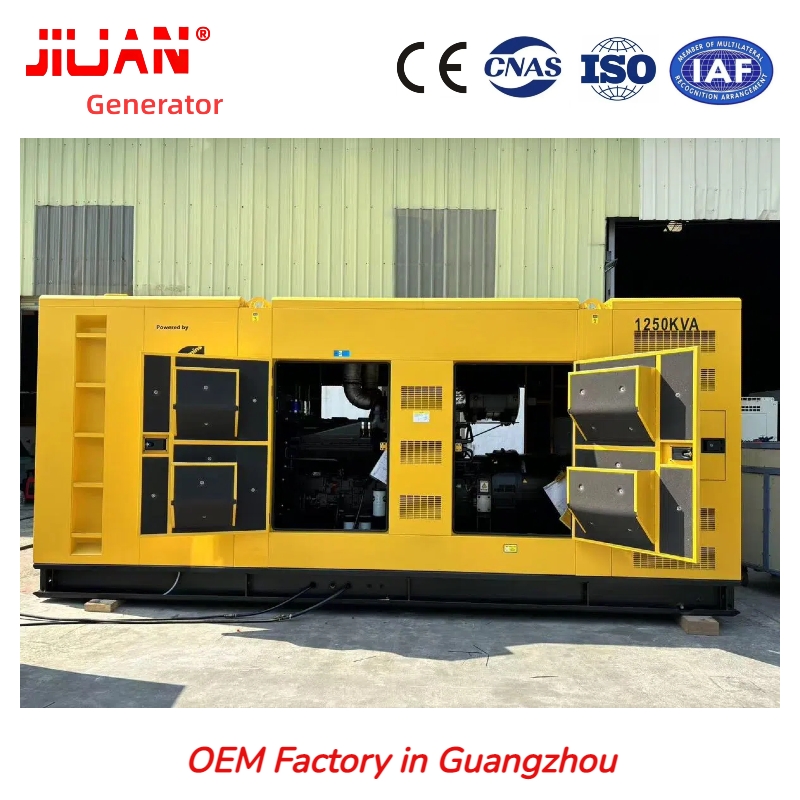

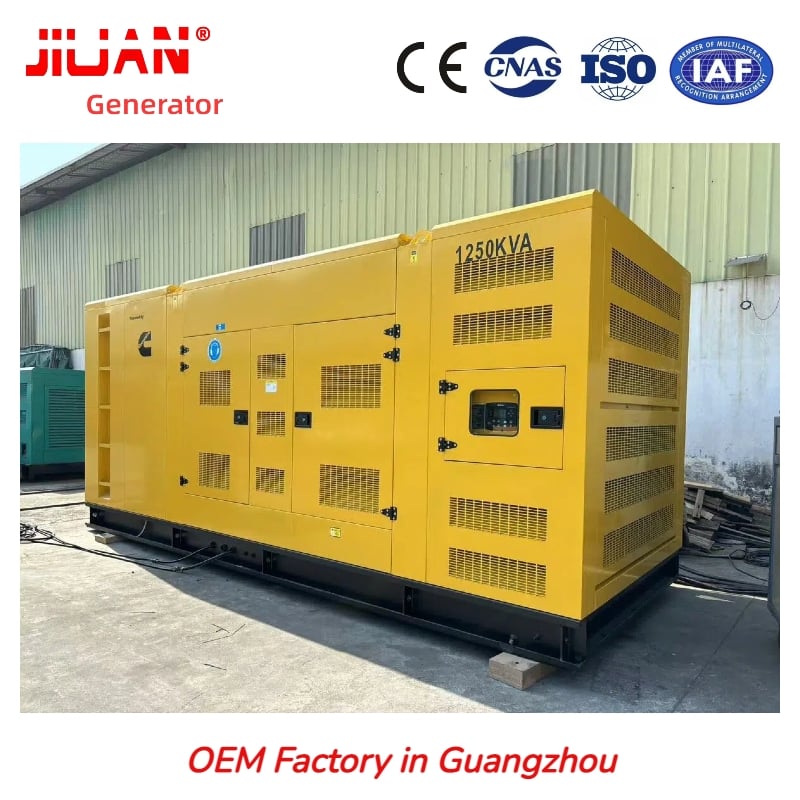

Heavy-duty thick steel welded skid with integrated compound vibration dampers to eliminate strong runtime vibration; four optional configurations: open frame, silent canopy, standard containerized type and trailer mobile unit. Silent version noise ≤76dB(A)@7m to satisfy urban hospital & commercial area noise limit; operational ambient covers -25℃~+50℃, cold-region optional water jacket heater and heavy-duty dust-proof air filter for high-dust mining sites, no extra structural modification required for global installation.

Model：Standby 1250KVA / Prime 1125KVA-KTA38-G4 Standby Power：1250KVA/1000KW｜Prime Power：1125KVA/900KW Rated Electrical：400/230V,3P4W,50Hz(60Hz Optional),PF0.8 Lag,1500RPM Engine: CCEC Cummins KTA38-G4｜Layout:V12 Four-stroke｜Displacement:37.8L Bore×Stroke:159mm×159mm｜Aspiration:Turbo+Air-Air Intercooler｜Fuel System:Cummins PT-EFC Starting:24V DC Electric Start｜Governor:Electronic｜Engine Oil:140L｜Coolant:218.5L Alternator:All-Copper Brushless Synchronous｜Insulation:H Class｜IP Grade:IP23 Controller:DSE7320(ATS Cabinet & Remote Monitor Optional)

The 1250KVA Standby Cummins KTA38-G4 diesel genset is widely applied in IDC data center, grade-A hospital emergency power, open-pit non-ferrous metal mine, petrochemical refinery, large shopping mall complex, rail transit auxiliary power, overseas oilfield drilling camp, municipal emergency power reserve and heavy machinery factory backup supply, becoming preferred standby power solution for worldwide engineering bidding projects.
