Cummins Diesel Generator 1000KVA 800KW CD-C1000KVA/800KW

1000KVA Cummins Diesel Generator Set
1. Gen.set Power 1000KVA 800KW
2. Alternator Stamford
3. Controller Smartgen &Deep sea
4. Canopy Silent; Super Silent or open frame
Quantity:
  • CD-C800KW /1000KVA
  • Cummins ( Diesel Generator )
  • CD-C1000KVA/800KW
  • Cummins engine KTA38-G5
  • Auto start /stop /auto transfer
  • Container type &Silent type & Open& Super silent
  • Original Stamford /Leroy Somer/ Marathon
  • 18 month or 15 hours since on board
  • 25 Days
  • Any color

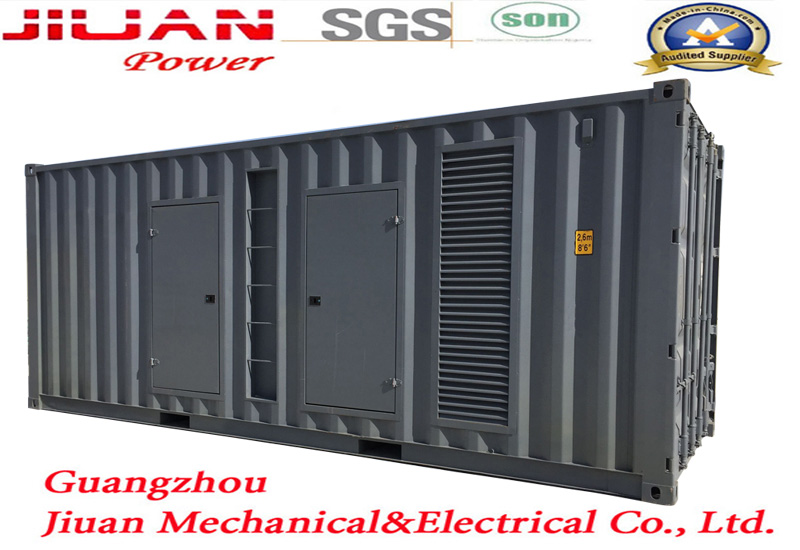

1.Picture of Generator

gen set 1000kva

2.Description of Generator

CUMMINS DIESEL ENGINE GENERATO R
Cummins D iesel Generating Set    -  Model CD-C 800KW/1000KVA Prime Power
MODEL CD-C800KW/1000KVA
Powered by Cummins Engine
Prime Power (50HZ) 800KW/1000KVA
Standby Power (50HZ) 880kw/1100KVA
Power Factor 0.8 Lagging
Phase Wires 3-phases 4-Wires
Start Model Electric
Protection Low oil-pressure, High water temperature,
Over-speed, Over-current
Engine Model CCEC Cummins KTA38-G5 4-Cycle
Cylinders 12
Cylinder Arrangement V
Bore x Stroke(mm) 159X 159
Compression Ratio 13.9:1
Speed 1500rpm
Cooling Method Water – cooled
Starting Method 24V DC electrical start
Full Load Diesel Consumption (L/H) 190
Engine Displacement (L) 37.8
Inspiration  (L) Turbocharged Intercooled
Lube Volume  (L) 135
Coolant Volume  (L) 258
Noise (Db) 80
Alternator Model Newage Stamford LVI634E or Leadtech LTG404F
Alternator Power 800KW/1000KVA Brushles with AVR
Voltage 380/220V,400/230V,415/240V,220/127V
Protection IP23
Voltage Regulation ±4%
Insulation Class H
Voltage Control AVR
Net Weigh (KGS) 6700
Dimensions (L x W x H) mm 4500*1800*1900
Controller Smartgen 6110 or Deepsea 7320
Standard Muffler * 2PCS

Battery 120A * 2 PCS
Optional ATS (auto transfer switch)

AMF(auto mains failure)

Containerized
3.Production Line of Generator

generator products 02 拷贝

Our  50HZ /60HZ  Diesel Generator Set Production Range is as follows:
1. Water Cooled Diesel Generator Set

*Cummins Series: 25kva - 1500kva
*Perkins (UK) Series: 10kva - 2250kva
*Perkins Lovol Series: 25kva - 150kva
*Deutz (water cooled ) Series: 25kva - 150kva
*Mitsubishi Series:6.5kva -2420kva
*Doosan Series :60kva-670kva
*Fawde Series:15kva -350kva
*Kubota (made in Japan )Series :10kva -30kva
*Deutz (Air cooled )Series :15kva -125kva
*Chinese Yangdong Series: 10kva - 50kva
*Chinese Weichai Series (normal): 10kva - 150kva

2.Marine Diesel Generator Set
Cummins Marine Generator Series :40kva -200kva
Weichai Marine Generator Series:15KVA -37.5KVA

3.Small Diesel Generator Set :3KVA-7KVA

4.Small Gasoline generator set :2.5KVA -7.5KVA

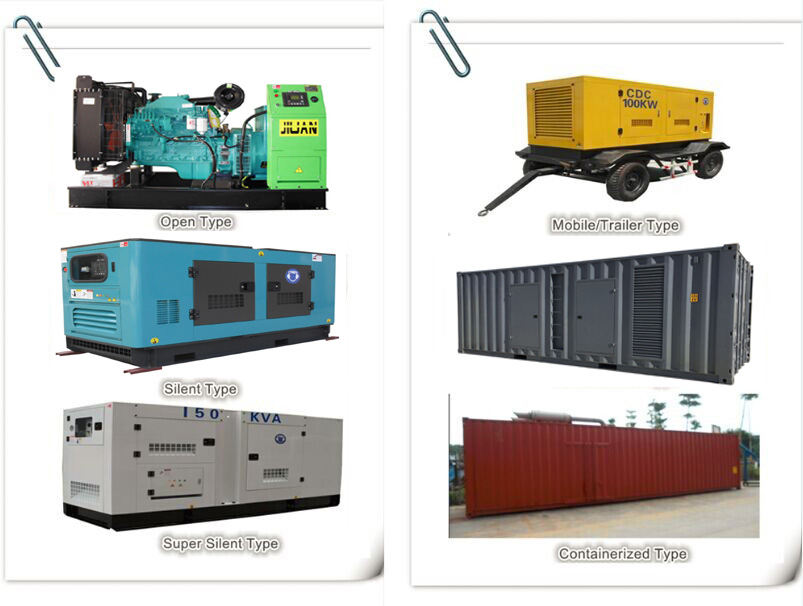

5.  Canopy for Choice
1 . Silent type (75- 80 dB(A) at 3  meters)
2.  Super Silent type (65-70 dB(A) at 1  meters )
3.   Open type

4.  Trailer type (mobile)

5.   Container Type

6. Parallel System

4.Featrues of Gen.set

Features of Gen.set with Cummins Engine
1.12 months world-wide warranty service
2. Short delivery time,as we always have Cummins engine in stock
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Perfect after-sales service network
5. Both 50HZ @1500rpm and 60HZ@1800rpm are available
6. Rigorous test including 50% load,100% load and 110% load
7. Stronger power with reasonable price
8. International brand feel free to use

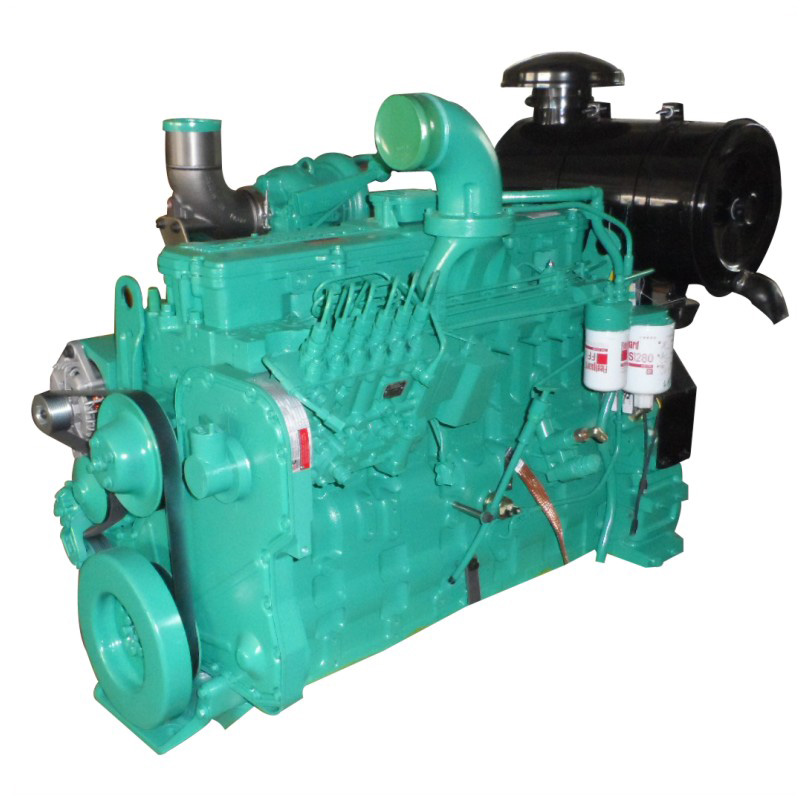

CUMMINS ENGINE (2)

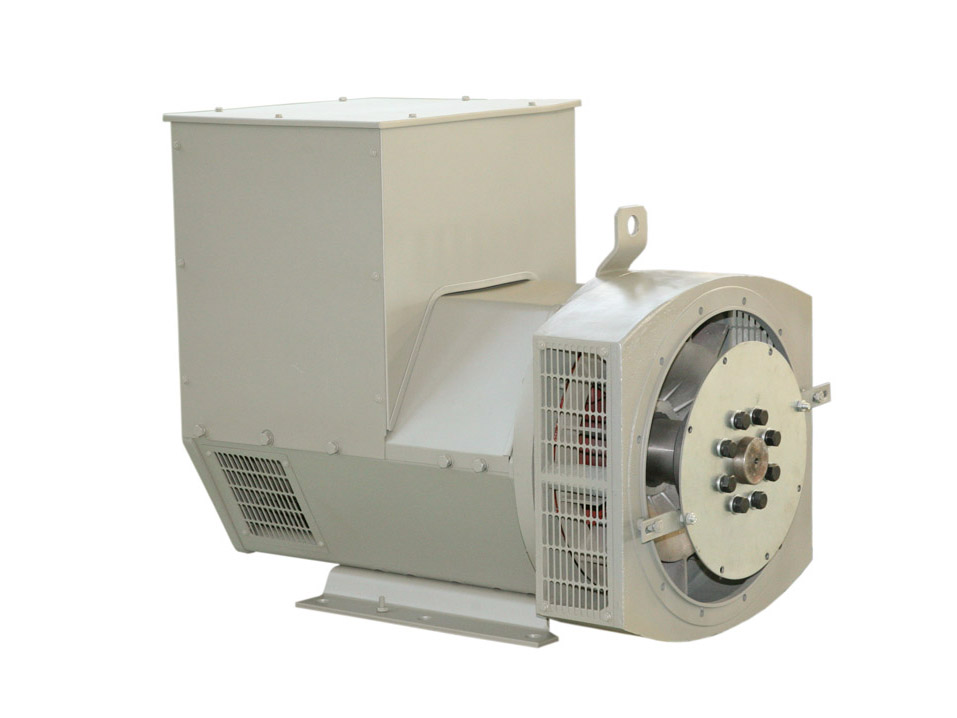

Alternator Features:
1. World famous brand AC alternator: Stamford,Leroy somer, Marathon,Faraday,copy Stamford
2. Brush less with AVR
3. Brush less 4 poles,rotation magnet
4. AVR Voltage regulation less than ± 1%,AVR self-regulated
5. Protection class IP23
6. Insulation system is class H
silent electric power generator set 100kva to 250kva dynamo alternator

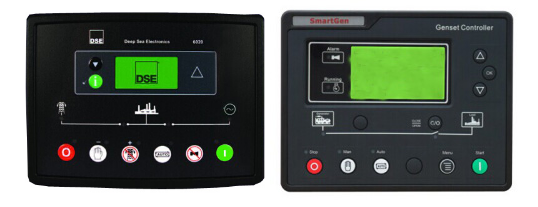

Control System Features:
Standard Smartgen 6120 or Deepsea DSE6020
Language Display: English;Spanish;Russian;Chinese
Data Display: Power,Voltage,Current,Frequecny,Speed,Oil pressure,Water Temperature,Fuel Level
Protection (auto alarm system): High voltage;Low voltage;High Speed;Low Speed;Over Current;Lose Phase;Low oil pressure;High water temperature
Functions:  Auto start;Auto stop;ATS(auto transfer system);AMF(auto mains failure system)
d

5.Trade Terms Of generator

Generator Warranty 1800 hours or 1 year subject to the earlier one.
Delivery Items FOB,CNF,CIF,EXW,Delivery Guangzhou
Delivery Time 15-20 days after receiving advanced payment.
Generator MOQ 1PCS
Package PE Film+Pearl Wool+Iron Frame (standard export packing)
Certificate SGS;Cummins Authorized Factory;TUV;Son cap
Loading Port Guangzhou,Shenzhen,Shanghai
Payment T/T& Cash & Western Union
       Please give detail needs in your inquiry, so that we can make power solutions for you.

After-sales Service
Warranty : 1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number:  0086 18520604611
Contact Sales Manager
24 hours after-sales contact number:  0086 15817087202


6.Introduction of Company

Introduction of GUANGZHOU JIUAN MECHANICAL AND ELECTRICAL CO.,LIMITED
Business Type:  Professional  OEM Manufacturer  of diesel generator
Location: Guangzhou,China (Mainland)
Year Established: 2008
Registration No.: 440111000040106
Main Products:
Professional diesel generator OEM factory.

Guangzhou Jiuan Mechanical & Electrical Co., Ltd.is located in Baiyun District Guangzhou city
Which is 30 minutes from Guangzhou Baiyun airport By car .come-and-go is very convenient.

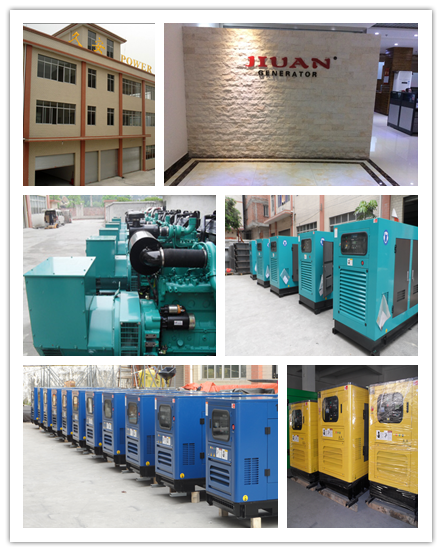

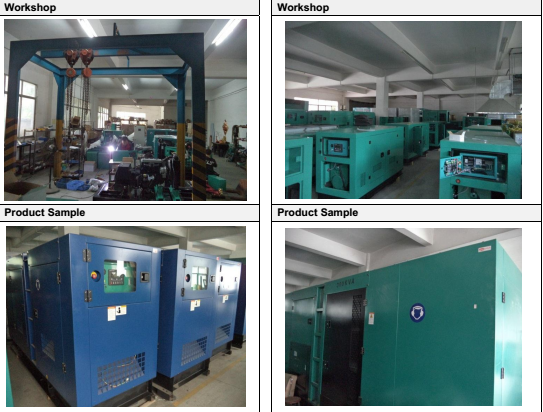

company view

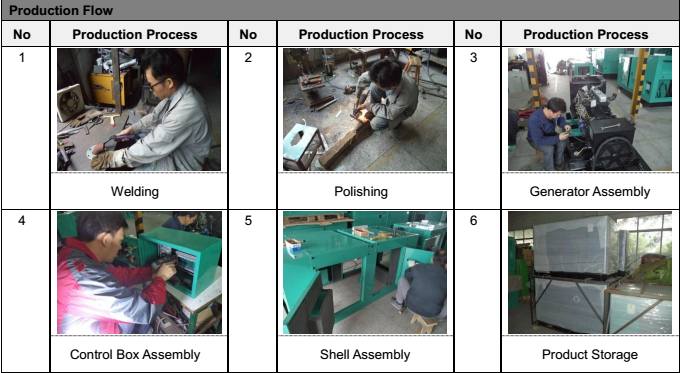

7.Generator Production Flow

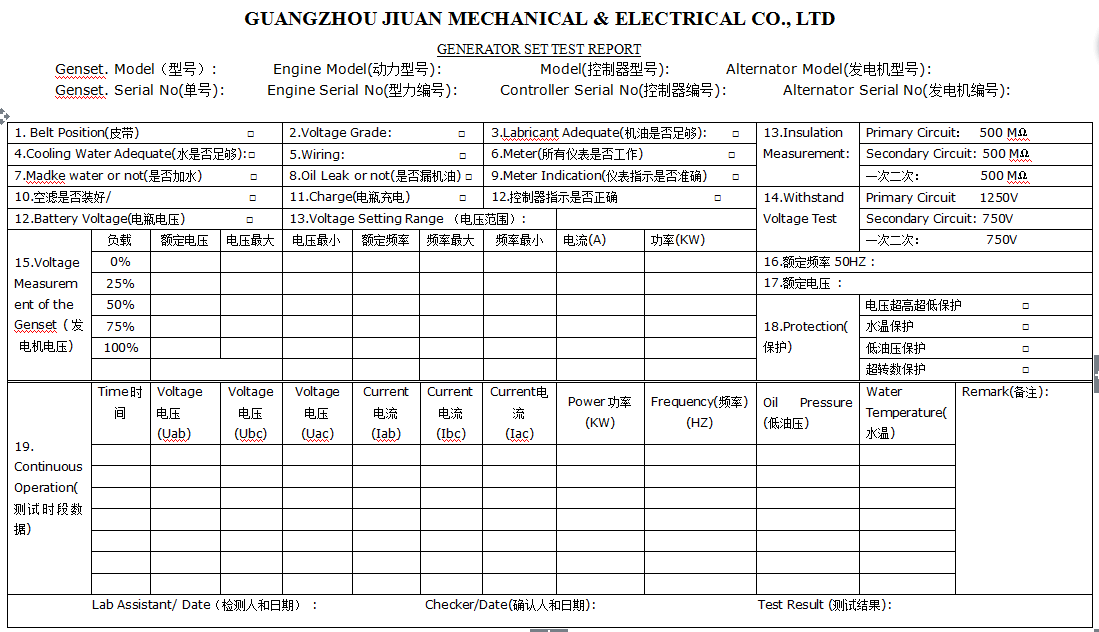

8.JIUAN Genset Testing Items


1. Loading testing:all qualified generator sets are subjected to a comprehensive performance test which includes 0% load,25% load, 50% load, 100% load and 110% load to check verify that all control systems, alarm and shut-down protection.
2. Parts fault testing.
3. Fuel tank pressure testing.
4. Bolt tightening torque testing.
5. Voltage bearing and insulation testing
6. Noise level testing
QQ图片20170630135628

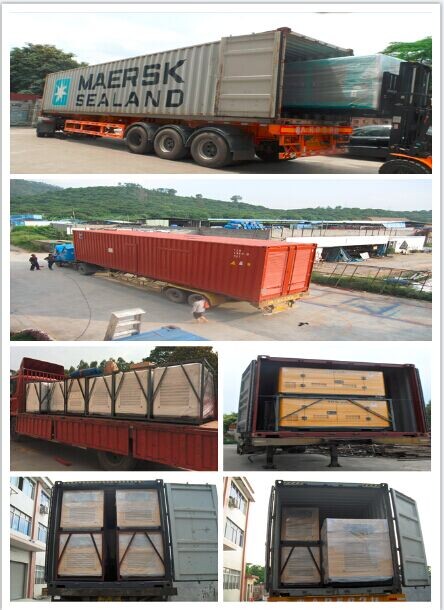

9.Generator Packing and shipping
packing and shipping

10.JIUAN Generator Certificated


11.Why Choose JIUAN Generator ?
Good Reasons Why You Choose JIUAN Generator:
1.Professional Generator OEM factory in Guangzhou.
2.14 years experience in generator and exporting.
3.High quality products at affordable prices.
4.Products lines verified by professional inspectors.
5. Place orders safety.
6. All engines and alternators are brand new and original - Credible.
7. Controller Deepsea or Smartgen -BIG Brand.
8. Air Breaker ABB CHNT Schneider ASK - Safety.
9. 1% parts free are available for your order.
