The CDP110KVA is Jiuan Generator's 110KVA Perkins diesel generator for commercial prime power. Powered by the Perkins 1104C-44TAG2 — a four-cylinder, 4.4L, turbocharged and air-to-air aftercooled diesel at 18.2:1 compression — the unit delivers 80KW/100KVA ISO8528 PRP prime and 88KW/110KVA standby at 1500 RPM (50Hz). Compact 1700kg / 2600×1100×1600mm footprint for plant room installation. Fuel consumption: 26.9 L/h at full prime load; 260L tank for 8-10h autonomy. EU Stage II / EPA Tier 2; DSE7320 or AMF25 controller; silent canopy ≤75dB(A) at 7m; 18-month warranty.
This generator set features 250KVA prime power and 275KVA standby power, equipped with an original Perkins 1206A-E70TTAG3 engine with strong power, stable operation and low fuel consumption. Adopting turbocharged technology and high-quality brushless synchronous alternator, it provides accurate and stable voltage output. Fitted with an intelligent control system, the unit supports multiple safety protections including overload, short circuit, high water temperature and low oil pressure. Durable and easy to maintain, it is widely used in industrial plants, office buildings, shopping malls, hospitals, residential communities and engineering projects for prime or emergency standby power supply.
The CDP50KVA is Jiuan Generator's 50KVA Perkins diesel generator for agricultural and rural agri-business prime power. Powered by the Perkins 1103A-33TG1 — a three-cylinder, 3.3L turbocharged diesel with 17.25:1 compression ratio and -20°C cold start — the unit delivers 36KW/45KVA ISO8528 PRP prime and 40KW/50KVA standby. Compact 1200kg / 2250×1000mm footprint for farm-site delivery. Mechanical governor for pump-circuit load cycling. EU Stage II / EPA Tier 2; DSE or SmartGen controller; ≤75dB(A) at 7m; 18-month warranty.
The CDP110KVA is Jiuan Generator's 110KVA Perkins diesel generator for telecom and ICT infrastructure emergency standby. Powered by the Perkins 1104C-44TAG2 — a four-cylinder, 4.4L turbocharged and air-to-air intercooled diesel with 18.2:1 compression ratio — the unit delivers 88KW/110KVA ISO8528 ESP standby and 80KW/100KVA prime. DSE7320 or ComAp AMF25 controller with RS-485/MODBUS; AMF auto-start and ATS transfer within 15 seconds; THD <5% for telecom rectifiers; 260L tank (8-10h autonomy); 1700kg / 2600×1100mm; EU Stage II / EPA Tier 2; 18-month warranty.
This is a 500KVA standby power super silent diesel generator set, fitted with original Perkins 2506C-E15TAG1 engine with strong power and stable performance. Built with fully enclosed silent canopy, it achieves outstanding noise reduction. Adopting water cooling and turbocharged intercooling system, it features low fuel consumption and long service life. Equipped with high-quality brushless alternator for steady voltage output, as well as intelligent control system with comprehensive protections against low oil pressure, high water temperature, overload and short circuit. Compact layout and easy maintenance. It is ideal as emergency standby power for residential communities, hospitals, shopping malls and office buildings where low noise is required.
The CDP350KVA is Jiuan Generator's 350KVA Perkins diesel generator for quarry, aggregate, and large industrial prime power. Powered by the Perkins 2206C-E13TAG2 — a six-cylinder, 12.5L EUI diesel with G3-class electronic governing (±0.25% steady-state frequency) and 16.3:1 compression ratio — the unit delivers 280KW/350KVA ISO8528 PRP prime and 320KW/400KVA standby. 4300×1600×2250mm / 3500kg; ≤75dB(A) at 7m; 10-12h full prime tank autonomy; EU Stage II / EPA Tier 2; 18-month warranty.
This 400KVA diesel generator set is equipped with original Perkins 2206C-E13TAG2 engine, featuring powerful performance and reliable operation. Adopting water cooling and turbocharged intercooling technology, it has low fuel consumption and excellent durability. Matched with high-quality brushless synchronous alternator for stable voltage output, it is fitted with intelligent control system with multiple protection functions against overload, short circuit, high water temperature and low oil pressure. Compliant with international emission standards, the unit is compact in structure and easy for maintenance. It is widely used as prime or emergency standby power for factories, commercial buildings and infrastructure projects.
The 500KVA Perkins 2506C-E15TAG2 diesel generator set is equipped with an original imported Perkins 6-cylinder electronically controlled engine with turbocharging and air-to-air intercooling technology. It delivers a prime power of 400kW and standby power of 440kW, complying with 50Hz/400V three-phase industrial power supply standards. Fitted with a high-quality synchronous alternator and intelligent control system, it provides multiple protection functions against overload, overheating and low oil pressure, as well as automatic start-stop and remote monitoring. With stable operation, low failure rate and convenient maintenance, it is widely used as prime or emergency standby power for industrial plants, commercial buildings, data centers, hospitals and infrastructure projects.
400kVA silent diesel genset equipped with Cummins 6ZTAA13-G2 inline 6-cylinder engine, 50Hz/400V, PF0.8, ISO8528 compliant. Turbo aftercooled & electronic fuel injection, matched with IP23 H-class brushless alternator. Soundproof canopy with cooling and damping, low noise & rainproof for factory and building regular & emergency power.

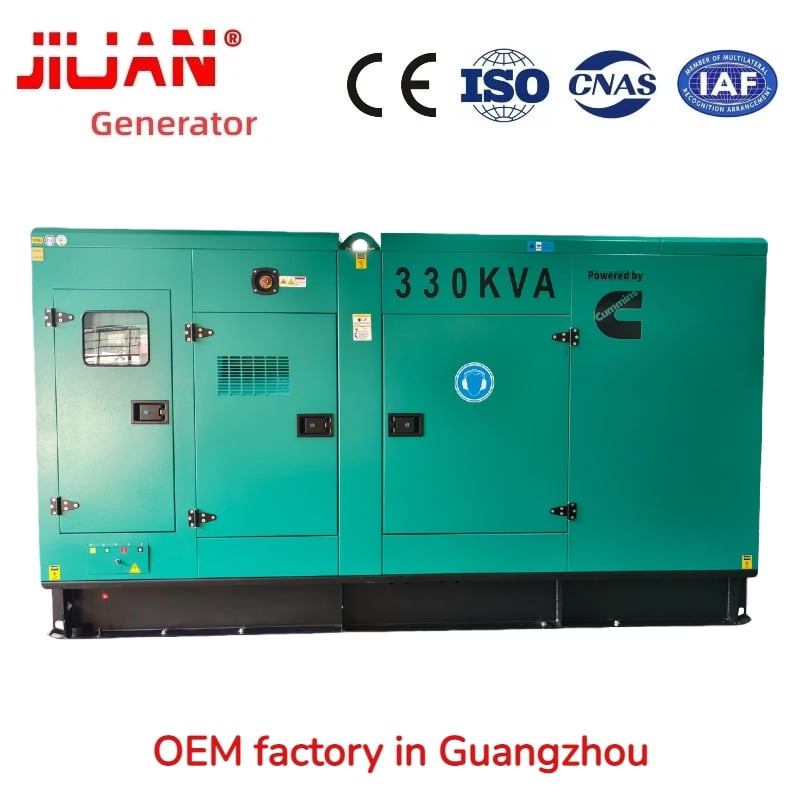

Prime 320kVA, standby 330kVA silent genset equipped with Cummins 6LTAA9.5-G1 engine, 50Hz, 3-phase 400V, PF0.8, ISO8528 compliant. Inline 6-cylinder turbo aftercooled engine matches IP23 H-class brushless alternator. Fitted with rainproof soundproof canopy with built-in cooling and damping parts, low noise for regular and backup power of factories, buildings and shopping malls.
This genset delivers 438kVA prime / 500kVA standby power with genuine Dongfeng Cummins 6ZTAA13-G2 engine (50Hz, 400V, PF0.8, ISO8528). The 6-cylinder turbo aftercooled engine uses electronic governing for stable, fuel-efficient operation. Paired with H-class IP23 brushless alternator, it comes with smart controller, base damping, radiator and muffler. Ideal for prime or backup power in factories, buildings, mines and data centers.
